HMMWV M16/M203 Rifle Mount and Gasoline Burning Stove Stowage TM 9-2320-280-24P · Fig. 250

Every part in figure 250 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 23 lines, 15 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

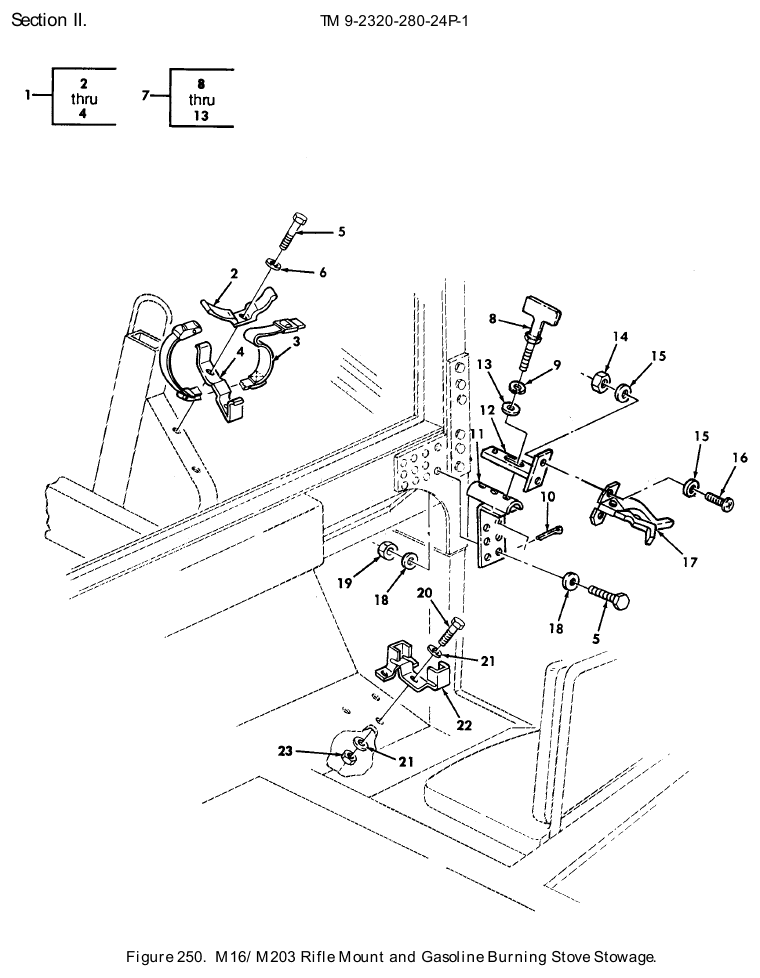

TM 9-2320-280-24P figure 250, M16/M203 Rifle Mount and Gasoline Burning Stove Stowage: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cradle and Clamp P/N 45187 CRADLE AND CLAMP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	Ask us
2	Rack Saddle NSN 2590-01-210-0176 · P/N 45189-10 SADDLE,RACK Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $85–$140 eachtypical
3	Retaining Strap NSN 5340-01-209-7761 · P/N 45065-10 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $30–$65 eachtypical
4	Gasoline Burner Bracket Frame NSN 4530-01-211-5328 · P/N 45188-10 BRACKET FRAME,GASOL Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $55–$105 eachtypical
5	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	10	559 in stock
6	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	351 in stock
7	Vehicular Components Bracket NSN 2590-01-377-6819 · P/N 12342784 BRACKET,VEHICULAR C Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	4 in stock $30–$65 eachtypical
8	Manual Control Handle NSN 5340-01-476-6587 · P/N 12342785 HANDLE,MANUAL CONTR Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $25–$50 eachtypical
9	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	4,285 in stock
10	Cotter Pin NSN 5315-00-839-2325 · P/N MS24665-132 PIN,COTTER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	8,521 in stock
11	Mounting Bracket NSN 5340-01-476-6205 · P/N 12342786 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $50–$90 eachtypical
12	Mounting Bracket NSN 5340-01-476-6182 · P/N 12342787 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1 in stock $45–$85 eachtypical
13	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	2,325 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-941-6019 · P/N MS21083N08 NUT,SELF-LOCKING,HE #8-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
15	Flat Washer NSN 5310-01-213-4192 · P/N 9423534 WASHER,FLAT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	15	98 in stock
16	Machine Screw NSN 5305-00-984-6194 · P/N MS35206-246 SCREW,MACHINE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	418 in stock
17	Locking Recoilless Rifle Clamp NSN 1015-01-200-0869 · P/N 12340487 CLAMP,LOCKING,RECOI Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it quote only $30–$65 eachtypical
18	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	16	2,325 in stock
19	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	626 in stock
20	Machine Bolt NSN 5306-00-225-8498 · P/N MS90725-33 BOLT,MACHINE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	351 in stock
21	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	24	471 in stock
22	Rifle Mounting Support NSN 2590-01-194-2048 · P/N 12340142 SUPPORT,RIFLE MOUNT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	22 in stock quote only $25–$60 eachtypical
23	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	354 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
