HMMWV Exhuast Manifold Heat Shield TM 9-2320-280-24P · Fig. 25

Every part in figure 25 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0401 Muffler and Pipes: 7 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

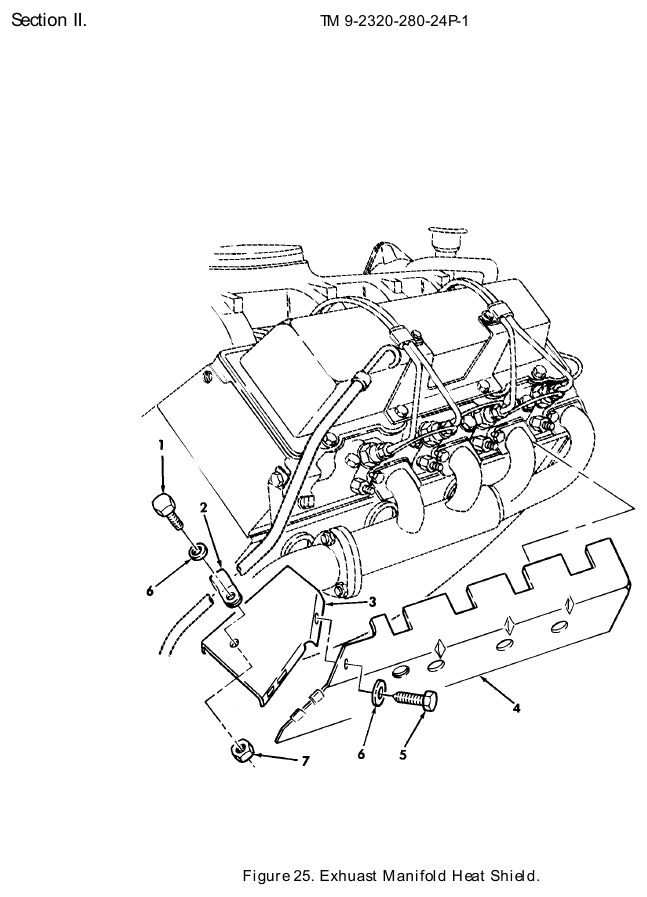

TM 9-2320-280-24P figure 25, Exhuast Manifold Heat Shield: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H 1/4-20 X 1/2 Fits: All models	1	300 in stock
2	Loop Clamp NSN 5340-01-166-1672 · P/N 120528 CLAMP,LOOP Fits: All models	1	20 in stock
3	Muffler-Exhaust Pipe Nonai Guard NSN 2990-01-210-6982 · P/N 12339181 GUARD,MUFFLER-EXHAU R.H Fits: All models	1	14 in stock
4	Muffler-Exhaust Pipe Nonai Guard NSN 2990-01-210-0427 · P/N 12339174 GUARD,MUFFLER-EXHAU L.H Fits: All models	1	16 in stock $130.13 per eachgov't list price
5	Screw NSN 5305-01-204-6502 · P/N 112-1008800-003 SCREW #10-32 X 1/2 Fits: All models	1	10 in stock
6	Flat Washer NSN 5310-01-211-3811 · P/N 9417793 WASHER,FLAT Fits: All models	2	10 in stock
7	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	1	626 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
