HMMWV Radiator and Mounting Hardware TM 9-2320-280-24P · Fig. 26

Every part in figure 26 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 05 Cooling System: 14 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

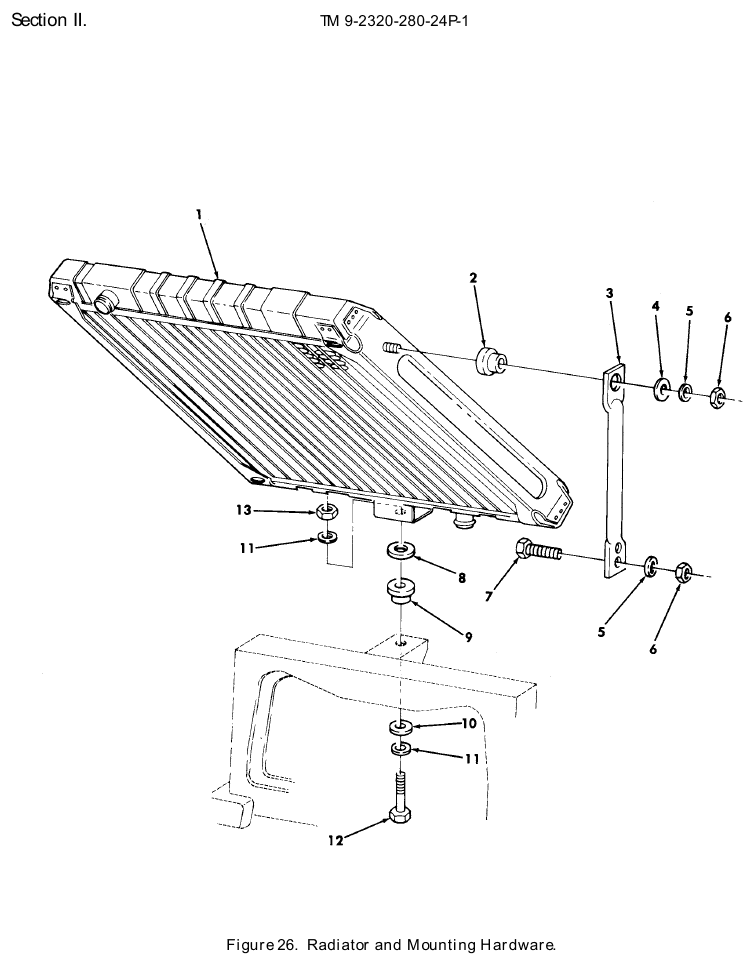

TM 9-2320-280-24P figure 26, Radiator and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Engine Coolant Radiator NSN 2930-01-405-9885 · P/N 12446985 RADIATOR,ENGINE COO Fits: All models	1	121 in stock $959.99our price Buy online ↗
2	Nonmetallic Grommet NSN 5325-01-187-1604 · P/N M-200-60-EP GROMMET,NONMETALLIC Fits: All models	2	1 in stock
3	Radiator Retainer NSN 2930-01-210-6940 · P/N 12339165-1 RETAINER,RADIATOR L.H Fits: All models	1	2,764 in stock $48.00our price Buy online ↗
3	Radiator Support NSN 2930-01-218-8103 · P/N 12339165-2 SUPPORT,RADIATOR R.H Fits: All models	1	240 in stock $34.99our price Buy online ↗
4	Flat Washer NSN 5310-01-258-1536 · P/N 5593221 WASHER,FLAT 3/8 Fits: All models	2	40 in stock
5	Flat Washer NSN 5310-01-205-7923 · P/N 5593213 WASHER,FLAT 3/8 Fits: All models	6	We can source it
6	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: All models	6	219 in stock
7	Cap Screw NSN 5305-01-251-0756 · P/N 5593328 SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: All models	4	We can source it
8	Flat Washer NSN 5310-01-269-0786 · P/N 12340263 WASHER,FLAT 1/2 Fits: All models	1	9 in stock
9	Resilient Utility Mount NSN 5340-01-197-3461 · P/N 12340264 MOUNT,RESILIENT LOWER Fits: All models	1	5 in stock
10	Flat Washer NSN 5310-01-250-7835 · P/N 9428851 WASHER,FLAT 1/2 Fits: All models	1	14 in stock
11	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2 Fits: All models	2	2,218 in stock
12	Cap Hexagon Head Screw NSN 5305-00-071-2071 · P/N B1821BH050C200N SCREW,CAP,HEXAGON H 1/2-13 X 2.00 Fits: All models	1	447 in stock
13	Self-Locking Hexagon Nut NSN 5310-01-149-4407 · P/N 9442939 NUT,SELF-LOCKING,HE 1/2-13 Fits: All models	1	101,657 in stock $6.00our price Buy online ↗

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
