HMMWV Armament Tripod Mount, Ammunition, Gun Adapter Mount, Rear M16 Rifle Stowage, and Related Components TM 9-2320-280-24P · Fig. 252

Every part in figure 252 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 48 lines, 29 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

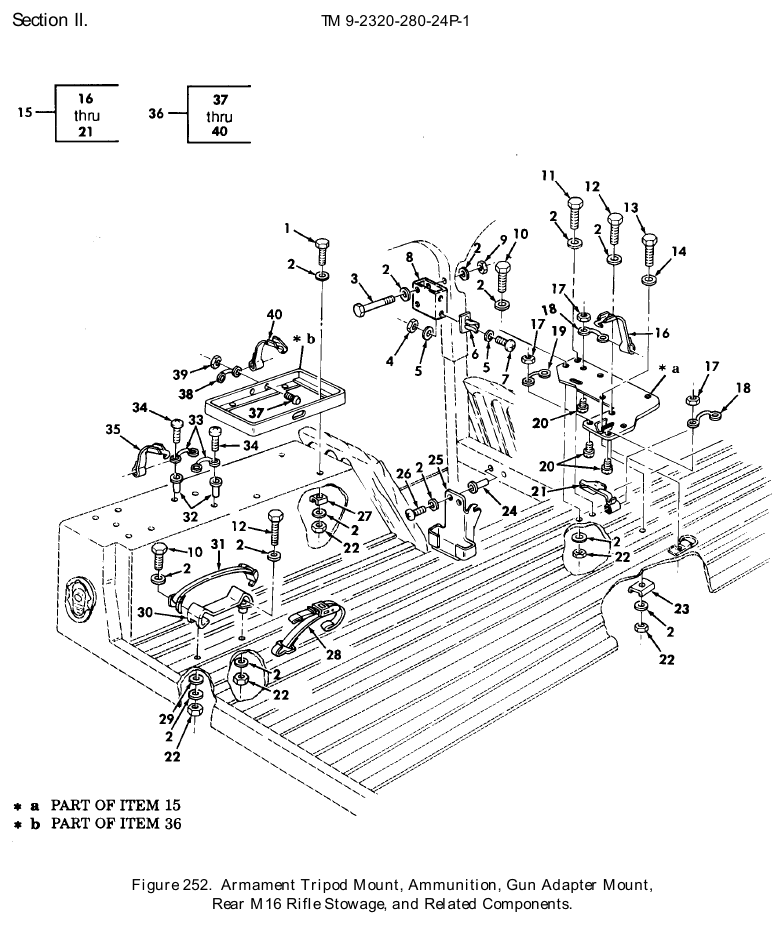

TM 9-2320-280-24P figure 252, Armament Tripod Mount, Ammunition, Gun Adapter Mount, Rear M16 Rifle Stowage, and Related Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	4	471 in stock
2	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 (MARINE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	34	We can source it
2	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043A2	42	We can source it
3	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 2.00 (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	248 in stock
3	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 2.00 (MARINE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	248 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-811-3494 · P/N MS21044-N08 NUT,SELF-LOCKING,HE #8-32 (MARINE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	We can source it
4	Self-Locking Hexagon Nut NSN 5310-00-811-3494 · P/N MS21044-N08 NUT,SELF-LOCKING,HE #8-32 (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	We can source it
5	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #8 (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	4	We can source it
5	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #8 (MARINE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	8	We can source it
6	Locking Recoilless Rifle Clamp NSN 1015-01-200-0869 · P/N 12340487 CLAMP,LOCKING,RECOI (MARINE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	We can source it quote only $30–$65 eachtypical
6	Locking Recoilless Rifle Clamp NSN 1015-01-200-0869 · P/N 12340487 CLAMP,LOCKING,RECOI (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	We can source it quote only $30–$65 eachtypical
7	Machine Screw NSN 5305-00-054-6672 · P/N MS51957-47 SCREW,MACHINE #8-32 X 3/4 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	4	1,600 in stock
8	Vehicular Components Bracket NSN 2590-01-406-9821 · P/N 12446762 BRACKET,VEHICULAR C UPPER, M-16 RIFLE (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	490 in stock $25–$45 eachtypical
9	Plain Hexagon Nut NSN 5310-00-761-6882 · P/N MS51967-2 NUT,PLAIN,HEXAGON 1/4-20 (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	805 in stock $9.79our price Buy online ↗
9	Self-Locking Nut NSN 5310-01-255-2695 · P/N 5593035 NUT,SELF-LOCKING,HE 1/4-20 (MARINE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	We can source it
10	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H 1/4-20 X 1.50 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	3	558 in stock
11	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	298 in stock
12	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	3	559 in stock
13	Cap Hexagon Head Screw NSN 5305-00-071-2071 · P/N B1821BH050C200N SCREW,CAP,HEXAGON H 1/2-13 X 2.00 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	447 in stock
14	Flat Washer NSN 5310-00-167-0823 · P/N AN960-816 WASHER,FLAT 1/4 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	500 in stock
15	Mounting Plate NSN 5340-01-247-7922 · P/N 12340179 PLATE,MOUNTING FRONT Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	22 in stock $519.39our price Buy online ↗
16	Webbing Strap NSN 5340-01-264-5833 · P/N 45410-20 STRAP,WEBBING Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	189 in stock $25–$50 eachtypical
17	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	8	We can source it
18	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	3	1 in stock
19	Bow Handle NSN 5340-01-197-8673 · P/N 12338839-4 HANDLE,BOW Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	14 in stock
20	Machine Screw NSN 5305-00-984-7342 · P/N MS35191-274 SCREW,MACHINE #10-32 X 3/4 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	8	196 in stock
21	Webbing Strap NSN 5340-01-259-0328 · P/N 45410-12 STRAP,WEBBING Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	50 in stock $25–$40 eachtypical
22	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	10	626 in stock
23	Retaining Strap NSN 5340-01-258-4866 · P/N 12339755-4 STRAP,RETAINING Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	We can source it
24	Plusnut NSN 4931-01-202-8692 · P/N 12339998-13 PLUSNUT Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	4	We can source it
25	Mounting Bracket NSN 5340-01-247-7918 · P/N 12340164 BRACKET,MOUNTING LOWER (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	63 in stock $60–$100 eachtypical
26	Machine Screw NSN 5305-00-071-1318 · P/N MS51957-83 SCREW,MACHINE 1/4-20 X 1.00 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	4	6 in stock
27	Angle Bracket NSN 5340-01-336-3004 · P/N 12342383 BRACKET,ANGLE USBL EFF 100,000 AND ABOVE Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	4 in stock
27	Double Angle Bracket NSN 5340-01-256-4517 · P/N 5596028 BRACKET,DOUBLE ANGL USBL EFF 1 THRU 99,999 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	4	We can source it
27	Double Angle Bracket NSN 5340-01-256-4517 · P/N 5596028 BRACKET,DOUBLE ANGL USBL EFF 100, 000 AND ABOVE Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	3	We can source it
28	Webbing Strap NSN 5340-01-299-2963 · P/N 45685-10 STRAP,WEBBING Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	18 in stock $30–$55 eachtypical
29	Flat Washer NSN 5310-01-218-3190 · P/N 12339433 WASHER,FLAT Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	5 in stock
30	Mounting Bracket NSN 5340-01-247-7919 · P/N 12340314 BRACKET,MOUNTING Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	5 in stock $35–$75 per assemblytypical
31	Webbing Strap NSN 5340-01-258-8609 · P/N 45607-10 STRAP,WEBBING Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	We can source it $25–$45 eachtypical
32	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N 12339998-14 NUT,PLAIN,BLIND RIV #10-32 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	8	We can source it
33	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	4	1 in stock
34	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X 3/4 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	8	55 in stock
35	Webbing Strap NSN 5340-01-259-0328 · P/N 45410-12 STRAP,WEBBING Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	50 in stock $25–$40 eachtypical
36	Ammo Box Tray Assembly NSN 2590-01-246-8294 · P/N 12340166 TRAY ASSEMBLY,AMMO Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	20 in stock quote only $70–$120 per assemblytypical
37	Machine Screw NSN 5305-01-006-2052 · P/N MS51849-65 SCREW,MACHINE #10-32 X .62 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	We can source it
38	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	1 in stock
39	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	We can source it
40	Webbing Strap NSN 5340-01-258-6158 · P/N 45410-16 STRAP,WEBBING Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
