HMMWV Ammunition and Water Can Stowage Trays and Related Components, Army TM 9-2320-280-24P · Fig. 253

Every part in figure 253 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 40 lines, 27 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

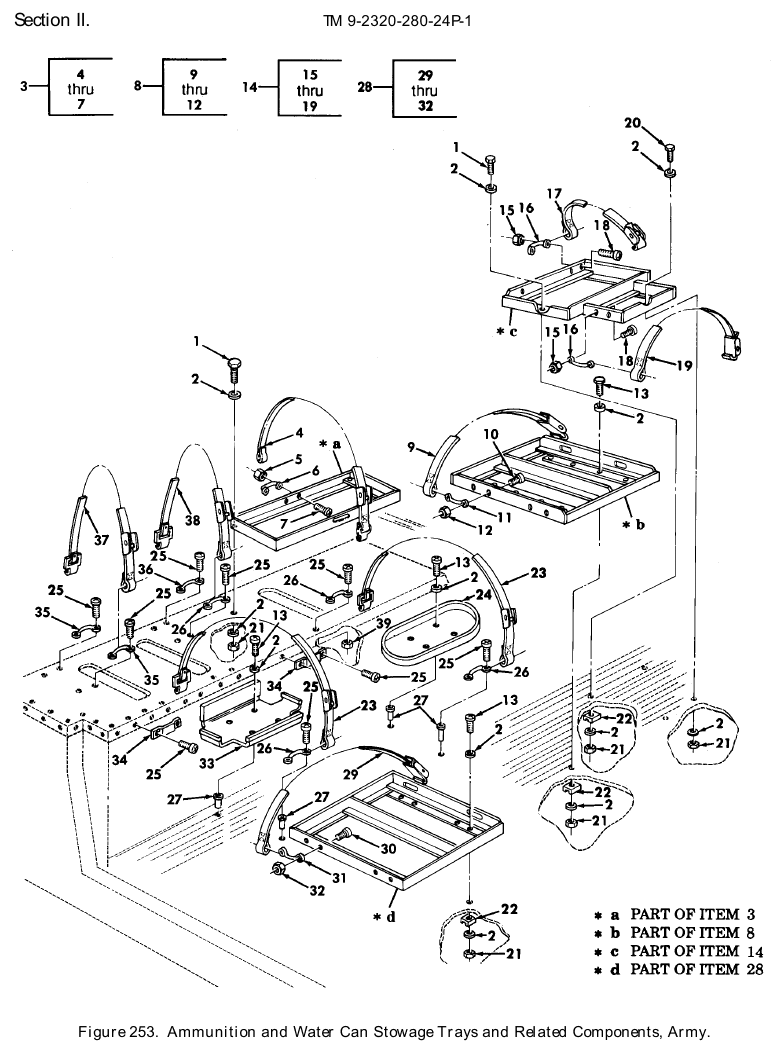

TM 9-2320-280-24P figure 253, Ammunition and Water Can Stowage Trays and Related Components, Army: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M1025, M1025A1, M1026, M1026A1	16	471 in stock
2	Flat Washer NSN 5310-00-823-8804 · P/N MS27183-9 WASHER,FLAT 1/4 Fits: M1025, M1025A1, M1026, M1026A1	88	50 in stock
3	Ammo Box Tray Assembly NSN 2590-01-246-8294 · P/N 12340166 TRAY ASSEMBLY,AMMO Fits: M1025, M1025A1, M1026, M1026A1	1	20 in stock quote only $70–$120 per assemblytypical
4	Webbing Strap NSN 5340-01-258-6158 · P/N 45410-16 STRAP,WEBBING Fits: M1025, M1025A1, M1026, M1026A1	1	We can source it
5	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1025, M1025A1, M1026, M1026A1	2	We can source it
6	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1026, M1026A1	1	1 in stock
7	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X .62 Fits: M1025, M1025A1, M1026, M1026A1	2	4 in stock
8	Ammo Tray Assembly NSN 2590-01-262-9514 · P/N 12340175-2 TRAY ASSEMBLY,AMMO Fits: M1025, M1025A1, M1026, M1026A1	1	We can source it $170.19 per assemblygov't list price
9	Webbing Strap NSN 5340-01-259-0329 · P/N 45410-14 STRAP,WEBBING Fits: M1025, M1025A1, M1026, M1026A1	2	We can source it
10	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X .62 Fits: M1025, M1025A1, M1026, M1026A1	4	4 in stock
11	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1026, M1026A1	2	1 in stock
12	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1025, M1025A1, M1026, M1026A1	4	We can source it
13	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M1025, M1025A1, M1026, M1026A1	28	558 in stock
14	Ammo Tray Assembly NSN 2590-01-262-9515 · P/N 5596009 TRAY ASSEMBLY,AMMO Fits: M1025, M1025A1, M1026, M1026A1	1	We can source it $151.14 per assemblygov't list price
15	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1025, M1025A1, M1026, M1026A1	6	We can source it
16	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1026, M1026A1	3	1 in stock
17	Webbing Strap NSN 5340-01-259-0329 · P/N 45410-14 STRAP,WEBBING Fits: M1025, M1025A1, M1026, M1026A1	2	We can source it
18	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X .62 Fits: M1025, M1025A1, M1026, M1026A1	6	4 in stock
19	Webbing Strap NSN 5340-01-258-4529 · P/N 12340507-4 STRAP,WEBBING Fits: M1025, M1025A1, M1026, M1026A1	1	1,464 in stock
20	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H 1/4-20 X 1.50 Fits: M1025, M1025A1, M1026, M1026A1	6	558 in stock
21	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1025, M1025A1, M1026, M1026A1	44	626 in stock
22	Angle Bracket NSN 5340-01-336-3004 · P/N 12342383 BRACKET,ANGLE USBL EFF 100,000 AND ABOVE Fits: M1025A1, M1026A1	1	4 in stock
22	Double Angle Bracket NSN 5340-01-256-4517 · P/N 5596028 BRACKET,DOUBLE ANGL USBL EFF 1 THRU 99,999 Fits: M1025, M1026	8	We can source it
23	Webbing Strap NSN 5340-01-258-6157 · P/N 45606-11 STRAP,WEBBING Fits: M1025, M1025A1, M1026, M1026A1	2	1 in stock $25–$40 eachtypical
24	Fuel Can Tray NSN 2510-01-197-8572 · P/N 12340155 TRAY,FUEL CAN Fits: M1025, M1025A1, M1026, M1026A1	1	27 in stock $30–$70 eachtypical
25	Machine Screw NSN 5305-01-251-0728 · P/N 5592823 SCREW,MACHINE #10-32 X .75 Fits: M1025, M1025A1, M1026, M1026A1	8	482 in stock
26	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1026, M1026A1	5	1 in stock
27	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N 12339998-14 NUT,PLAIN,BLIND RIV #10-32 Fits: M1025, M1025A1, M1026, M1026A1	12	We can source it
28	Ammo Tray Assembly NSN 2590-01-262-9513 · P/N 12340175-3 TRAY ASSEMBLY,AMMO Fits: M1025, M1025A1, M1026, M1026A1	1	2 in stock $143.43 per assemblygov't list price
29	Webbing Strap NSN 5340-01-275-8567 · P/N 45410-19 STRAP,WEBBING Fits: M1025, M1025A1, M1026, M1026A1	2	1,198 in stock $25–$40 eachtypical
30	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X .62 Fits: M1025, M1025A1, M1026, M1026A1	4	4 in stock
31	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1026, M1026A1	2	1 in stock
32	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1025, M1025A1, M1026, M1026A1	4	We can source it
33	Stowage Water Tray NSN 2540-01-262-9516 · P/N 12340158-3 TRAY,STOWAGE,WATER Fits: M1025, M1025A1, M1026, M1026A1	1	7 in stock $137.71 per eachgov't list price
34	Retaining Strap NSN 5340-01-253-5479 · P/N 12340130 STRAP,RETAINING Fits: M1025, M1025A1, M1026, M1026A1	2	We can source it
35	Strap Fastener Loop NSN 5340-01-213-5735 · P/N 5591648 LOOP,STRAP FASTENER Fits: M1025, M1025A1, M1026, M1026A1	2	65 in stock
36	Bow Handle NSN 5340-01-197-8673 · P/N 12338839-4 HANDLE,BOW Fits: M1025, M1025A1, M1026, M1026A1	1	14 in stock
37	Webbing Strap NSN 5340-01-254-7191 · P/N 45410-10 STRAP,WEBBING Fits: M1025, M1025A1, M1026, M1026A1	1	672 in stock $11.99our price Buy online ↗
38	Webbing Strap NSN 5340-01-264-5833 · P/N 45410-20 STRAP,WEBBING Fits: M1025, M1025A1, M1026, M1026A1	1	189 in stock $25–$50 eachtypical
39	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1025, M1025A1, M1026, M1026A1	4	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
