HMMWV Litter Straps and Fasteners, Right Hand, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 256

Every part in figure 256 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 8 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

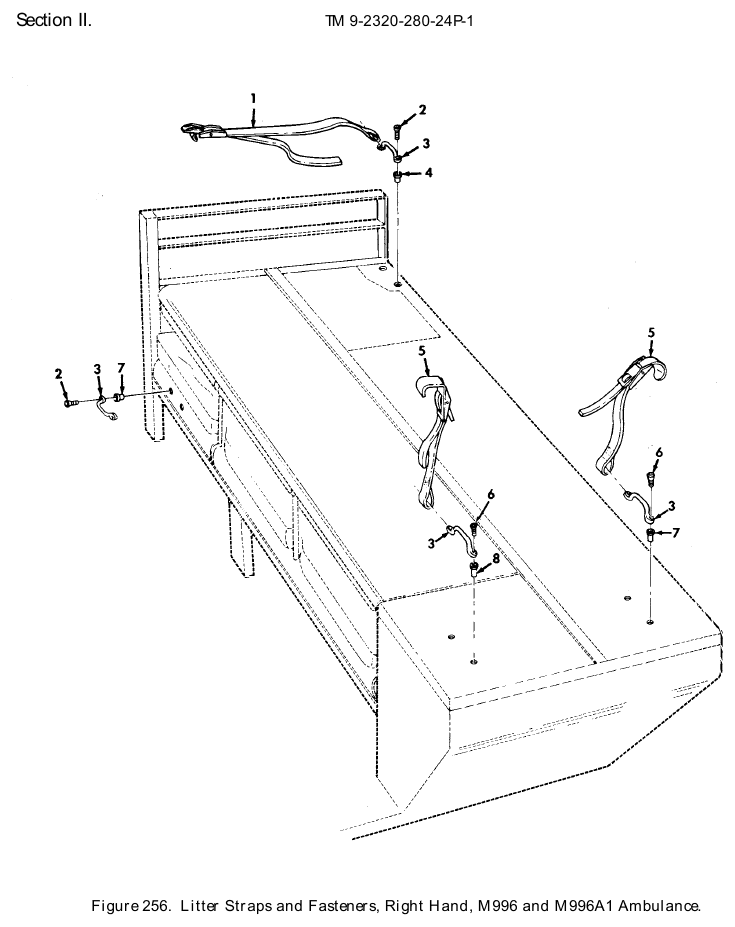

TM 9-2320-280-24P figure 256, Litter Straps and Fasteners, Right Hand, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Webbing Strap NSN 5340-01-275-8568 · P/N 45410-21 STRAP,WEBBING Fits: M996, M996A1	1	We can source it
2	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE #10-32 X 7/8 Fits: M996, M996A1	4	100 in stock
3	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M996, M996A1	4	1 in stock
4	Plain Blind Rivet Nut NSN 5310-00-177-7529 · P/N 5934007 NUT,PLAIN,BLIND RIV #10-32 Fits: M996, M996A1	2	We can source it
5	Webbing Strap NSN 5340-01-265-8925 · P/N 45084-11 STRAP,WEBBING Fits: M996, M996A1	2	120 in stock
6	Machine Screw NSN 5305-01-251-0728 · P/N 5592823 SCREW,MACHINE #10-32 X 3/8 Fits: M996, M996A1	4	482 in stock
7	Plain Blind Rivet Nut NSN 5310-00-550-4725 · P/N NAS453-10K75 NUT,PLAIN,BLIND RIV #10-32 Fits: M996, M996A1	4	We can source it
8	Plain Blind Rivet Nut NSN 5310-00-141-3062 · P/N MS27130-A26 NUT,INSERT Fits: M996, M996A1	2	36 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
