HMMWV Ammunition and Water Can Stowage Trays and Related Components, Air Force and Marine Corps TM 9-2320-280-24P · Fig. 255

Every part in figure 255 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 39 lines, 26 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

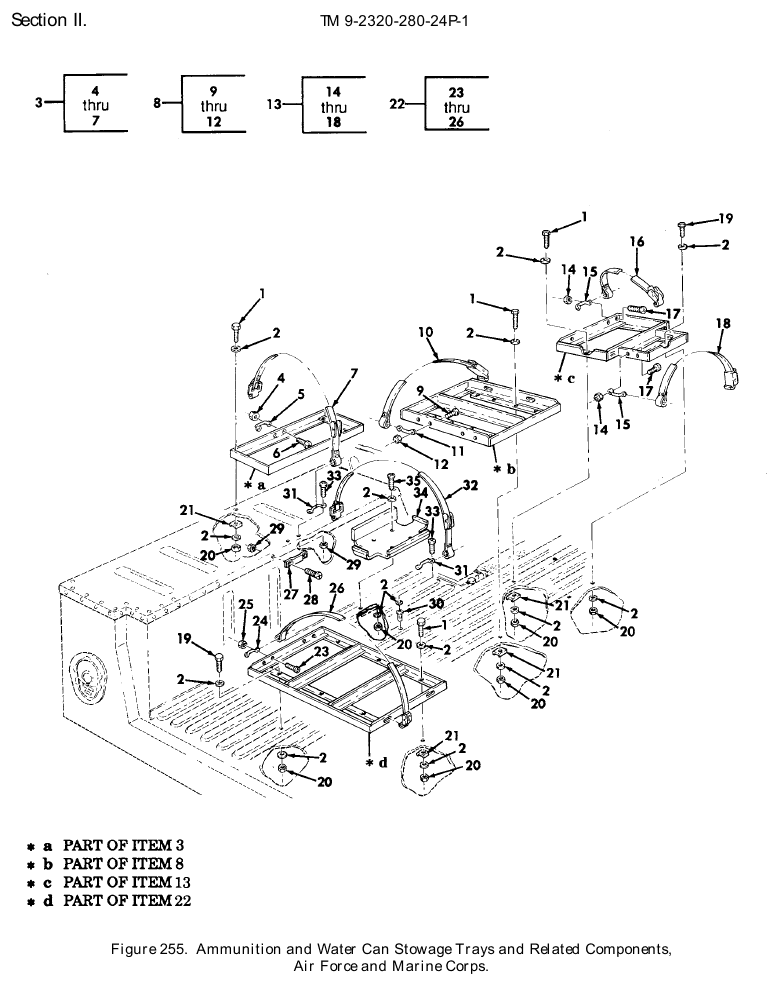

TM 9-2320-280-24P figure 255, Ammunition and Water Can Stowage Trays and Related Components, Air Force and Marine Corps: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	12	471 in stock
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	44	351 in stock
3	Ammo Box Tray Assembly NSN 2590-01-246-8294 · P/N 12340166 TRAY ASSEMBLY,AMMO (AIR FORCE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	20 in stock quote only $70–$120 per assemblytypical
4	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 (AIR FORCE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	We can source it
5	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER (AIR FORCE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	1 in stock
6	Machine Screw NSN 5305-00-989-7435 · P/N MS35207-264 SCREW,MACHINE #10-32 X .62 (AIR FORCE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	We can source it
7	Webbing Strap NSN 5340-01-258-6158 · P/N 45410-16 STRAP,WEBBING (AIR FORCE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	We can source it
8	Ammunition Stowage Rack NSN 2590-01-247-7923 · P/N 12340175-1 RACK,AMMUNITION STO Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	4 in stock $343.15 per assemblygov't list price
9	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 (MARINE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	4 in stock
9	Machine Screw NSN 5305-00-059-3661 · P/N MS51958-65 SCREW,MACHINE #10-32 X 3/4 (AIR FORCE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	24 in stock
10	Webbing Strap NSN 5340-01-258-6158 · P/N 45410-16 STRAP,WEBBING Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	We can source it
11	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	1 in stock
12	Lock Nut NSN 5310-00-251-4503 · P/N 5593048 NUT,LOCK #10-32 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	40 in stock
13	Ammunition Stowage Rack NSN 2590-01-249-1579 · P/N 5593189 RACK,AMMUNITION STO Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	29 in stock $222.20 per assemblygov't list price
14	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	6	We can source it
15	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	3	1 in stock
16	Webbing Strap NSN 5340-01-259-0329 · P/N 45410-14 STRAP,WEBBING Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	We can source it
17	Machine Screw NSN 5305-00-059-3661 · P/N MS51958-65 SCREW,MACHINE #10-32 X 3/4 (AIR FORCE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	6	24 in stock
17	Machine Screw NSN 5305-00-059-3660 · P/N 5592993 SCREW,MACHINE #10-32 X 5/8 (MARINE) Fits: M1043, M1043A1, M1044, M1044A1	6	4 in stock
18	Webbing Strap NSN 5340-01-258-4529 · P/N 45410-13 STRAP,WEBBING Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	1,464 in stock
19	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	6	558 in stock
20	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	20	626 in stock
21	Angle Bracket NSN 5340-01-336-3004 · P/N 12342383 BRACKET,ANGLE USBL EFF 100,000 AND ABOVE Fits: M1043A1, M1043A2, M1044A1	1	4 in stock
21	Double Angle Bracket NSN 5340-01-256-4517 · P/N 12340133 BRACKET,DOUBLE ANGL USBL EFF 1 THUR 99,999 Fits: M1043, M1044	12	We can source it
22	Ammo Box Tray Assembly NSN 2590-01-247-7924 · P/N 12340180 TRAY ASSEMBLY,AMMO Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	We can source it $796.73 per assemblygov't list price
23	Machine Screw NSN 5305-00-059-3661 · P/N MS51958-65 SCREW,MACHINE #10-32 X 3/4 (AIR FORCE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	24 in stock
23	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 (MARINE) Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	4 in stock
24	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	1 in stock
25	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	We can source it
26	Webbing Strap NSN 5340-01-259-0330 · P/N 45410-18 STRAP,WEBBING Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	205 in stock
27	Retaining Strap NSN 5340-01-253-5479 · P/N 12340130 STRAP,RETAINING Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	We can source it
28	Machine Screw NSN 5305-00-059-3661 · P/N MS51958-65 SCREW,MACHINE #10-32 X 3/4 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	24 in stock
29	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	We can source it
30	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N 12339998-14 NUT,PLAIN,BLIND RIV #10-32 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	We can source it
31	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	1 in stock
32	Webbing Strap NSN 5340-01-258-6157 · P/N 45606-11 STRAP,WEBBING Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	1 in stock $25–$40 eachtypical
33	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X 3/4 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	55 in stock
34	Water Tray Assembly NSN 2590-01-247-7920 · P/N 12340158-2 TRAY ASSEMBLY,WATER Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	165 in stock $93.99our price Buy online ↗
35	Machine Screw NSN 5305-00-182-9304 · P/N MS51957-131 SCREW,MACHINE 1/4-20 X 1.375 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	4	We can source it
