HMMWV Oxygen Bottle Mounting, Litter Bumpers, and Litter Frame Plugs, Left Hand, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 259

Every part in figure 259 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 13 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

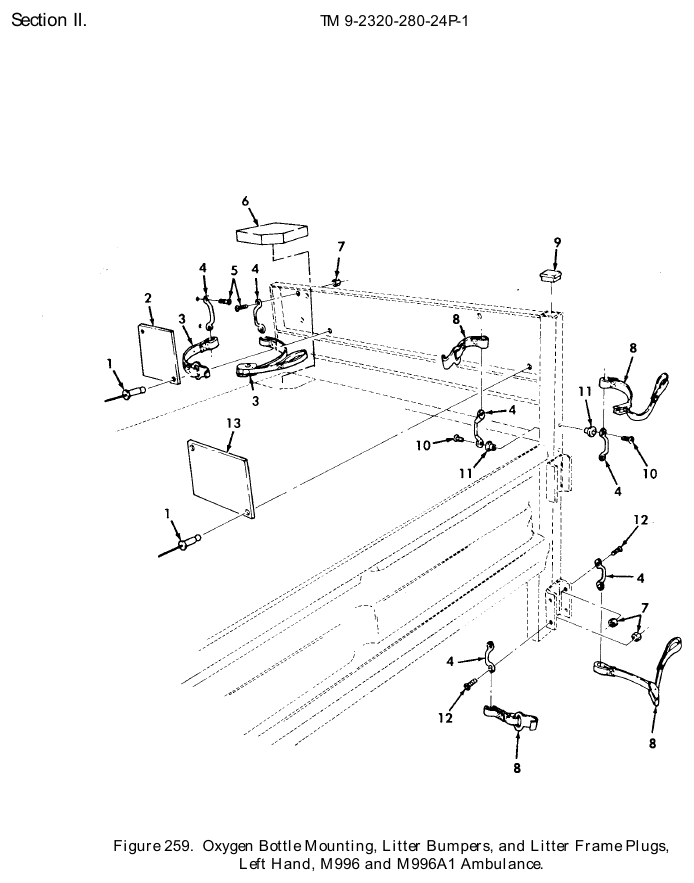

TM 9-2320-280-24P figure 259, Oxygen Bottle Mounting, Litter Bumpers, and Litter Frame Plugs, Left Hand, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-084-9234 · P/N CR-213-6-6 RIVET,BLIND 3/16 Fits: M996, M996A1	4	12 in stock
2	Nonmetallic Bumper NSN 5340-01-277-4619 · P/N 5933977 BUMPER,NONMETALLIC Fits: M996, M996A1	1	We can source it
3	Webbing Strap NSN 5340-01-265-8923 · P/N 44647-18 STRAP,WEBBING Fits: M996, M996A1	1	824 in stock $25.00our price Buy online ↗
4	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M996, M996A1	6	1 in stock
5	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 Fits: M996, M996A1	4	4 in stock
6	Bumper NSN 5340-01-277-5129 · P/N SF5597714 BUMPER,NONMETALLIC Fits: M996, M996A1	1	296 in stock $25–$40 eachtypical
7	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: M996, M996A1	6	10 in stock
8	Webbing Strap NSN 5340-01-272-8431 · P/N 44647-19 STRAP,WEBBING Fits: M996, M996A1	2	We can source it $25–$50 eachtypical
9	Protective Dust and Moistur Plug NSN 5340-01-274-7337 · P/N FP-161 PLUG,PROTECTIVE,DUS Fits: M996, M996A1	1	400 in stock
10	Machine Screw NSN 5305-01-251-0728 · P/N 5592823 SCREW,MACHINE #10-32 X 3/4 Fits: M996, M996A1	4	482 in stock
11	Plain Blind Rivet Nut NSN 5310-00-141-3062 · P/N MS27130-A26 NUT,PLAIN,BLIND RIV #10-32 Fits: M996, M996A1	4	36 in stock
12	Machine Screw NSN 5305-00-180-4966 · P/N MS51849-64 SCREW,MACHINE #10-32 X .50 Fits: M996, M996A1	4	We can source it
13	Bumper NSN 5340-01-270-8431 · P/N 12341500-3 BUMPER,PLASTIC Fits: M996, M996A1	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
