HMMWV Oxygen Bottle Holddown and Bracket, Spine Board (Short) W/Straps, R.H., M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 260

Every part in figure 260 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 25 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

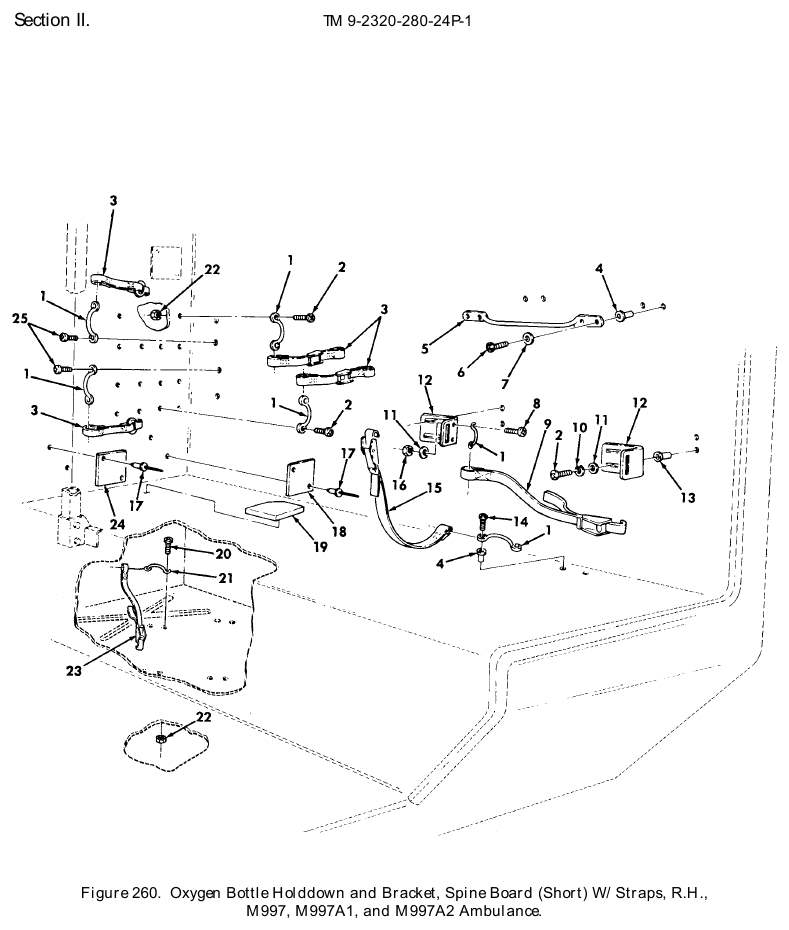

TM 9-2320-280-24P figure 260, Oxygen Bottle Holddown and Bracket, Spine Board (Short) W/Straps, R.H., M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 HANDLE,BOW Fits: M997, M997A1, M997A2	13	1 in stock
2	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 Fits: M997, M997A1, M997A2	24	4 in stock
3	Webbing Strap NSN 5340-01-265-8923 · P/N 44647-18 STRAP,WEBBING Fits: M997, M997A1, M997A2	4	824 in stock $25.00our price Buy online ↗
4	Plain Blind Rivet Nut NSN 5310-00-177-7529 · P/N 5934007 NUT,PLAIN,BLIND RIV #10-32 Fits: M997, M997A1, M997A2	6	We can source it
5	Retaining Strap NSN 5340-01-273-0136 · P/N 12341490 STRAP,RETAINING Fits: M997, M997A1, M997A2	1	We can source it $80–$130 eachtypical
6	Machine Screw NSN 5305-01-272-5433 · P/N 5593390 SCREW,MACHINE #10-32 X 1.00 Fits: M997, M997A1, M997A2	12	We can source it
7	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M997, M997A1, M997A2	8	We can source it
8	Machine Screw NSN 5305-00-989-7435 · P/N MS35207-264 SCREW,MACHINE #10-32 X 5/8 Fits: M997, M997A1, M997A2	2	We can source it
9	Webbing Strap NSN 5340-01-272-7815 · P/N 45410-22 STRAP,WEBBING Fits: M997, M997A1, M997A2	1	33 in stock $25–$40 eachtypical
10	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK 3/16 Fits: M997, M997A1, M997A2	8	709 in stock
11	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #10 Fits: M997, M997A1, M997A2	6	We can source it
12	Angle Bracket NSN 5340-01-274-3287 · P/N 5597820 BRACKET,ANGLE Fits: M997, M997A1, M997A2	2	55 in stock
13	Plain Blind Rivet Nut NSN 5310-00-003-6779 · P/N MS27130-A27 NUT,PLAIN,BLIND RIV #10-32 Fits: M997, M997A1, M997A2	4	We can source it
14	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE #10-32 X 7/8 Fits: M997, M997A1, M997A2	12	100 in stock
15	Webbing Strap NSN 5340-01-287-8761 · P/N 45084-12 STRAP,WEBBING Fits: M997, M997A1, M997A2	1	We can source it $30–$60 eachtypical
16	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,LOCK #10-32 Fits: M997, M997A1, M997A2	2	40 in stock
17	Blind Rivet NSN 5320-01-084-9234 · P/N CR-213-6-6 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	8	12 in stock
18	Bumper NSN 5340-01-270-8432 · P/N SF5934173 BUMPER,PLASTIC Fits: M997, M997A1, M997A2	2	1 in stock
19	Bumper NSN 5340-01-277-5129 · P/N SF5597714 BUMPER,NONMETALLIC Fits: M997, M997A1, M997A2	2	296 in stock $25–$40 eachtypical
20	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW,CAP,HEXAGON H #10-32 X 3/4 Fits: M997, M997A1, M997A2	8	We can source it
21	Retaining Strap NSN 5340-01-434-1809 · P/N 12338839-3 LOOP,STRAP,FASTENER Fits: M997, M997A1, M997A2	4	We can source it
22	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M997, M997A1, M997A2	8	474 in stock
23	Webbing Strap NSN 5340-01-258-6158 · P/N 45410-16 STRAP,WEBBING Fits: M997, M997A1, M997A2	2	We can source it
24	Bumper NSN 5340-01-270-8431 · P/N 12341500-3 BUMPER,PLASTIC Fits: M997, M997A1, M997A2	2	We can source it
25	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 3/4 Fits: M997, M997A1, M997A2	4	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
