HMMWV Gunner’s Platform Assembly and Mounting Hardware TM 9-2320-280-24P · Fig. 279

Every part in figure 279 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 37 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

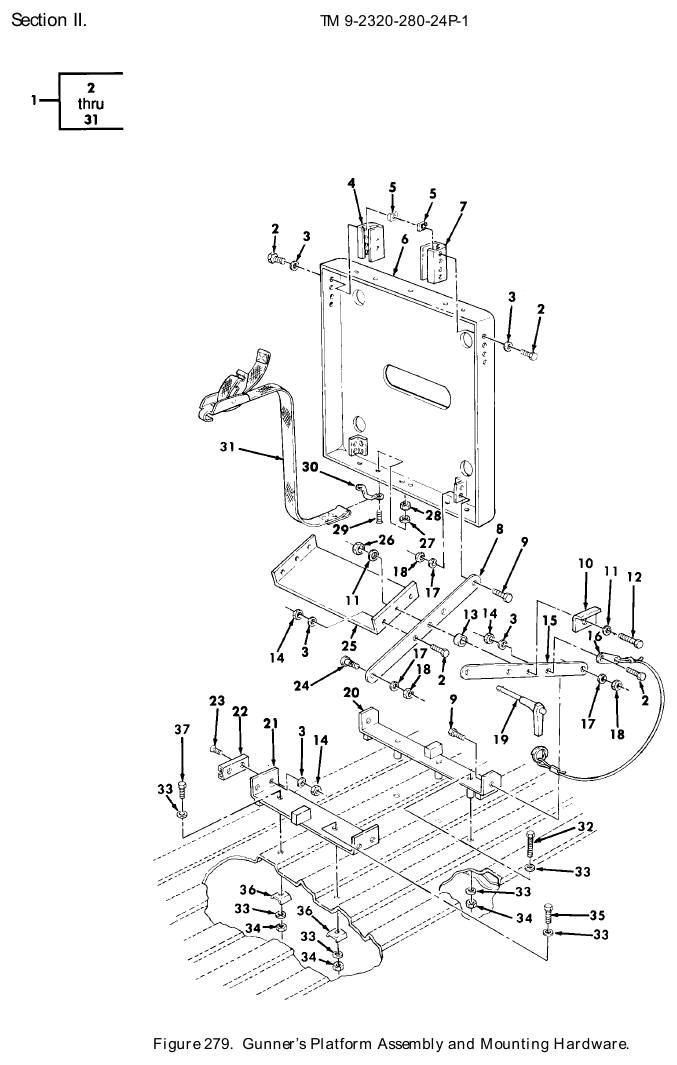

TM 9-2320-280-24P figure 279, Gunner’s Platform Assembly and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Platform Assembly NSN 2540-01-249-1584 · P/N 45481-10 PLATFORM ASSEMBLY, Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	37 in stock $495.89our price Buy online ↗
2	Cap Hexagon Head Screw NSN 5305-00-267-8953 · P/N B1821BH025F063N SCREW,CAP,HEXAGON H 1/4-28 X 5/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	10	1,020 in stock
3	Flat Washer NSN 5310-00-167-0835 · P/N AN960-416L WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	14	118 in stock
4	Platform Guide NSN 2590-01-262-4980 · P/N 45602-11 GUIDE,PLATFORM Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	15 in stock quote only $30–$65 eachtypical
5	Nut Blank NSN 5310-01-298-4686 · P/N 45611-10 NUT BLANK Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it $25–$45 eachtypical
6	G Platform Assembly NSN 2590-01-260-0214 · P/N 45481-01 PLATFORM ASSEMBLY,G Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	45 in stock $450.17our price Buy online ↗
7	Platform Guide NSN 2590-01-262-4981 · P/N 45602-10 GUIDE,PLATFORM Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1 in stock $30–$65 eachtypical
8	Rigid Connecting Link NSN 3040-01-264-9554 · P/N 45617-13 CONNECTING LINK,RIG Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $45–$85 eachtypical
9	Shoulder Bolt NSN 5306-01-269-6254 · P/N 45621-10 BOLT,SHOULDER Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it $25–$40 eachtypical
10	Platform Gunn Latch NSN 5342-01-260-0215 · P/N 45721-10 LATCH,PLATFORM,GUNN Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $25–$50 eachtypical
11	Flat Washer NSN 5310-00-167-0837 · P/N AN960-616L WASHER,FLAT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	7 in stock
12	Machine Bolt NSN 5306-00-208-3639 · P/N AN6-16A BOLT,MACHINE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
13	Sleeve Spacer NSN 5365-01-267-6769 · P/N 45613-10 SPACER,SLEEVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $25–$55 eachtypical
14	Self-Locking Extended Washer Nut NSN 5310-00-807-1475 · P/N MS21042L4 NUT,SELF-LOCKING,EX Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	10	55 in stock
15	Platf Link Assembly NSN 2590-01-260-0216 · P/N 45619-11 LINK ASSEMBLY,PLATF Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	3 in stock $50–$95 per assemblytypical
16	Single Leg Wire Rope Assembly NSN 1640-01-271-2598 · P/N 45623-10 WIRE ROPE ASSEMBLY, Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	78 in stock
17	Flat Washer NSN 5310-00-167-0836 · P/N AN960-516L WASHER,FLAT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	6	We can source it
18	Self-Locking Extended Washer Nut NSN 5310-00-807-1476 · P/N MS21042L5 NUT,SELF-LOCKING,EX Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	6	We can source it
19	Quick Release Pin NSN 5315-00-765-2190 · P/N BLC5LA13S PIN,QUICK RELEASE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	46 in stock $25–$50 eachtypical
20	RE Bracket Assembly NSN 2590-01-260-0217 · P/N 45616-11 BRACKET ASSEMBLY,RE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	68 in stock $85–$145 per assemblytypical
21	Mounting Bracket NSN 5340-01-260-0218 · P/N 45615-10 BRACKET,MOUNTING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	25 in stock $130.99 per assemblygov't list price
22	Platform Gunne Rail NSN 2590-01-261-0523 · P/N 45608-10 RAIL,PLATFORM,GUNNE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	3 in stock quote only $35–$70 eachtypical
23	Machine Screw NSN 5305-00-043-2682 · P/N MS24694-S98 SCREW,MACHINE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	20 in stock
24	Plain Stud NSN 5307-01-286-6007 · P/N 45610-10 STUD,PLAIN Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $25–$45 eachtypical
25	Angle Bracket NSN 5340-01-271-4281 · P/N 45618-10 BRACKET,ANGLE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $70–$115 eachtypical
26	Self-Locking Extended Washer Nut NSN 5310-00-807-1477 · P/N MS21042L6 NUT,SELF-LOCKING,EX Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	25 in stock
27	Flat Washer NSN 5310-00-167-0834 · P/N 25932 WASHER,FLAT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	11,374 in stock
28	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N AN365-1024A NUT,SELF-LOCKING,HE #10-24 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	118 in stock
29	Machine Screw NSN 5305-01-006-2053 · P/N MS51849-75 SCREW,MACHINE #10-24 X 5/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	We can source it
30	Strap Fastener Loop NSN 5340-01-271-4282 · P/N 43977-12 LOOP,STRAP FASTENER Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it
31	Webbing Strap NSN 5340-01-275-8567 · P/N 45410-19 STRAP,WEBBING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	1,198 in stock $25–$40 eachtypical
32	Machine Bolt NSN 5306-01-263-6142 · P/N 5593345 BOLT,MACHINE 5/16-18 X 2.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	3	We can source it
33	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	10	471 in stock
34	Self-Locking Nut NSN 5310-01-217-0715 · P/N 5591514 NUT,SELF-LOCKING,EX 5/16-18 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	5	We can source it
35	Cap Hexagon Head Screw NSN 5305-00-226-4831 · P/N B1821BH031C150N SCREW,CAP,HEXAGON H 5/16-18 X 1.50 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	221 in stock
36	Double Angle Bracket NSN 5340-01-258-1547 · P/N 5593807 BRACKET,DOUBLE ANGL Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $25–$50 eachtypical
37	Machine Bolt NSN 5306-01-254-2360 · P/N 5592879 BOLT,MACHINE 5/16-18 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
