HMMWV Roof and Mounting Components TM 9-2320-280-24P · Fig. 278

Every part in figure 278 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 18 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

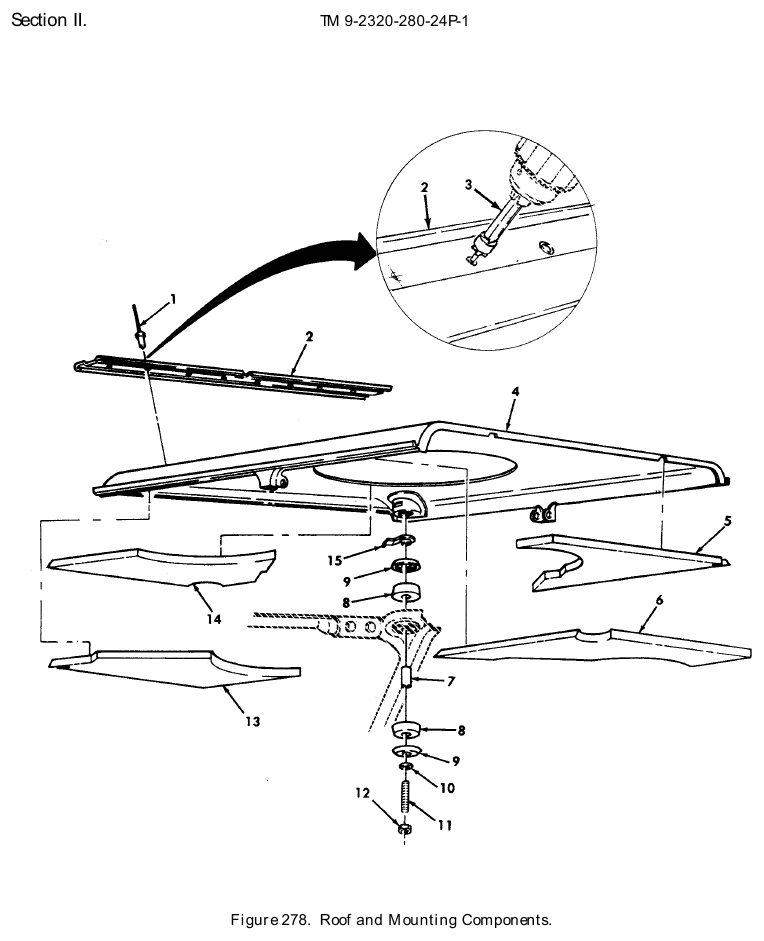

TM 9-2320-280-24P figure 278, Roof and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-135-7319 · P/N NAS9301BNS-6-03 RIVET,BLIND PART OF KIT P/N 57K0223 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	28	72 in stock
2	Spring Tension Clip NSN 5340-01-448-4316 · P/N 12339569 CLIP,SPRING TENSION BLAST SHIELD PART OF KIT P/N 57K0223 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $65–$115 eachtypical
3	Spotweld Cutter P/N 12342805 CUTTER,SPOTWELD PART OF KIT P/N 57K0223 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	Ask us
4	Body Vehicular Panel NSN 2510-01-236-6488 · P/N 5595393 PANEL,BODY,VEHICULA SUPPLEMENTAL ARMOR Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	1	We can source it quote only $6,170.06 per assemblygov't list price
4	Body Vehicular Panel NSN 2510-01-187-3606 · P/N 12339623-1 PANEL,BODY,VEHICULA BASIC ARMOR Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	5 in stock quote only $3,342.68 per assemblygov't list price
4	Body Vehicular Panel NSN 2510-01-192-9723 · P/N 12339623-3 PANEL,BODY,VEHICULA BASIC ARMOR Fits: M966, M966A1, M1121	1	We can source it quote only $9,327.81 per eachgov't list price
4	Roof Panel Assembly NSN 2540-01-236-6489 · P/N 12339631-2 PANEL ASSEMBLY,ROOF SUPPLEMENTAL ARMOR Fits: M1045, M1045A1, M1045A2, M1046, M1046A1	1	We can source it quote only $5,197.85 per assemblygov't list price
5	Roof Vehicular Left Liner NSN 2510-01-205-2507 · P/N 12339624-1 LINER,ROOF,VEHICULA REAR,L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	50 in stock $55–$95 eachtypical
6	Vehicular Insulation NSN 2540-01-203-9872 · P/N 12339624-2 INSULATION,THERMAL, REAR,R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	29 in stock $50–$90 eachtypical
7	Sleeve Spacer NSN 5365-01-216-0364 · P/N 12338186-52 SPACER,SLEEVE Fits: M966, M966A1, M1025, M1026, M1043, M1044 and 4 more	5	12 in stock
8	Resilient Utility Mount NSN 5340-01-211-0838 · P/N 5584891 MOUNT,RESILIENT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	500 in stock $25.00our price Buy online ↗
9	Snubber Vehicular Plate NSN 2540-01-192-5949 · P/N 12339561 PLATE,SNUBBER,VEHIC Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	12,211 in stock
10	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	6 in stock
11	Plain Stud NSN 5307-01-254-2504 · P/N 12339559 STUD,PLAIN 3/8-16 X 3.75 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	59 in stock
12	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	219 in stock
13	Roof Front L Panel NSN 2590-01-205-2506 · P/N 12339626-1 PANEL,ROOF,FRONT,L FRONT,L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	55 in stock $305.89 per eachgov't list price
14	Roof Vehicular Front Liner NSN 2510-01-203-9873 · P/N SF-5590748 LINER,ROOF,VEHICULA FRONT,R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 7 more	1	14 in stock quote only $85–$145 eachtypical
15	Double Angle Bracket NSN 5340-01-203-9391 · P/N 5583231 BRACKET,DOUBLE ANGL Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	5 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
