HMMWV Crew Door Assembly, Rear, Ballistic TM 9-2320-280-24P · Fig. 281

Every part in figure 281 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 72 lines, 45 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

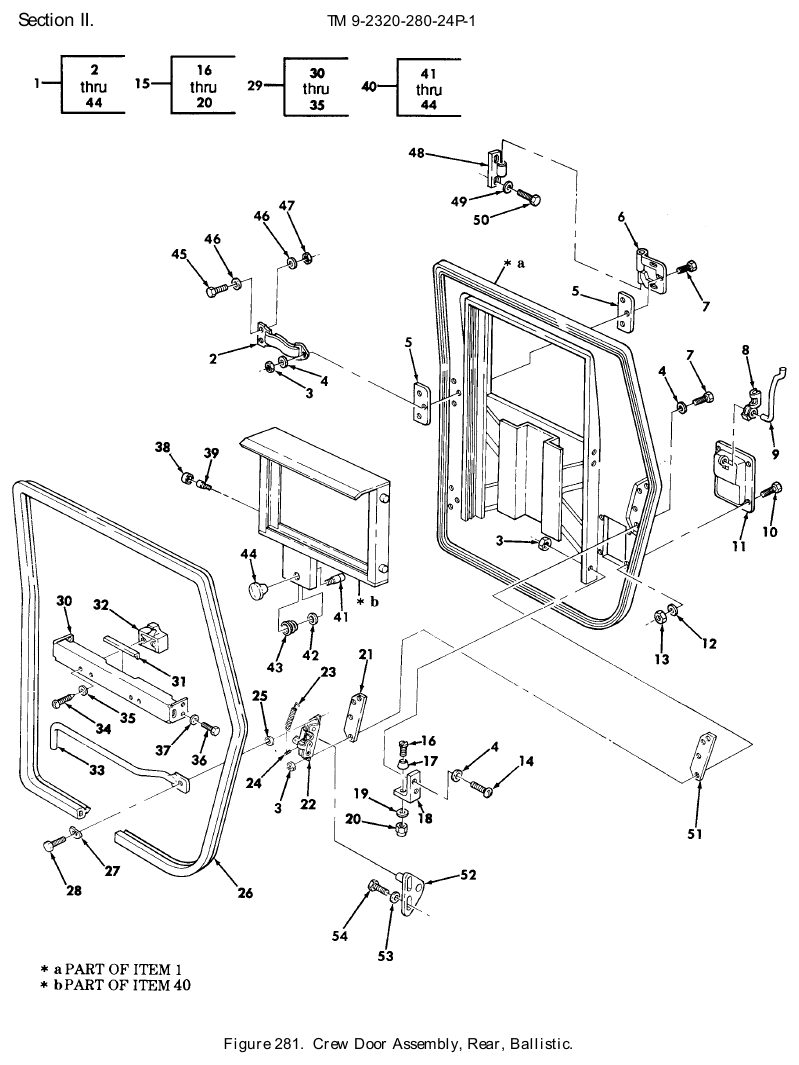

TM 9-2320-280-24P figure 281, Crew Door Assembly, Rear, Ballistic: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Door NSN 2510-01-254-1501 · P/N 12339473-1 DOOR,VEHICULAR BASIC ARMOR,L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	147 in stock $1,250.00our price Buy online ↗
1	Vehicular Door NSN 2510-01-257-3904 · P/N 12339473-2 DOOR,VEHICULAR BASIC ARMOR,R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	54 in stock $1,445.00our price Buy online ↗
1	Vehicular Door NSN 2541-01-257-3876 · P/N 12339477-1 DOOR,VEHICULAR SUPPLEMENTAL ARMOR, L.H Fits: M1043, M1043A1, M1044, M1044A1, M1045, M1045A1 and 3 more	1	We can source it quote only $3,616.64 per assemblygov't list price
1	Vehicular Door NSN 2541-01-254-1483 · P/N 12339477-2 DOOR,VEHICULAR SUPPLEMENTAL ARMOR, R.H Fits: M1043, M1043A1, M1044, M1044A1, M1045, M1045A1 and 3 more	1	We can source it quote only $4,366.90 per eachgov't list price
2	Webbing Strap NSN 5340-01-253-8971 · P/N 45262-13 STRAP,WEBBING UPPER HINGE,L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $40–$75 eachtypical
2	Webbing Strap NSN 5340-01-255-9918 · P/N 45262-11 STRAP,WEBBING UPPER HINGE,R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $35–$65 eachtypical
3	Self-Locking Hexagon Nut NSN 5310-01-254-4284 · P/N 12339730 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	14	50 in stock
4	Flat Washer NSN 5310-01-253-8949 · P/N 5592926 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	20	We can source it
5	Plate Spacer NSN 5365-01-201-4749 · P/N 5584436 SPACER,PLATE INNER AND OUTER HINGE,SUPPLEMENTAL ARMOR Fits: M1043, M1043A1, M1044, M1044A1, M1045, M1045A1 and 3 more	2	690 in stock
5	Plate Spacer NSN 5365-01-201-4749 · P/N 5584436 SPACER,PLATE INNER AND OUTER HINGE,BASIC ARMOR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	4	690 in stock
6	Butt Hinge Leaf NSN 5340-01-204-2458 · P/N 5584325 LEAF,BUTT HINGE LOWER,L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	7 in stock $50–$95 eachtypical
6	Access Door Hinge NSN 5340-01-199-3498 · P/N 12339448-1 HINGE,ACCESS DOOR UPPER,L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	4 in stock $167.18 per eachgov't list price
6	Butt Hinge Leaf NSN 5340-01-197-8675 · P/N 5584867 LEAF,BUTT HINGE UPPER,R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	2 in stock $50–$90 eachtypical
6	Butt Hinge Leaf NSN 5340-01-201-9076 · P/N 12339448-4 LEAF,BUTT HINGE LOWER,R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $40–$85 eachtypical
7	Machine Screw NSN 5305-00-482-6825 · P/N MS35206-345 SCREW,MACHINE 1/4-20 X 1.38 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	10	We can source it
8	Rod Retainer Clip NSN 5340-01-198-2240 · P/N HS99417 CLIP-CLEVIS,ROD RET L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	5 in stock
8	Rod Retainer Clip NSN 5340-01-198-2241 · P/N HS99338 CLIP-CLEVIS,ROD RET R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	4 in stock
9	Rear Latch Hook NSN 2540-01-201-2356 · P/N 12339377-1 HOOK,REAR LATCH L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	2 in stock $30–$55 eachtypical
9	Rear Latch Hook NSN 2540-01-201-2357 · P/N 12339377-2 HOOK,REAR LATCH R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	81 in stock $50–$85 eachtypical
10	Machine Screw NSN 5305-00-984-6196 · P/N MS35206-248 SCREW,MACHINE #8-32 X 7/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it
11	Recess Handle NSN 5340-01-209-4870 · P/N 249 HANDLE,RECESS Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	2 in stock $40–$75 eachtypical
12	Flat Washer NSN 5310-01-253-8952 · P/N 5593241 WASHER,FLAT #8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	41 in stock
13	Self-Locking Hexagon Nut NSN 5310-01-198-3487 · P/N 12339728-3 NUT,SELF-LOCKING,HE #8-32 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it
14	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it
15	Window Frame Stop Assembly NSN 2510-01-196-5316 · P/N 12339416-1 STOP ASSEMBLY,WINDO L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	4 in stock $30–$60 per assemblytypical
15	Window Stop Assembly NSN 5342-01-195-8039 · P/N 12339416-2 STOP ASSEMBLY,WINDO R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $30–$65 per assemblytypical
16	Machine Screw NSN 5305-00-984-6214 · P/N MS35206-267 SCREW,MACHINE #10-24 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	284 in stock
17	Bumper NSN 5340-01-203-8675 · P/N ZB-1079M.I. BUMPER,NONMETALLIC Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	22 in stock
18	Angle Bracket NSN 5340-01-203-0324 · P/N 5584421 BRACKET,ANGLE L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
18	Angle Bracket NSN 5340-01-195-9107 · P/N 12339404-2 BRACKET,ANGLE R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $25–$50 eachtypical
19	Flat Washer NSN 5310-01-253-8953 · P/N 5593242 WASHER,FLAT #10 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $35–$65 eachtypical
20	Self-Locking Hexagon Nut NSN 5310-01-203-3217 · P/N 5584710 NUT,SELF-LOCKING,HE #10-24 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
21	Plate Spacer NSN 5365-01-197-9383 · P/N 5584299 SPACER,PLATE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1,920 in stock $12.73our price Buy online ↗
22	Door Vehicular Latch NSN 2540-01-197-4900 · P/N 9-300-U-L LATCH,DOOR,VEHICULA L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	198 in stock $85–$140 eachtypical
22	Door Vehicular Latch NSN 2540-01-196-5317 · P/N 9-300-U-R LOCK,DOOR,VEHICULAR R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1,072 in stock $35.00our price Buy online ↗
23	Helical Extension Spring NSN 5360-01-282-9316 · P/N 2-300-P5 SPRING,HELICAL,EXTE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	19 in stock
24	Straight Headed Pin NSN 5315-01-300-3012 · P/N 565698-4 PIN,STRAIGHT,HEADED Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
25	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1,146 in stock $7.83our price Buy online ↗
26	Nonmetallic Special Shaped Seal NSN 5330-01-196-7969 · P/N 12339462 SEAL,NONMETALLIC SP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	40 in stock $25–$55 eachtypical
27	Spring Tension Washer NSN 5310-01-198-3428 · P/N 5584713 WASHER,SPRING TENSI 3/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
28	Machine Bolt NSN 5306-01-204-2139 · P/N 5589067 BOLT,SELF,LOCKING 1/4-20 X 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $25–$40 eachtypical
29	Latch Assembly Bracket NSN 5340-01-197-6714 · P/N 5584260 BRACKET,LATCH ASSEM L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1 in stock $75–$125 per assemblytypical
29	Door Vehicular Latch NSN 2540-01-198-7581 · P/N 5584261 LATCH,DOOR,VEHICULA R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	6 in stock $55–$105 per assemblytypical
30	Bracket Assembly P/N 5588063 BRACKET ASSEMBLY Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	Ask us
31	Edge Make From Pad Protector P/N 5584707 PROTECTOR,EDGE MAKE FROM PAD,P/N 12339902-1,8.90 INCHES LONG Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	Ask us
32	Door Latch Vehicular Guide NSN 2510-01-199-1499 · P/N 12339450 GUIDE,DOOR LATCH VE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	774 in stock
33	Remote Control Lever NSN 3040-01-195-4173 · P/N 12339451-1 LEVER,REMOTE CONTRO L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	3 in stock $55–$95 eachtypical
33	Remote Control Lever NSN 3040-01-196-1493 · P/N 12339451-2 LEVER,REMOTE CONTRO R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it $45–$85 eachtypical
34	Tapping Screw NSN 5305-00-432-4205 · P/N MS51861-49 SCREW,TAPPING #10-16 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	99 in stock
35	Flat Washer NSN 5310-01-253-8953 · P/N 5593242 WASHER,FLAT #10 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it $35–$65 eachtypical
36	Machine Screw NSN 5305-00-984-6193 · P/N MS35206-245 SCREW,MACHINE #10-16 X 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	12 in stock
37	Flat Washer NSN 5310-01-253-8952 · P/N 5593241 WASHER,FLAT #8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	V	41 in stock
38	Knob NSN 5355-01-252-6504 · P/N 12339380 KNOB Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	20 in stock
39	Shoulder Headless Pin NSN 5315-01-204-2328 · P/N 5584278 PIN,SHOULDER,HEADLE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it
40	Transparent Vehicular Wind Armor NSN 2510-01-189-9748 · P/N 12339374-2 WINDOW ASSEMBLY,VEH BALLISTIC REAR DOOR,BASIC,L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	7 in stock quote only $511.13 per assemblygov't list price
40	Transparent Vehicular Wind Armor NSN 2541-01-209-3450 · P/N 12339375-1 WINDOW,VEHICULAR BALLISTIC REAR DOOR,SUPPLEMENTAL,L.H Fits: M1043, M1043A1, M1044, M1044A1, M1045, M1045A1 and 3 more	1	59 in stock quote only $1,013.57 per assemblygov't list price
40	Transparent Vehicular Wind Armor NSN 2510-01-188-7381 · P/N 12339374-1 WINDOW ASSEMBLY,VEH BALLISTIC REAR DOOR,BASIC,R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	12 in stock quote only $753.21 per assemblygov't list price
40	Transparent Vehicular Wind Armor NSN 2541-01-196-5506 · P/N 12339375-2 WINDOW,VEHICULAR BALLISTIC,REAR DOOR,SUPPLEMENTAL,R.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	1 in stock quote only $621.21 per eachgov't list price
41	Shoulder Headless Pin NSN 5315-01-203-8543 · P/N 12339726 PIN,SHOULDER,HEADLE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	2 in stock
42	Retaining Ring NSN 5325-00-442-5845 · P/N MS16633-1050 RING,RETAINING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	695 in stock
43	Helical Compression Spring NSN 5360-01-198-3525 · P/N 12339369 SPRING,HELICAL,COMP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	We can source it
44	Knob NSN 5355-01-298-8571 · P/N 1-236-005 KNOB Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	1 in stock $25–$40 eachtypical
45	Machine Bolt NSN 5306-00-225-9089 · P/N MS90726-34 BOLT,MACHINE 5/16-24 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	1,631 in stock
46	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	1,368 in stock
47	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	904 in stock
48	Hinge Mount NSN 5342-01-203-2822 · P/N 12338650 MOUNT,RESILIENT A-PILLAR,REAR DOOR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	24,044 in stock $10.00our price Buy online ↗
49	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	2,325 in stock
50	Machine Bolt NSN 5306-01-323-5535 · P/N 5585259 BOLT,MACHINE 1/4-20 X 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	1,653 in stock
51	Plate Spacer NSN 5365-01-253-8980 · P/N 12339379 SPACER,PLATE 0.063 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
52	Catch Strike NSN 5340-01-421-1782 · P/N 12339386 STRIKE,CATCH Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	5 in stock $35–$75 eachtypical
53	Flat Washer NSN 5310-01-253-8949 · P/N 5592926 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it
54	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	We can source it

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
