HMMWV TOW Electrical Cables and Mounting Hardware TM 9-2320-280-24P · Fig. 282

Every part in figure 282 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 23 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

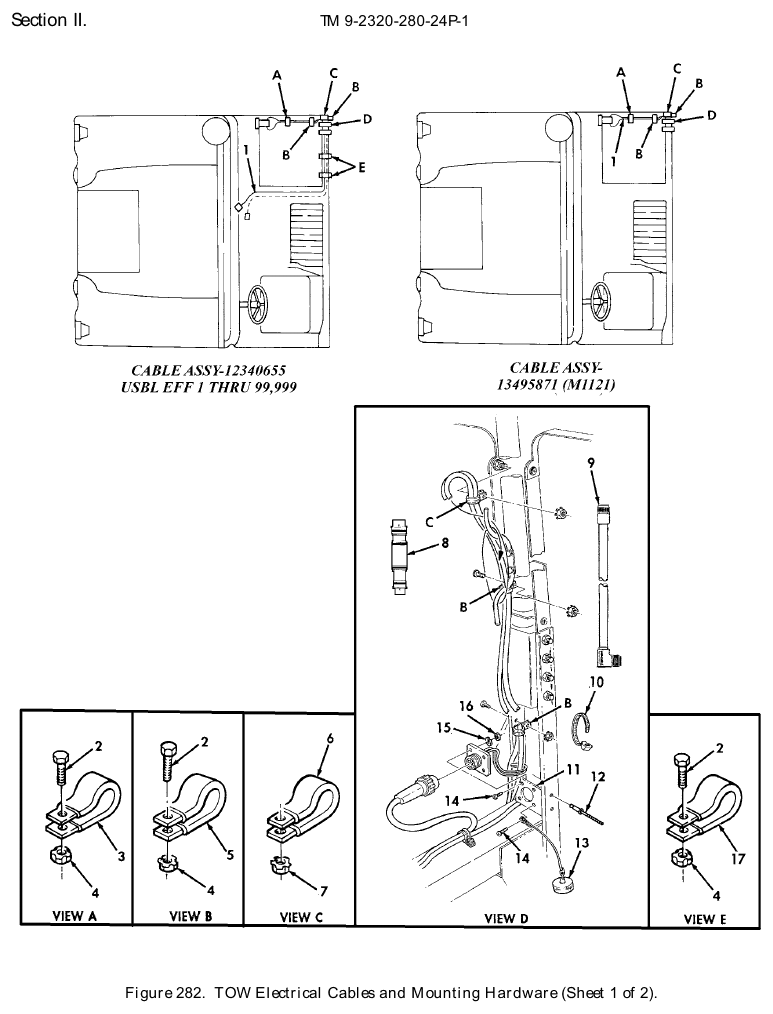

TM 9-2320-280-24P figure 282, TOW Electrical Cables and Mounting Hardware, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Branched Wiring Harness NSN 5995-01-195-1918 · P/N 12340655 WIRING HARNESS,BRAN USBL EFF 1 THRU 99,999 Fits: M966, M966A1	1	We can source it quote only $421.68 per eachgov't list price
1	Branched Wiring Harness NSN 5995-01-339-0190 · P/N 12340655-1 WIRING HARNESS,BRAN USBL EFF 100, 000 AND ABOVE OR VEHICLES WITH SLAVE RECE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	1 in stock $711.89 per eachgov't list price
1	Power Electrical Cable Assembly NSN 6150-01-452-3557 · P/N 13495871 CABLE ASSEMBLY,POWE Fits: M1121	1	We can source it quote only
2	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X 1/2 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	5	We can source it
3	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	5 in stock
4	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	474 in stock
5	Loop Clamp NSN 5340-00-989-9222 · P/N MS21333-74 CLAMP,LOOP USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
5	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP USBL EFF 1 THRU 99,999 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	787 in stock
6	Loop Clamp NSN 5340-00-057-3052 · P/N MS21333-114 CLAMP,LOOP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
7	Plain Assembled Washer Nut NSN 5310-00-933-4310 · P/N 271184 NUT,PLAIN,ASSEMBLED 5/16-18 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	1 in stock
8	Battery Pwr Source NSN 5935-01-457-2965 · P/N 13480720 BATTERY PWR SOURCE Fits: M1121	1	We can source it quote only
9	Power Electrical Cable Assembly NSN 6150-01-457-2964 · P/N 13493198 CABLE ASSEMBLY,POWE Fits: M1121	1	We can source it quote only $3,165.74 per eachgov't list price
10	Tie Down Electrical Compon Strap NSN 5975-00-899-4606 · P/N MS3367-2-0 STRAP,TIEDOWN,ELECT Fits: M1121	V	472 in stock $34.30our price Buy online ↗
11	Double Angle Bracket NSN 5340-01-476-6612 · P/N 12340654 BRACKET,DOUBLE ANGL Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	We can source it $35–$70 eachtypical
11	Double Angle Bracket NSN 5340-01-467-2127 · P/N 13495916 BRACKET,DOUBLE ANGL Fits: M1121	1	We can source it $55–$100 eachtypical
12	Blind Rivet NSN 5320-00-957-2507 · P/N MS20604AD6W4 RIVET,BLIND 3/8 Fits: M1121	4	We can source it
13	Electrical Connector Cover NSN 5935-00-338-2822 · P/N 7261674 COVER,ELECTRICAL CO Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	5 in stock $30–$60 eachtypical
14	Machine Screw NSN 5305-00-984-6195 · P/N MS35206-247 SCREW,MACHINE #8-32 X 3/4,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
14	Machine Screw NSN 5305-00-054-5650 · P/N 15406-022 SCREW,MACHINE #4-40 X 7/16,USBL EFF 1 THRU 99,999 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	4	We can source it
15	Lock Washer NSN 5310-00-933-8118 · P/N S147-1 WASHER,LOCK #4,USBL EFF 1 THRU 99, 999 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	4	50 in stock
16	Plain Assembled Washer Nut NSN 5310-01-069-5243 · P/N 271163 NUT,PLAIN,ASSEMBLED #8-32,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	39 in stock
16	Plain Hexagon Nut NSN 5310-00-934-9748 · P/N S45043-3405 NUT,PLAIN,HEXAGON #4-40,USBL EFF 1 THRU 99,999 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	4	We can source it
17	Loop Clamp NSN 5340-00-958-8457 · P/N MS21333-78 CLAMP,LOOP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	13 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
