HMMWV Rear Step Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 293

Every part in figure 293 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 35 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

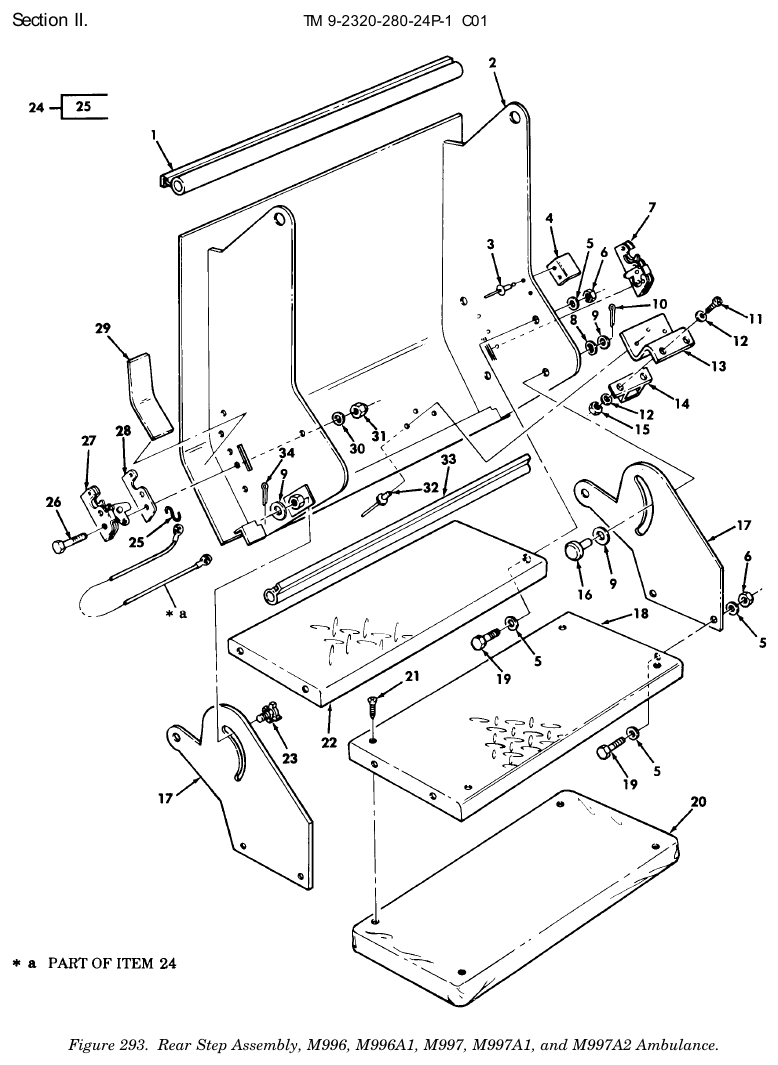

TM 9-2320-280-24P figure 293, Rear Step Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Seal NSN 5330-01-265-8803 · P/N 12341211-1 SEAL,PLAIN Fits: M996, M996A1, M997, M997A1, M997A2	1	4 in stock $25–$40 eachtypical
2	Structural Vehicular Frame NSN 2510-01-280-4240 · P/N 12341250 FRAME,STRUCTURAL,VE Fits: M996, M996A1, M997, M997A1, M997A2	1	3 in stock $311.12 per eachgov't list price
3	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
4	Mounting Bracket NSN 5340-01-272-8397 · P/N 12342003 BRACKET,MOUNTING Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
5	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	16	We can source it
6	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M996, M996A1, M997, M997A1, M997A2	8	219 in stock
7	Door Vehicular Latch NSN 2540-01-425-1617 · P/N 5598864 LATCH,DOOR,VEHICULA R.H Fits: M996, M996A1, M997, M997A1, M997A2	1	2 in stock $70–$120 per assemblytypical
8	Spring Tension Washer NSN 5310-01-105-9398 · P/N U500-0113 WASHER,SPRING TENSI 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	3	We can source it
9	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	7	428 in stock $27.99our price Buy online ↗
10	Cotter Pin NSN 5315-00-839-5820 · P/N MS24665-134 PIN,COTTER 1/8 X 1.00 Fits: M996, M996A1, M997, M997A1, M997A2	3	121 in stock
11	Machine Screw NSN 5305-00-984-6212 · P/N MS35206-265 SCREW,MACHINE .190-24 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	4	177 in stock
12	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	8	909 in stock
13	Double Angle Bracket NSN 5340-01-274-3295 · P/N 12341276 BRACKET,DOUBLE ANGL Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $25–$55 eachtypical
14	Catch Strike NSN 5340-01-266-3845 · P/N 5588959 STRIKE,CATCH Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
15	Plain Hexagon Nut NSN 5310-00-934-9764 · P/N MS35649-205 NUT,PLAIN,HEXAGON .190-24 Fits: M996, M996A1, M997, M997A1, M997A2	4	24 in stock
16	Straight Headed Pin NSN 5315-00-140-1938 · P/N MS35810-6 PIN,STRAIGHT,HEADED 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	3	3 in stock
17	Structural Vehicul Frame Section NSN 2510-01-265-3155 · P/N 12341073 FRAME SECTION,STRUC Fits: M997, M997A1, M997A2	2	We can source it $50–$85 eachtypical
17	Step Side Plate NSN 2510-01-265-3157 · P/N 5597895 SIDE PLATE,STEP Fits: M996, M996A1	2	We can source it $80–$135 eachtypical
18	Vehicle Boarding Step NSN 2540-01-280-4159 · P/N 5589776 STEP,VEHICLE BOARDI Fits: M996, M996A1, M997, M997A1, M997A2	1	50 in stock $80–$135 eachtypical
19	Cap Hexagon Head Screw NSN 5305-00-989-0830 · P/N 186678 SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
20	Seat Vehicular Cushion NSN 2540-01-271-1991 · P/N 12341168 CUSHION,SEAT,VEHICU Fits: M996, M996A1, M997, M997A1, M997A2	1	9 in stock $45–$90 eachtypical
21	Tapping Screw NSN 5305-01-283-7776 · P/N 5593432 SCREW,TAPPING #10-16 X .75 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
22	Upper Step Assembly NSN 2510-01-265-3194 · P/N 12341092-1 STEP ASSEMBLY,UPPER Fits: M996, M996A1, M997, M997A1, M997A2	1	6 in stock $194.86 per eachgov't list price
23	Knob NSN 5355-01-032-7430 · P/N 12460217 KNOB Fits: M996, M996A1, M997, M997A1, M997A2	1	8 in stock $25–$60 eachtypical
24	Single Leg Wire Rope Assembly NSN 4010-01-299-7699 · P/N 12342007 WIRE ROPE ASSEMBLY, Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$45 eachtypical
25	Chain S Hook NSN 4030-00-948-7315 · P/N MS87006-33 HOOK,CHAIN,S Fits: M996, M996A1, M997, M997A1, M997A2	4	180 in stock
26	Cap Hexagon Head Screw NSN 5305-00-071-2512 · P/N B1821BH025C225N SCREW,CAP,HEXAGON H 1/4-20 X 2.25 Fits: M996, M996A1, M997, M997A1, M997A2	6	92 in stock
27	Step Latch Assembly NSN 5342-01-265-1129 · P/N S450XXLXBZXX LATCH ASSEMBLY,STEP L.H Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $35–$70 per assemblytypical
28	Plate Spacer NSN 5365-01-298-7780 · P/N 12342002 SPACER,PLATE Fits: M996, M996A1, M997, M997A1, M997A2	2	16 in stock
29	Gasket NSN 5330-01-281-0911 · P/N 5597687 GASKET Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
30	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	6	2,325 in stock
31	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M996, M996A1, M997, M997A1, M997A2	6	626 in stock
32	Blind Rivet NSN 5320-01-085-9995 · P/N NAS9301BNS-6-07 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	6	We can source it
33	Plain Seal NSN 5330-01-265-9231 · P/N 12341211-4 SEAL,PLAIN Fits: M996, M996A1, M997, M997A1, M997A2	1	4 in stock
34	Cotter Pin NSN 5315-01-206-7135 · P/N G121224 PIN,COTTER Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
