HMMWV Rear Step Mounting Hardware, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 292

Every part in figure 292 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 22 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

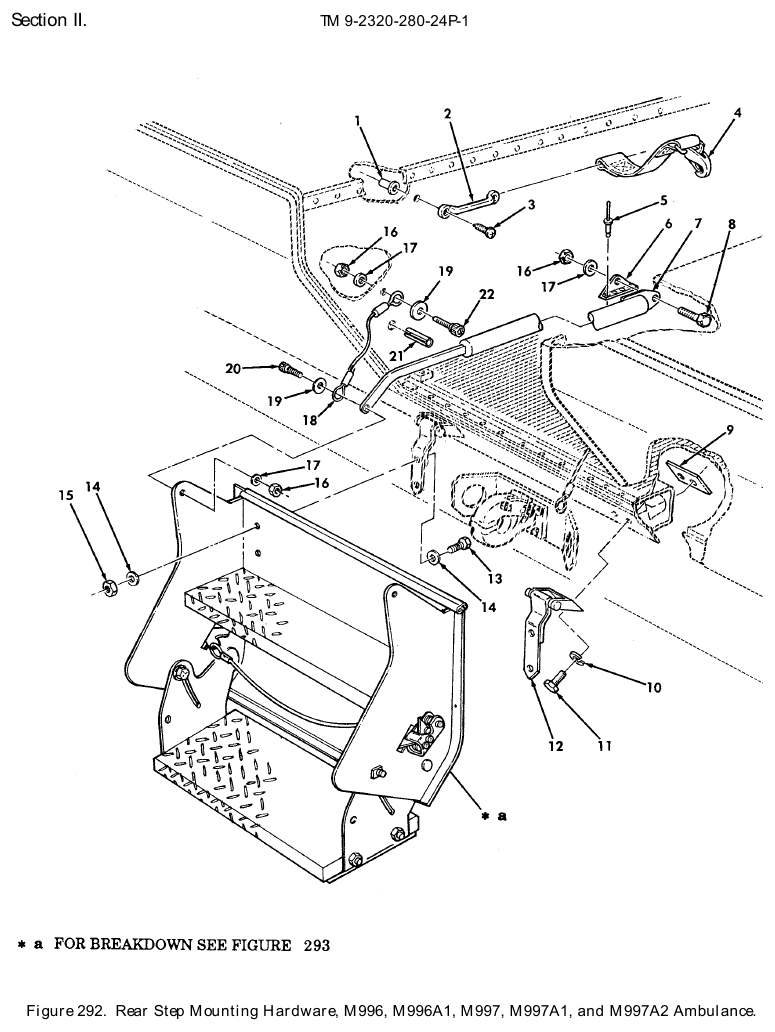

TM 9-2320-280-24P figure 292, Rear Step Mounting Hardware, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Blind Rivet Nut NSN 5310-00-074-2351 · P/N MS27130-29 NUT,PLAIN,BLIND RIV #10-32 X 7/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
2	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock
3	Machine Screw NSN 5305-00-180-4966 · P/N MS51849-64 SCREW,MACHINE Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
4	Webbing Strap NSN 5340-01-386-6067 · P/N 12341382 STRAP,WEBBING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$50 eachtypical
5	Blind Rivet NSN 5320-01-135-7319 · P/N CR-213-6-3 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	4	72 in stock
6	Angle Bracket NSN 5340-01-288-2127 · P/N 5598052 BRACKET,ANGLE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $35–$65 eachtypical
7	Retractable Stepped NSN 2540-01-265-3160 · P/N 12341176 STEPPED,RETRACTABLE Fits: M996, M996A1, M997, M997A1, M997A2	1	13 in stock $240.10our price Buy online ↗
8	Cap Hexagon Head Screw NSN 5305-00-989-0830 · P/N 186678 SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
9	Nut Strip NSN 5310-01-272-4823 · P/N 5933974 NUT STRIP Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
10	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	4	2,325 in stock
11	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M996, M996A1, M997, M997A1, M997A2	4	559 in stock
12	Tee Hinge NSN 5340-01-265-8859 · P/N J8UBXXFXBZ01 HINGE,TEE Fits: M996, M996A1, M997, M997A1, M997A2	2	79 in stock $25–$55 eachtypical
13	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.125 Fits: M996, M996A1, M997, M997A1, M997A2	4	84,127 in stock
14	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M996, M996A1, M997, M997A1, M997A2	8	471 in stock
15	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M996, M996A1, M997, M997A1, M997A2	4	354 in stock
16	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M996, M996A1, M997, M997A1, M997A2	2	219 in stock
17	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	5	We can source it
18	Single Leg Wire Rope Assembly NSN 4010-01-266-3842 · P/N 5934065 WIRE ROPE ASSEMBLY, Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
19	Flat Washer NSN 5310-00-809-5997 · P/N MS27183-17 WASHER,FLAT 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	4	82 in stock
20	Shoulder Screw NSN 5305-01-272-8323 · P/N 12341791-2 SCREW,SHOULDER 3/8-16 X 5/8 Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock
21	Spring Pin NSN 5315-01-278-2123 · P/N MS51987-117 PIN,SPRING 3/16 X 1.25 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
22	Shoulder Screw NSN 5305-01-272-8322 · P/N 12341791-1 SCREW,SHOULDER 3/8-16 X 5/8 Fits: M996, M996A1, M997, M997A1, M997A2	3	7 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
