HMMWV Two and Four Liter Ambulance Body, Mounting Hardware and Seals, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 295

Every part in figure 295 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 13 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

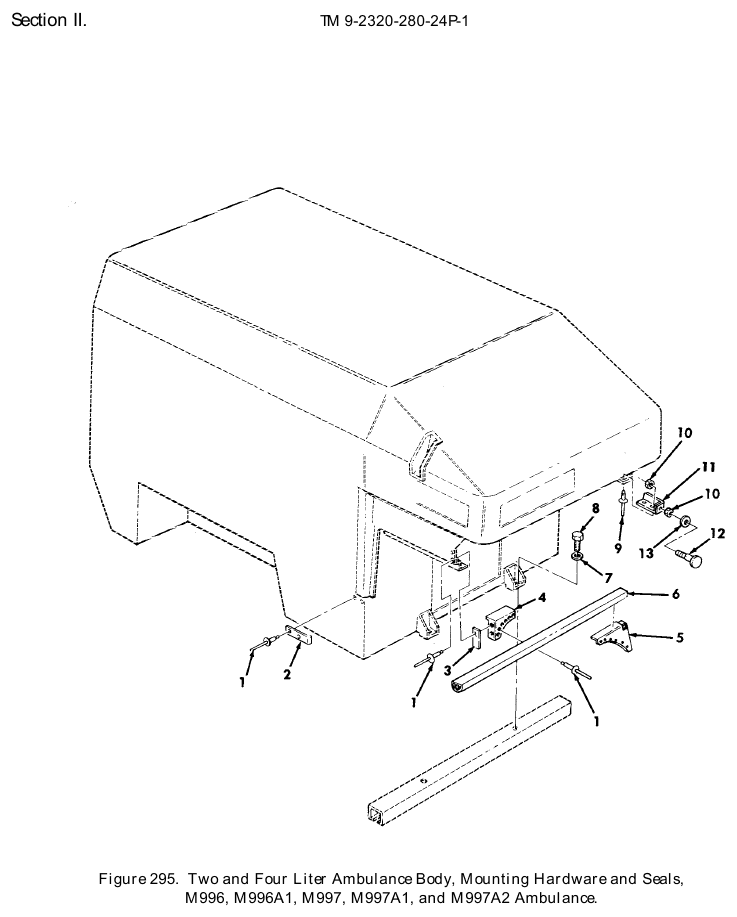

TM 9-2320-280-24P figure 295, Two and Four Liter Ambulance Body, Mounting Hardware and Seals, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND WHEELHOUSE SEAL,3/16 Fits: M996, M996A1, M997, M997A1, M997A2	14	We can source it
2	Angle Bracket NSN 5340-01-290-2265 · P/N 5598163 BRACKET,ANGLE Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
3	Gasket NSN 5330-01-272-7473 · P/N 5589947 GASKET Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
4	Windshield Extension NSN 2510-01-270-9447 · P/N 5585446 EXTENSION,WINDSHIEL R.H Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $45–$90 eachtypical
5	Vehicular Components Bracket NSN 2590-01-270-9446 · P/N 5585445 BRACKET,VEHICULAR C L.H Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $30–$60 eachtypical
6	Seal NSN 5330-01-197-8298 · P/N ORD-112 SEAL Fits: M996, M996A1, M997, M997A1, M997A2	1	8 in stock $35–$65 eachtypical
7	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	2	428 in stock $27.99our price Buy online ↗
8	Cap Hexagon Head Screw NSN 5305-00-071-2071 · P/N B1821BH050C200N SCREW,CAP,HEXAGON H 1/2-13 X 2.00 Fits: M996, M996A1, M997, M997A1, M997A2	2	447 in stock
9	Blind Rivet NSN 5320-01-264-5978 · P/N 12339355-2 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	42	We can source it
10	Plain Hexagon Nut NSN 5310-00-880-7744 · P/N MS51967-5 NUT,PLAIN,HEXAGON 5/16-18 Fits: M996, M996A1, M997, M997A1, M997A2	4	1,817 in stock
11	Mounting Bracket NSN 5340-01-289-3245 · P/N 5598904 BRACKET,MOUNTING Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
12	Special Bumper NSN 5342-01-289-7708 · P/N 4375 BUMPER,SPECIAL Fits: M996, M996A1, M997, M997A1, M997A2	2	19 in stock $17.62our price Buy online ↗
13	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 5/16 Fits: M996, M996A1, M997, M997A1, M997A2	2	428 in stock $27.99our price Buy online ↗

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
