HMMWV Two and Four Liter Ambulance Body Mounting Hardware and Seals, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 296

Every part in figure 296 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 19 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

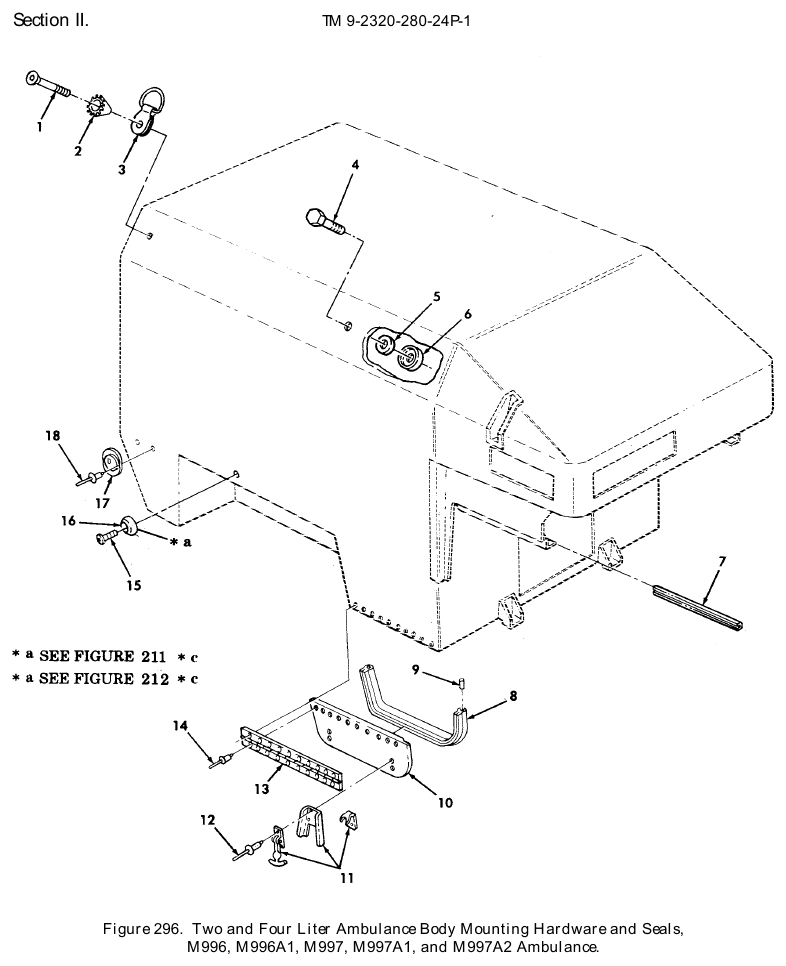

TM 9-2320-280-24P figure 296, Two and Four Liter Ambulance Body Mounting Hardware and Seals, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Socket Head Screw NSN 5305-00-052-2232 · P/N MS24667-77 SCREW,CAP,SOCKET HE Fits: M996, M996A1, M997, M997A1, M997A2	4	200 in stock
2	Lock Washer NSN 5310-00-957-2677 · P/N MS35336-53 WASHER,LOCK Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
3	Cargo Vehicle Tie Down NSN 3990-01-314-8393 · P/N 12342077 TIE DOWN,CARGO,VEHI Fits: M996, M996A1, M997, M997A1, M997A2	4	1 in stock
4	Cap Hexagon Head Screw NSN 5305-00-071-2066 · P/N B1821BH050C100N SCREW,CAP,HEXAGON H Fits: M996, M996A1, M997, M997A1, M997A2	4	1 in stock
5	Gasket NSN 5330-01-274-6106 · P/N 12341700 GASKET Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
6	Helical Compression Spr Retainer NSN 5340-01-214-4992 · P/N 12339545 RETAINER,HELICAL CO Fits: M996, M996A1, M997, M997A1, M997A2	4	271 in stock
7	Nonmetallic Channel NSN 9390-01-282-9949 · P/N ZX-4597 NONMETALLIC CHANNEL Fits: M996, M996A1, M997, M997A1, M997A2	2	615 in stock $25.00our price Buy online ↗
8	Nonmetallic Special Shaped Seal NSN 5330-01-275-3381 · P/N ZX-2024 SEAL,NONMETALLIC SP Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
9	Rubber Round Section NSN 5330-01-298-6009 · P/N 12340926-3 RUBBER ROUND SECTIO Fits: M996, M996A1, M997, M997A1, M997A2	8	We can source it
10	Hatch Vehicle Door NSN 2510-01-270-7925 · P/N 5588931 DOOR,HATCH,VEHICLE STOWAGE,L.H Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock $100–$165 eachtypical
10	Hatch Vehicle Door NSN 2510-01-270-6487 · P/N 5588932 DOOR,HATCH,VEHICLE STOWAGE,R.H Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock $115.06 per eachgov't list price
11	Clamping Catch NSN 5340-01-271-6461 · P/N F35SRBXXBZXX CATCH,CLAMPING Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $25–$50 eachtypical
12	Blind Rivet NSN 5320-00-083-5009 · P/N ADS43 RIVET,BLIND 1/8 Fits: M996, M996A1, M997, M997A1, M997A2	16	641 in stock
13	Butt Hinge NSN 5340-01-297-1549 · P/N 5592234 HINGE,BUTT Fits: M996, M996A1, M997, M997A1, M997A2	2	5 in stock $30–$65 eachtypical
14	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	40	We can source it
15	Machine Screw NSN 5305-00-071-1318 · P/N MS51957-83 SCREW,MACHINE Fits: M996, M996A1, M997, M997A1, M997A2	2	6 in stock
16	Door Holder NSN 5340-01-309-7900 · P/N 5589853-A HOLDER,DOOR Fits: M996, M996A1, M997, M997A1, M997A2	2	14 in stock $30–$60 eachtypical
17	Indicating Clearance Reflector NSN 9905-00-205-2795 · P/N MS35387-1 REFLECTOR,INDICATIN Fits: M996, M996A1, M997, M997A1, M997A2	2	1,078 in stock $14.70our price Buy online ↗
18	Solid Rivet NSN 5320-01-271-1834 · P/N 5575940 RIVET,SOLID 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
