HMMWV Hose Assembly, Blower to Filter, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 301

Every part in figure 301 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 8 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

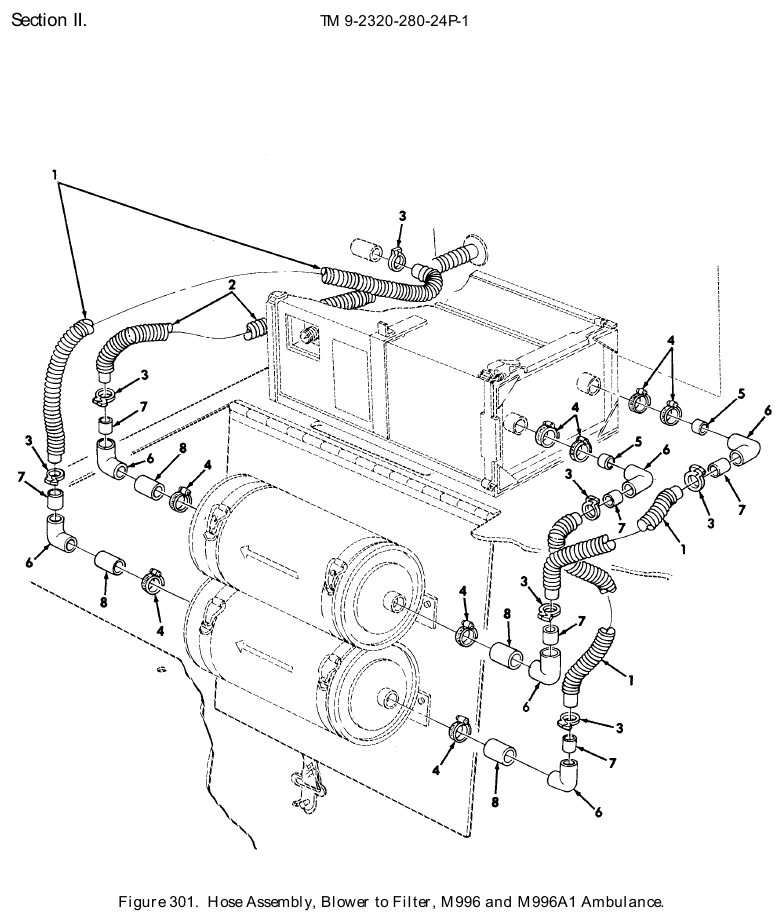

TM 9-2320-280-24P figure 301, Hose Assembly, Blower to Filter, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Hose NSN 4720-01-265-3237 · P/N 12341795-1 HOSE,NONMETALLIC Fits: M996, M996A1	3	1 in stock $60–$100 eachtypical
2	Nonmetallic Hose Assembly NSN 4720-01-265-3222 · P/N 12341795-2 HOSE ASSEMBLY,NONME Fits: M996, M996A1	1	We can source it $171.98 per eachgov't list price
3	Hose Clamp NSN 4730-01-238-4371 · P/N SNP22 CLAMP,HOSE Fits: M996, M996A1	7	We can source it
4	Hose Clamp NSN 4730-00-908-3193 · P/N WWD48-58H CLAMP,HOSE Fits: M996, M996A1	8	168 in stock
5	Nonmetallic Tubing NSN 4720-01-384-1212 · P/N 12341586-3 TUBING,NONMETALLIC Fits: M996, M996A1	2	We can source it $141.95 per eachgov't list price
6	Tube Elbow NSN 4730-01-265-3166 · P/N 12341583 ELBOW,TUBE Fits: M996, M996A1	6	We can source it
7	Nonmetallic Make From Pipe Tubing P/N 12341587-20 TUBING,NONMETALLIC MAKE FROM PIPE, P/N D1785, 1.31 INCHES LONG Fits: M996, M996A1	6	Ask us
8	Tubing Straight Connector NSN 4730-01-270-7931 · P/N SF5597721 CONNECTOR,TUBING,ST Fits: M996, M996A1	4	We can source it $25–$40 eachtypical
