HMMWV Patient Compartment Heater and A/C Ducts, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 300

Every part in figure 300 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 16 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

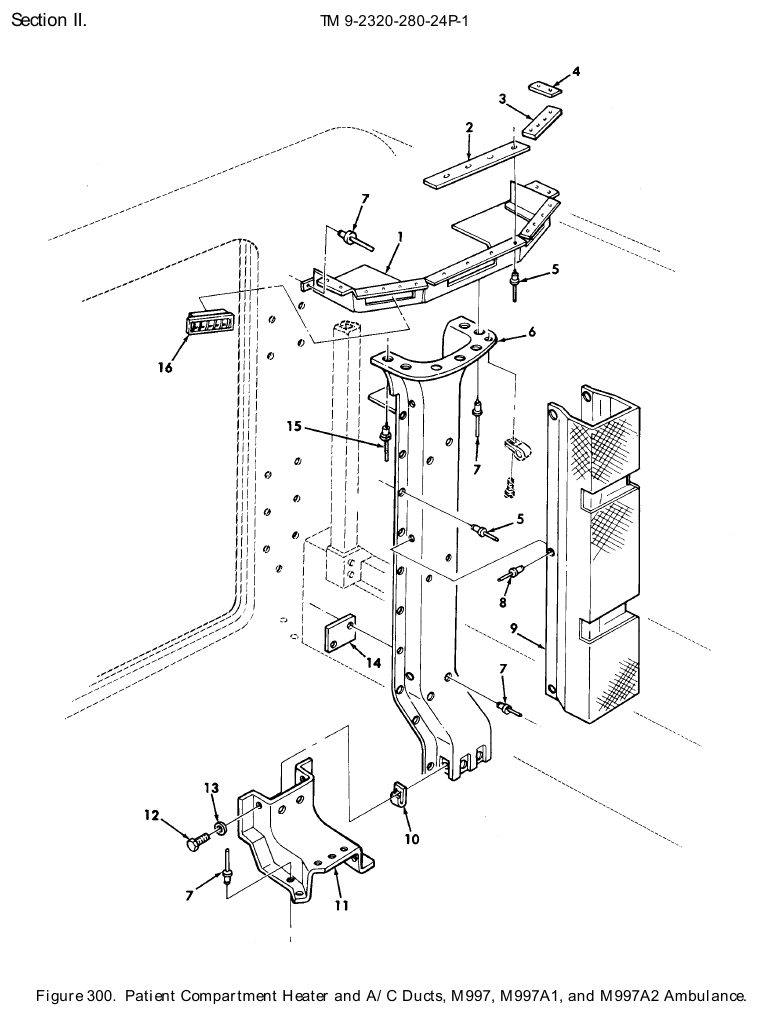

TM 9-2320-280-24P figure 300, Patient Compartment Heater and A/C Ducts, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Body Panel NSN 2510-01-270-9707 · P/N 5589763 PANEL,BODY,VEHICULA Fits: M997, M997A1, M997A2	1	2 in stock
2	Mounting Bracket NSN 5340-01-294-4415 · P/N 12342000-2 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
3	Mounting Bracket NSN 5340-01-294-3230 · P/N 12342000-1 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	2	2 in stock
4	Mounting Bracket NSN 5340-01-306-3606 · P/N 12342000-3 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	2	We can source it
5	Blind Rivet NSN 5320-01-264-5978 · P/N 12339355-2 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	16	We can source it
6	Air Duct Hose NSN 4720-01-271-6151 · P/N 12341591 HOSE,AIR DUCT Fits: M997, M997A1, M997A2	1	467 in stock $387.10our price Buy online ↗
7	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	33	We can source it
8	Blind Rivet NSN 5320-00-493-4101 · P/N M24243/1-B604 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	6	We can source it
9	Heater Duct Shield NSN 2540-01-271-3769 · P/N 12341535 SHIELD,HEATER DUCT Fits: M997, M997A1, M997A2	1	2 in stock $105.81 per eachgov't list price
10	Sheet Spring Nut NSN 5310-01-272-5464 · P/N C-8036-832 NUT,SHEET SPRING #8-32 Fits: M997, M997A1, M997A2	4	44 in stock
11	Air Conditioning-Heating Pipe NSN 4520-01-271-2949 · P/N 12341553 PIPE,AIR CONDITIONI Fits: M997, M997A1, M997A2	1	We can source it $128.24 per eachgov't list price
12	Machine Screw NSN 5305-00-984-6193 · P/N MS35206-245 SCREW,MACHINE #8-32 X .50 Fits: M997, M997A1, M997A2	4	12 in stock
13	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #8 Fits: M997, M997A1, M997A2	4	We can source it
14	Plate Spacer NSN 5365-01-272-7482 · P/N 12340961 SPACER,PLATE Fits: M997, M997A1, M997A2	3	We can source it
15	Blind Rivet NSN 5320-01-143-5075 · P/N CR3213-6-2 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	1	92 in stock
16	Air Circulating Ventilator NSN 2540-01-282-8562 · P/N HV032504 VENTILATOR,AIR CIRC Fits: M997, M997A1, M997A2	3	10 in stock $25–$40 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
