HMMWV NBC Piping For # 1, 2, & 3 Heaters, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 303

Every part in figure 303 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 16 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

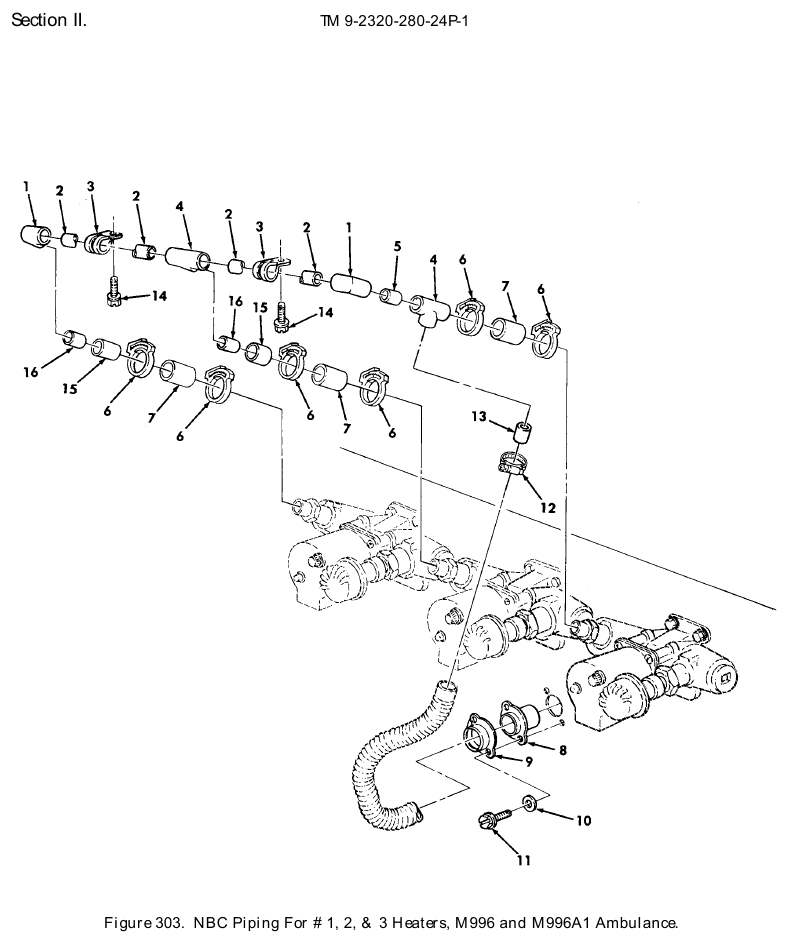

TM 9-2320-280-24P figure 303, NBC Piping For # 1, 2, & 3 Heaters, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Tube Elbow
NSN 4730-01-265-3166 · P/N 12341583
ELBOW,TUBE
Fits: M996, M996A1
 2 We can source it
2
Pcv Make From Pipe Tubing
P/N SF5597958
TUBING,PCV MAKE FROM PIPE,P/N D1785,7.50 INCHES LONG
Fits: M996, M996A1
 4 Ask us
3
Loop Clamp
NSN 5340-00-958-8457 · P/N MS21333-78
CLAMP,LOOP
Fits: M996, M996A1
 2 13 in stock
4
Pipe Tee
NSN 4730-00-476-7127 · P/N 12341584
TEE,PIPE 2.50
Fits: M996, M996A1
 2 We can source it
5
Pcv Make From Pipe Tubing
P/N SF5597214
TUBING,PCV MAKE FROM PIPE,P/N D1785,1.62 INCHES LONG
Fits: M996, M996A1
 1 Ask us
6
Hose Clamp
NSN 4730-00-908-3193 · P/N WWD48-58H
CLAMP,HOSE
Fits: M996, M996A1
 6 168 in stock
7
Nonmetallic Tubing
NSN 4720-01-270-9616 · P/N SF5934202
TUBING,NONMETALLIC
Fits: M996, M996A1
 3 We can source it
$60–$100 eachtypical
8
Nonmetallic Bushing
NSN 5365-01-381-2215 · P/N 12341231-6
BUSHING,NONMETALLIC
Fits: M996, M996A1
 1 We can source it
$60–$100 eachtypical
9
Assembly Retainer
NSN 2590-00-454-3620 · P/N 809223
RETAINER,ASSEMBLY
Fits: M996, M996A1
 1 168 in stock
10
Flat Washer
NSN 5310-00-014-5850 · P/N MS27183-42
WASHER,FLAT 7/32
Fits: M996, M996A1
 2 909 in stock
11
Tapping Screw
NSN 5305-01-006-5736 · P/N DR-T10X3/4
SCREW,TAPPING #10-32 X 3/4
Fits: M996, M996A1
 2 We can source it
12
Hose Clamp
NSN 4730-01-239-5251 · P/N SNP-22
CLAMP,HOSE
Fits: M996, M996A1
 1 We can source it
13
Nonmetallic Make From Pipe Tubing
P/N 12341587-20
TUBING,NONMETALLIC MAKE FROM PIPE, P/N D1785,1.31 INCHES LONG
Fits: M996, M996A1
 1 Ask us
14
Machine Screw
NSN 5305-01-259-6322 · P/N 12342499-1
SCREW,MACHINE #10-32 X .50
Fits: M996, M996A1
 2 1,205 in stock
15
Pipe Coupling
NSN 4730-00-476-5859 · P/N 12341585
COUPLING,PIPE
Fits: M996, M996A1
 2 We can source it
16
Connector Straight Make From Pipe
P/N SF5597957
CONNECTOR STRAIGHT MAKE FROM PIPE, P/N D1785,2.70 INCHES LONG
Fits: M996, M996A1
 2 Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
