HMMWV NBC Piping for # 4, & 5 Heaters, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 304

Every part in figure 304 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 11 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

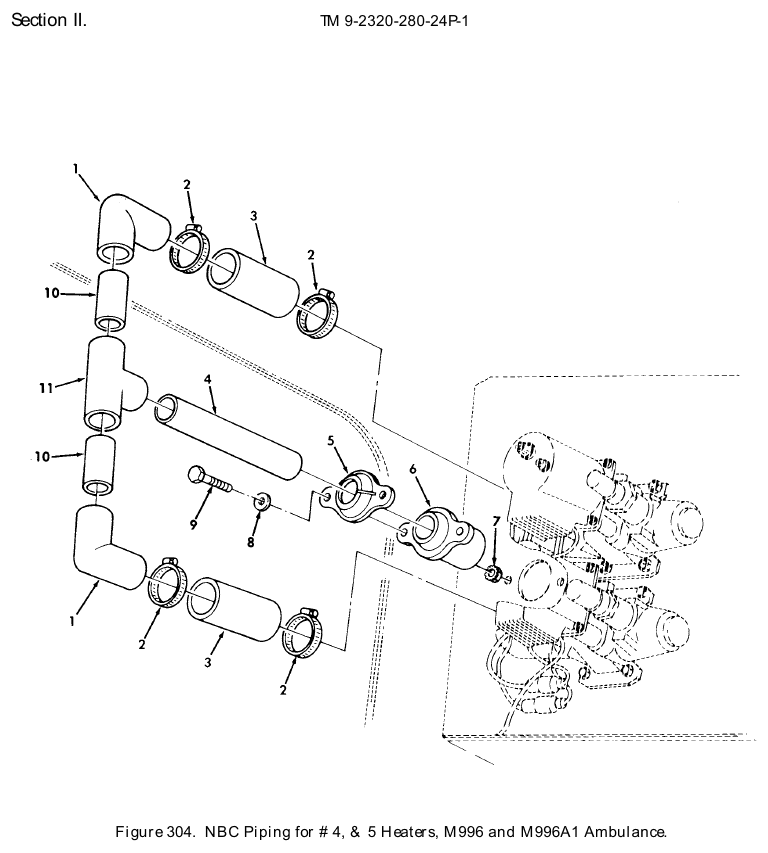

TM 9-2320-280-24P figure 304, NBC Piping for # 4, & 5 Heaters, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tube Elbow NSN 4730-01-265-3166 · P/N 12341583 ELBOW,TUBE Fits: M996, M996A1	2	We can source it
2	Hose Clamp NSN 4730-00-908-3193 · P/N WWD48-58H CLAMP,HOSE Fits: M996, M996A1	4	168 in stock
3	Tubing Straight Connector NSN 4730-01-265-3285 · P/N 12341586 CONNECTOR,TUBING,ST Fits: M996, M996A1	2	We can source it
4	Nonmetallic Make From Pipe Tubing P/N SF5597723 TUBING,NONMETALLIC MAKE FROM PIPE, P/N D1785,8.75 INCHES LONG Fits: M996, M996A1	1	Ask us
5	Assembly Retainer NSN 2590-00-454-3620 · P/N 809223 RETAINER,ASSEMBLY Fits: M996, M996A1	1	168 in stock
6	Nonmetallic Bushing NSN 5365-01-383-3722 · P/N 12341231-5 BUSHING,NONMETALLIC Fits: M996, M996A1	1	We can source it $511.45 per eachgov't list price
7	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: M996, M996A1	2	570 in stock
8	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M996, M996A1	2	2,325 in stock
9	Cap Screw NSN 5305-01-272-9042 · P/N 5593409 SCREW,CAP,HEXAGON H #10-32 X 3/4 Fits: M996, M996A1	2	We can source it
10	Pcv Make From Pipe Tubing P/N SF5597214 TUBING,PCV MAKE FROM PIPE, P/N D1785, 1.62 INCHES LONG Fits: M996, M996A1	2	Ask us
11	Pipe Tee NSN 4730-00-476-7127 · P/N 12341584 TEE,PIPE Fits: M996, M996A1	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
