HMMWV NBC Blower and Filter Mounting Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 307

Every part in figure 307 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 15 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

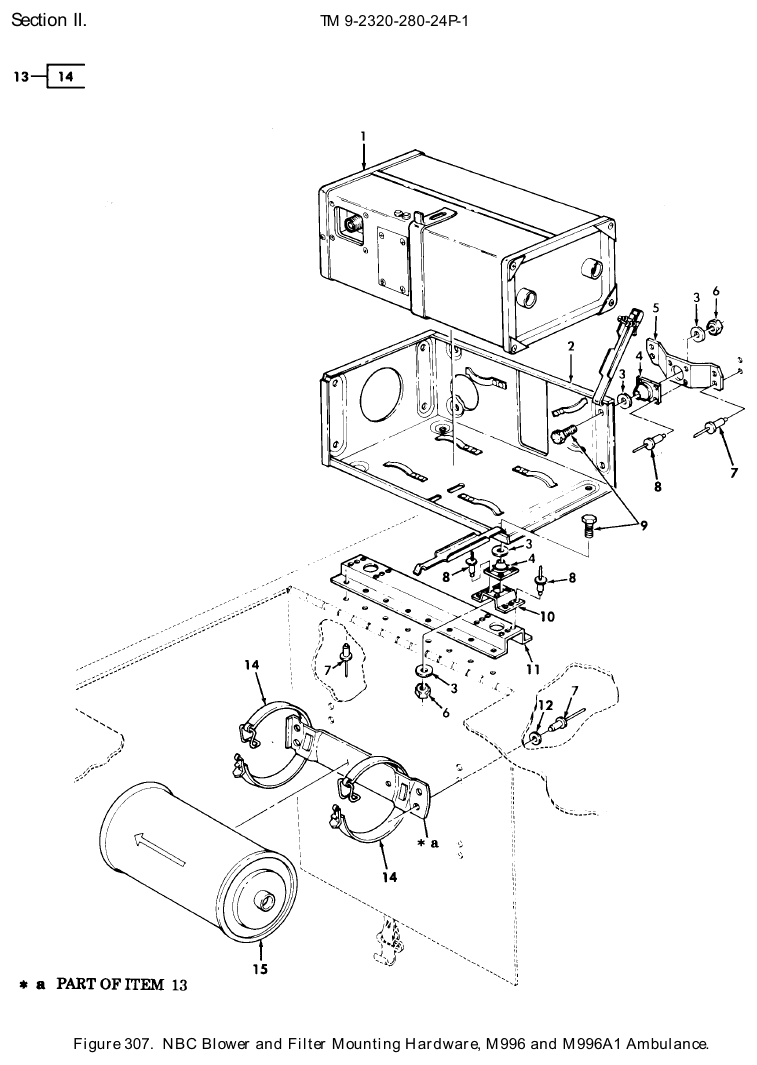

TM 9-2320-280-24P figure 307, NBC Blower and Filter Mounting Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Precleaner and Particulate Filte NSN 4240-01-026-3112 · P/N D5-19-2353 PRECLEANER AND PART Fits: M996, M996A1	1	1 in stock quote only $3,928.00 per eachgov't list price
2	Frame Assembly NSN 4240-00-565-6059 · P/N D5-19-1754 FRAME ASSEMBLY Fits: M996, M996A1	1	We can source it quote only $216.80 per eachgov't list price
3	Flat Washer NSN 5310-00-167-0893 · P/N AN8013-2 WASHER,FLAT Fits: M996, M996A1	10	300 in stock
4	Resilient Weapon System Mount NSN 5342-00-200-7564 · P/N AN8008D6 MOUNT,RESILIENT Fits: M996, M996A1	5	We can source it $25–$40 eachtypical
5	Mounting Bracket NSN 5340-01-291-2301 · P/N 5598285 BRACKET,MOUNTING Fits: M996, M996A1	1	We can source it $327.60 per eachgov't list price
6	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS Fits: M996, M996A1	5	570 in stock
7	Blind Rivet NSN 5320-01-264-5978 · P/N 12339355-2 RIVET,BLIND 3/16 DIA., .247-.437 GRIP LENGTH Fits: M996, M996A1	31	We can source it
8	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 DIA, .062-.270 GRIP LENGTH Fits: M996, M996A1	44	We can source it
9	Cap Hexagon Head Screw NSN 5305-00-068-0501 · P/N MS90725-5 SCREW,CAP,HEXAGON H 1/4-20 X 1.125 INCHES Fits: M996, M996A1	5	288 in stock
10	Mounting Bracket NSN 5340-01-288-6550 · P/N 5598279 BRACKET,MOUNTING LOWER Fits: M996, M996A1	4	We can source it $25–$60 eachtypical
11	Mounting Bracket NSN 5340-01-289-4474 · P/N 5598286 BRACKET,MOUNTING Fits: M996, M996A1	2	We can source it $25–$40 eachtypical
12	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT 3/16 Fits: M996, M996A1	16	We can source it
13	Engine Accessory Bracket NSN 5342-01-270-7921 · P/N 12341714 BRACKET,ENGINE ACCE Fits: M996, M996A1	2	1 in stock $70–$120 eachtypical
14	Loop Clamp NSN 5340-01-426-3850 · P/N 10084 CLAMP,LOOP Fits: M996, M996A1	2	We can source it $110.25 per eachgov't list price
15	Gas Filter NSN 4240-01-365-0982 · P/N 5-19-2300 FILTER,GAS Fits: M996, M996A1	2	We can source it quote only

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
