HMMWV NBC Piping for #6 & 7 Heaters, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 306

Every part in figure 306 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 10 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

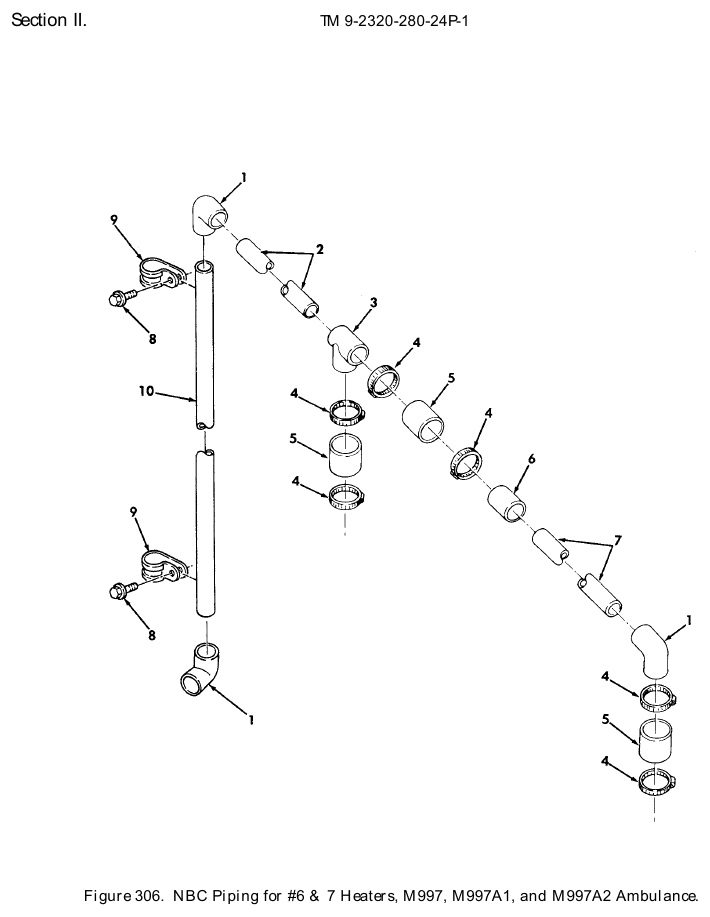

TM 9-2320-280-24P figure 306, NBC Piping for #6 & 7 Heaters, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Tube Elbow
NSN 4730-01-265-3166 · P/N 12341583
ELBOW,TUBE
Fits: M997, M997A1, M997A2
 3 We can source it
2
Straight Pvc Make From Pipe Pipe
P/N SF5597229
PIPE,STRAIGHT,PVC MAKE FROM PIPE,P/N D1785,15.88 INCHES LONG
Fits: M997, M997A1, M997A2
 1 Ask us
3
Pipe Tee
NSN 4730-00-476-7127 · P/N 12341584
TEE,PIPE 2.50
Fits: M997, M997A1, M997A2
 1 We can source it
4
Hose Clamp
NSN 4730-01-322-9160 · P/N NAS1922-0150-1
CLAMP,HOSE
Fits: M997, M997A1, M997A2
 6 We can source it
5
Tubing Straight Connector
NSN 4730-01-265-3285 · P/N 12341586
CONNECTOR,TUBING,ST
Fits: M997, M997A1, M997A2
 3 We can source it
6
Pipe Coupling
NSN 4730-00-476-5859 · P/N 12341585
COUPLING,PIPE 1.66 INCHES LONG
Fits: M997, M997A1, M997A2
 1 We can source it
7
Straight Pvc Make From Pipe Pipe
P/N SF5597230
PIPE,STRAIGHT,PVC MAKE FROM PIPE,P/N D1785,30.72 INCHES LONG
Fits: M997, M997A1, M997A2
 1 Ask us
8
Tapping Screw
NSN 5305-01-361-5353 · P/N 9414241
SCREW,TAPPING
Fits: M997, M997A1, M997A2
 2 40 in stock
9
Loop Clamp
NSN 5340-00-922-6300 · P/N MS21333-77
CLAMP,LOOP
Fits: M997, M997A1, M997A2
 2 12 in stock
10
Straight Pvc Make From Pipe Pipe
P/N SF5597231
PIPE,STRAIGHT,PVC MAKE FROM PIPE,P/N D1785,31.38 INCHES LONG
Fits: M997, M997A1, M997A2
 1 Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
