HMMWV NBC Piping, Blower Box, and Filter, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 309

Every part in figure 309 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 13 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

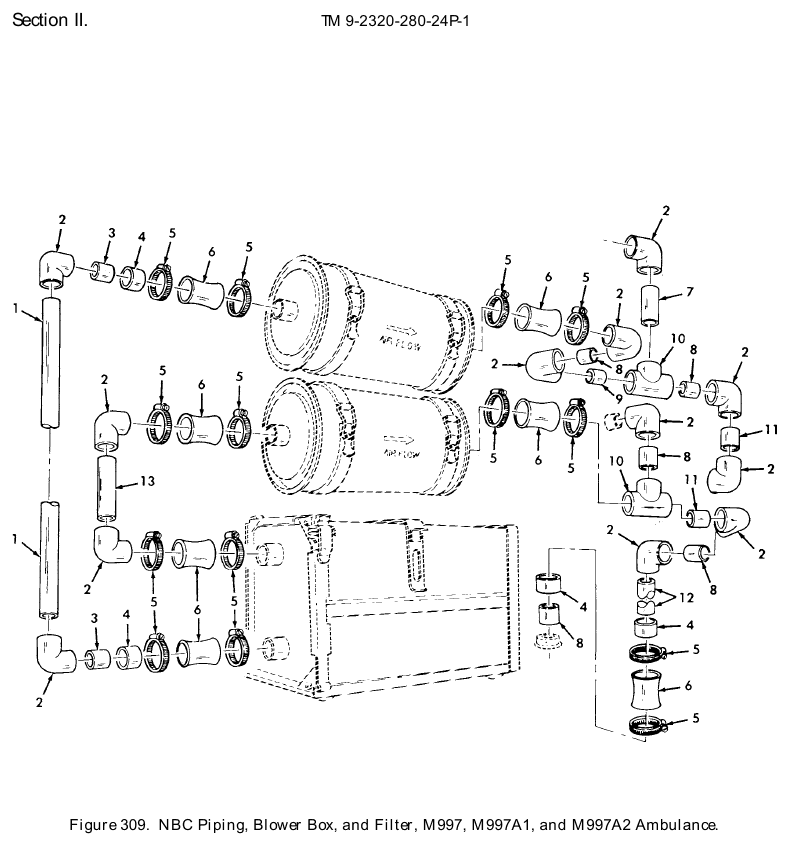

TM 9-2320-280-24P figure 309, NBC Piping, Blower Box, and Filter, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Straight Pvc Make From Pipe Pipe P/N SF5597228 PIPE,STRAIGHT,PVC MAKE FROM PIPE,P/N D1785,15.31 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
2	Tube Elbow NSN 4730-01-265-3166 · P/N 12341583 ELBOW,TUBE Fits: M997, M997A1, M997A2	12	We can source it
3	Straight Pvc Make From Pipe Pipe P/N SF5597218 PIPE,STRAIGHT,PVC MAKE FROM PIPE,P/N D1785,2.38 INCHES LONG Fits: M997, M997A1, M997A2	2	Ask us
4	Pipe Coupling NSN 4730-00-476-5859 · P/N 12341585 COUPLING,PIPE Fits: M997, M997A1, M997A2	4	We can source it
5	Hose Clamp NSN 4730-01-322-9160 · P/N NAS1922-0150-1 CLAMP,HOSE Fits: M997, M997A1, M997A2	14	We can source it
6	Tubing Straight Connector NSN 4730-01-265-3285 · P/N 12341586 CONNECTOR,TUBING,ST Fits: M997, M997A1, M997A2	7	We can source it
7	Straight Pvc Make From Pipe Pipe P/N SF5597219 PIPE,STRAIGHT,PVC MAKE FROM PIPE,P/N D1785, 3.75 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
8	Pcv Make From Pipe Tubing P/N SF5597214 TUBING,PCV MAKE FROM PIPE, P/N D1785, 1.62 INCHES LONG Fits: M997, M997A1, M997A2	5	Ask us
9	Straight Pvc Make From Pipe Pipe P/N SF5597215 PIPE,STRAIGHT,PVC MAKE FROM PIPE, P/N D1785, 1.81 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
10	Pipe Tee NSN 4730-00-476-7127 · P/N 12341584 TEE,PIPE Fits: M997, M997A1, M997A2	2	We can source it
11	Straight Make From Pipe Pipe P/N SF5597217 PIPE,STRAIGHT MAKE FROM PIPE, P/N D1785, 2.12 INCHES LONG Fits: M997, M997A1, M997A2	2	Ask us
12	Straight Pvc Make From Pipe Pipe P/N SF5597227 PIPE,STRAIGHT,PVC MAKE FROM PIPE, P/N D1785, 10.62 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
13	Straight Pvc Make From Pipe Pipe P/N SF5597221 PIPE,STRAIGHT,PVC MAKE FROM PIPE, P/N D1785, 4.75 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
