HMMWV NBC Tubing from Filters to Heaters, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 310

Every part in figure 310 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 9 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

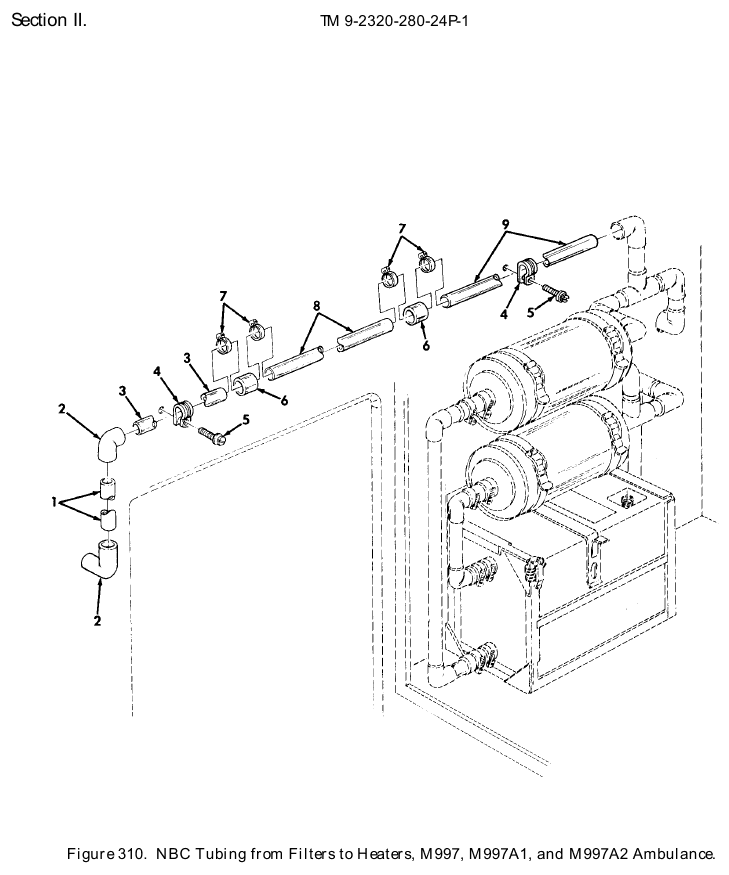

TM 9-2320-280-24P figure 310, NBC Tubing from Filters to Heaters, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tubing Make From Pipe P/N SF5597226 TUBING MAKE FROM PIPE,P/N D1785, 6.87 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
2	Tube Elbow NSN 4730-01-265-3166 · P/N 12341583 ELBOW,TUBE Fits: M997, M997A1, M997A2	2	We can source it
3	Nonmetallic Make From Pipe Tubing P/N SF5597232 TUBING,NONMETALLIC MAKE FROM PIPE, P/N D1785,6.81 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
4	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP Fits: M997, M997A1, M997A2	2	12 in stock
5	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X .50 Fits: M997, M997A1, M997A2	2	1,205 in stock
6	Pipe Coupling NSN 4730-00-476-5859 · P/N 12341585 COUPLING,PIPE Fits: M997, M997A1, M997A2	2	We can source it
7	Hose Clamp NSN 4730-00-908-3194 · P/N MS35842-11 CLAMP,HOSE Fits: M997, M997A1, M997A2	4	536 in stock
8	Nonmetallic Tubing NSN 4720-01-270-9618 · P/N 12341614 TUBING,NONMETALLIC Fits: M997, M997A1, M997A2	1	We can source it $45–$85 eachtypical
9	Tubing Make From Pipe P/N SF5597970 TUBING MAKE FROM PIPE,P/N D1785, 14.12 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
