HMMWV Fan Assemblies and Belts TM 9-2320-280-24P · Fig. 32

Every part in figure 32 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0505 Fan Assembly: 6 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

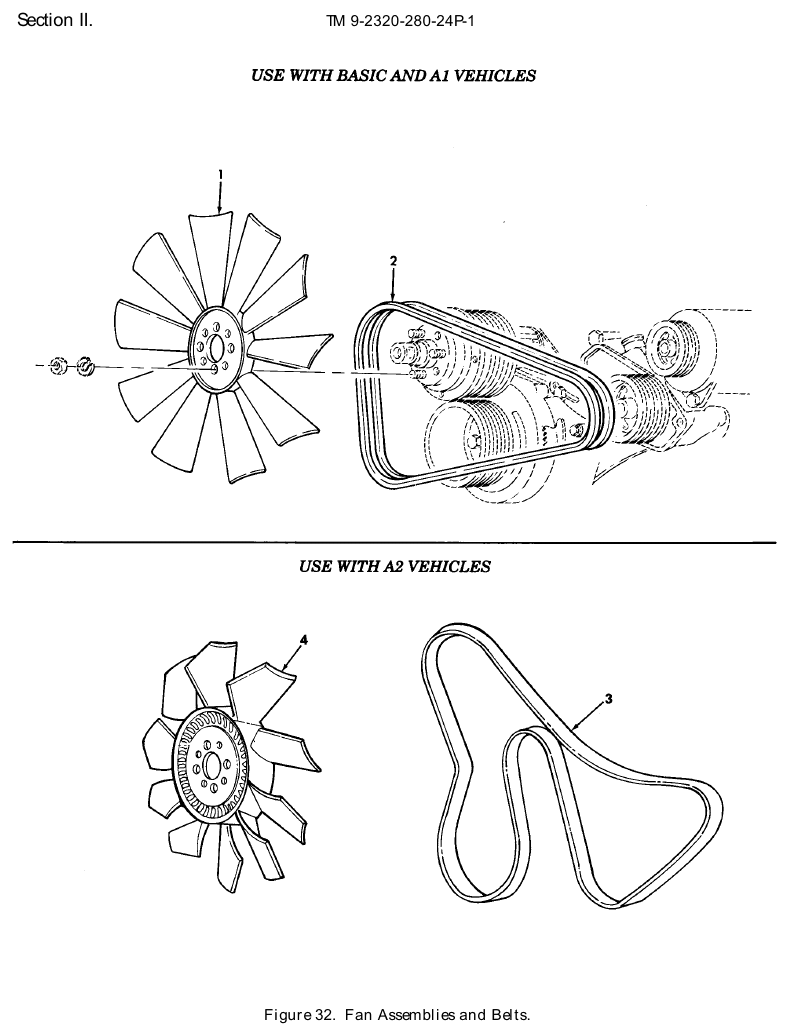

TM 9-2320-280-24P figure 32, Fan Assemblies and Belts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fan Centrifugal Impeller NSN 4140-01-211-8403 · P/N 4735-38449-02 IMPELLER,FAN,CENTRI Fits: All A0 and A1 models, plus M1121	1	111 in stock $75–$130 eachtypical
2	V Matched Set Belts NSN 3030-00-379-2815 · P/N 43-5791 BELTS,V,MATCHED SET Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	499 in stock $25–$55 per settypical
2	V Belt NSN 3030-01-256-3616 · P/N 5598213 BELT,V Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	25 in stock $25–$55 eachtypical
3	V Belt NSN 3030-01-466-9476 · P/N 20-8021 BELT,SERPENTINE ALL WEATHER.(SERIAL NUMBER 196900 AND BELOW) Fits: All A2 models, plus M1123	1	25 in stock $40–$75 eachtypical
3	V Belt NSN 3030-01-488-5606 · P/N 20-9646 BELT,SERPENTINE ALL WEATHER (SERIAL NUMBER 196901 AND ABOVE) Fits: All A2 models, plus M1123	1	6 in stock $72.50our price Buy online ↗
4	Fan Axial Impeller NSN 2930-01-420-8622 · P/N 4735-42599-103 IMPELLER,FAN,AXIAL Fits: All A2 models, plus M1123	1	8 in stock $251.99our price Buy online ↗

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
