HMMWV Water Pump and Attaching Hardware TM 9-2320-280-24P · Fig. 31

Every part in figure 31 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0504 Water Pump: 17 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

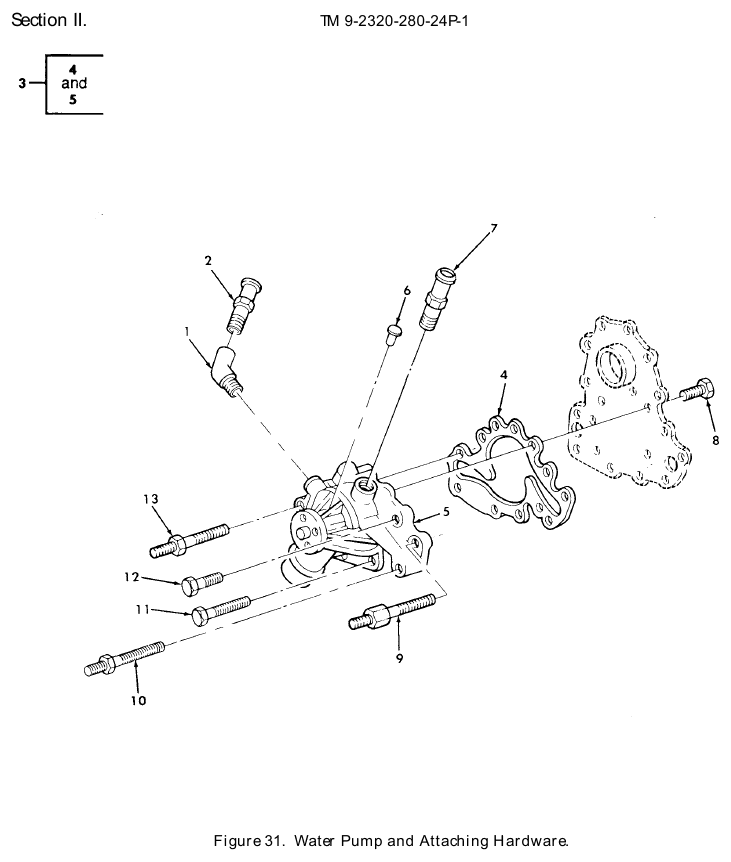

TM 9-2320-280-24P figure 31, Water Pump and Attaching Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Pipe Elbow NSN 4730-00-541-0793 · P/N 75167 ELBOW,PIPE Fits: All models	1	200 in stock
2	Straight Pipe to Hose Adapter NSN 4730-01-148-2758 · P/N 354501 ADAPTER,STRAIGHT,PI Fits: All models	1	We can source it
3	Cooling System Engine Pump NSN 2930-01-193-7802 · P/N 15633485 PUMP,COOLING SYSTEM 6.2 LITER,USE PRIOR TO 1990 ENGINE Fits: All A0 models except M1097, plus M1121	1	9 in stock $70–$120 eachtypical
3	Cooling System Engine Pump NSN 2930-01-353-5794 · P/N 251-591 PUMP,COOLING SYSTEM 6.2 AND 6.5 DETUNED,USE WITH 1990 ENGINE AND ABOVE Fits: All A0 and A1 models, plus M1121	1	40 in stock
3	Cooling System Engine Pump NSN 2930-01-444-6649 · P/N 12534772 PUMP,COOLING SYSTEM 6.5 LITER Fits: All A2 models, plus M1123	1	8 in stock
4	Gasket NSN 5330-01-147-9808 · P/N 10137492 GASKET 6.2 LITER AND 6.5 DETUNED Fits: All A0 and A1 models, plus M1121	1	13 in stock $25–$40 eachtypical
4	Gasket NSN 5330-01-476-3866 · P/N 12553488 GASKET 6.5 LITER Fits: All A2 models, plus M1123	1	15 in stock $35–$70 eachtypical
5	Pump P/N 23500085 PUMP,COOLING SYSTEM 6.2 LITER AND 6.5 DETUNED Fits: All A0 and A1 models, plus M1121	1	Ask us
5	Pump P/N 12553484 PUMP,COOLING SYSTEM 6.5 LITER Fits: All A2 models, plus M1123	1	Ask us
6	Solid Rivet NSN 5320-01-218-0721 · P/N 193620 RIVET,SOLID 1/4 X 1/2 Fits: All models	1	We can source it
7	Straight Pipe to Tube Adapter NSN 4730-01-182-6565 · P/N 3739798 ADAPTER,STRAIGHT,PI Fits: All models	1	38 in stock
8	Cap Hexagon Head Screw NSN 5305-01-149-1938 · P/N 11500815 SCREW,CAP,HEXAGON H 6.2 AND 6.5 DETUNED 1.25 X 16MM Fits: All A0 and A1 models, plus M1121	7	40 in stock
8	Cap Hexagon Head Screw NSN 5305-01-149-1938 · P/N 11500815 SCREW,CAP,HEXAGON H 6.5 LITER, 8- 1.25 X 16MM Fits: All A2 models, plus M1123	6	40 in stock
9	Stud Special NSN 5307-01-207-9004 · P/N 23500032 STUD SPECIAL 10-1.5 X 89 X 15MM Fits: All models	1	58 in stock
10	Shouldered Stud NSN 5307-01-178-7445 · P/N 14024229 STUD,SHOULDERED 10-1.5 X 95 X 17MM Fits: All models	1	We can source it
11	Cap Hexagon Head Screw NSN 5305-01-149-9673 · P/N 1150967 SCREW,CAP,HEXAGON H 10-1.5 X 90MM Fits: All models	1	300 in stock
12	Machine Bolt NSN 5306-01-150-1190 · P/N 11500921 BOLT,MACHINE 10-1.5 X 40 MM 25 MM............................... 1 Fits: All models	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
