HMMWV Reflectors TM 9-2320-280-24P · Fig. 330

Every part in figure 330 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 4 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

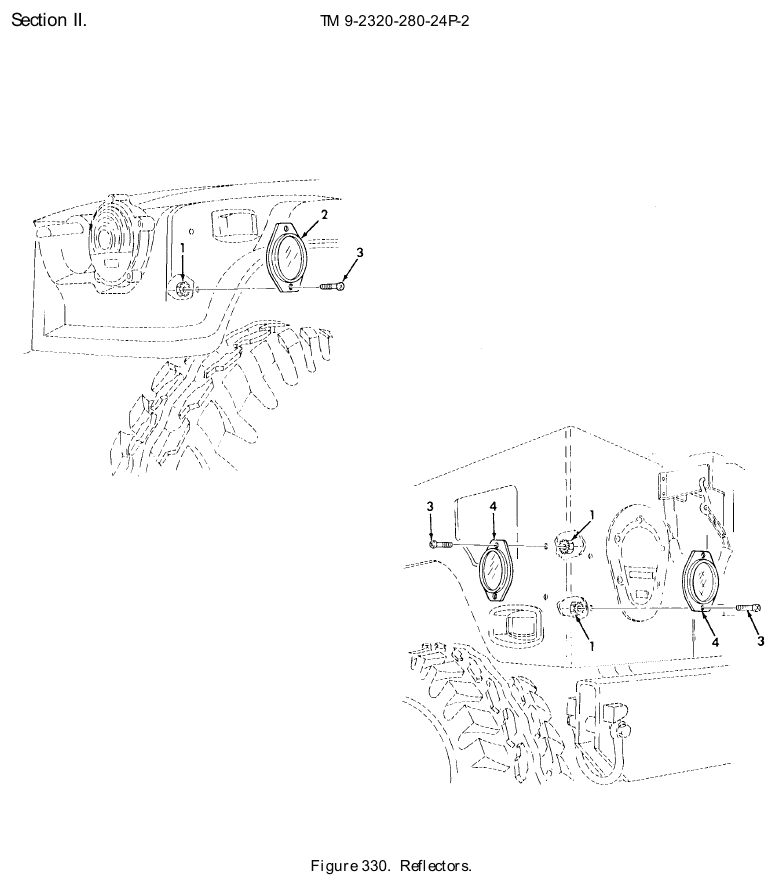

TM 9-2320-280-24P figure 330, Reflectors: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Nut NSN 5310-01-252-2999 · P/N 5593033 NUT,SELF-LOCKING,AS 1/4-20 Fits: All models	12	1,286 in stock
2	Indicating Clearance Reflector NSN 9905-00-202-3639 · P/N MS35387-2 REFLECTOR,INDICATIN AMBER Fits: All models	2	565 in stock $20.00our price Buy online ↗
3	Machine Screw NSN 5305-00-988-1724 · P/N MS35206-280 SCREW,MACHINE 1/4-20 X 5/8 Fits: All models	12	74 in stock
4	Indicating Clearance Reflector NSN 9905-00-977-2727 · P/N 49RED REFLECTOR,INDICATIN RED Fits: All models	4	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
