HMMWV A2 Diverter Assembly, Defroster, Heater Ducting, and Radio Brackets TM 9-2320-280-24P · Fig. 332

Every part in figure 332 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 45 lines, 26 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

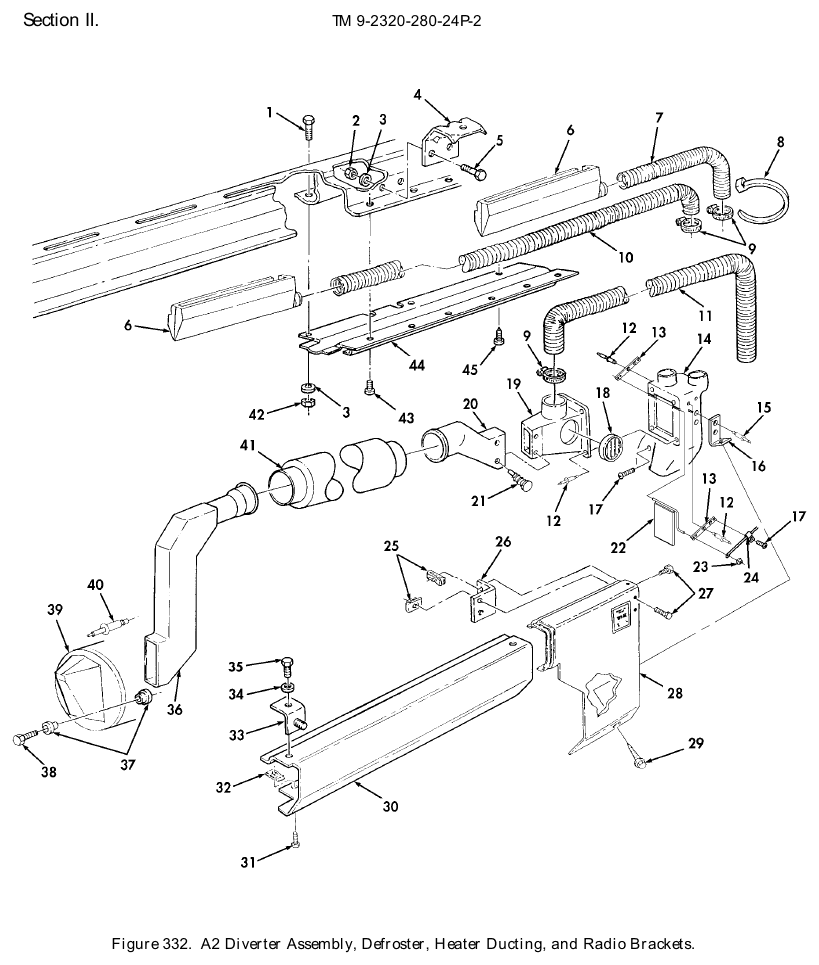

TM 9-2320-280-24P figure 332, A2 Diverter Assembly, Defroster, Heater Ducting, and Radio Brackets: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-01-270-7332 · P/N 5594178 BOLT,MACHINE 1/4-20 X 7/8 Fits: All A2 models, plus M1123	3	We can source it
2	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4 Fits: All A2 models, plus M1123	4	184 in stock
3	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All A2 models, plus M1123	7	351 in stock
4	Double Angle Bracket NSN 5340-01-476-4374 · P/N 12446765 BRACKET,DOUBLE ANGL Fits: All A2 models, plus M1123	2	1 in stock $25–$50 eachtypical
5	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All A2 models, plus M1123	4	248 in stock
6	Defroster Nozzle NSN 2910-01-184-5498 · P/N 12339292-1 NOZZLE,DEFROSTER R.H. AND L.H Fits: All A2 models, plus M1123	2	15 in stock $39.20our price Buy online ↗
7	Air Duct Hose NSN 4720-01-474-9148 · P/N 12447010-1 HOSE,AIRDUCT Fits: All A2 models, plus M1123	1	We can source it
8	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT Fits: All A2 models, plus M1123	1	198 in stock
9	Hose Clamp NSN 4730-01-092-1904 · P/N SIZE 83 CLAMP,HOSE Fits: All A2 models, plus M1123	3	We can source it $25–$40 eachtypical
10	Air Duct Hose NSN 4720-01-445-5690 · P/N 12447010-3 HOSE,AIR DUCT Fits: All A2 models, plus M1123	1	We can source it
11	Air Duct Hose NSN 4720-01-444-6433 · P/N 12447010-2 HOSE,AIR DUCT Fits: All A2 models, plus M1123	1	We can source it
12	Blind Rivet NSN 5320-01-275-1998 · P/N BAPKTR-64 RIVET,BLIND Fits: All A2 models, plus M1123	8	We can source it
13	Vehicular Components Bracket NSN 2590-01-455-9123 · P/N 12460233 BRACKET,VEHICULAR C Fits: All A2 models, plus M1123	2	We can source it
14	Air Conditioning-H Duct Assembly NSN 2540-01-447-2236 · P/N 12447046 DUCT ASSEMBLY,AIR C Fits: All A2 models, plus M1123	1	165 in stock $30–$60 eachtypical
15	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND Fits: All A2 models, plus M1123	2	641 in stock
16	Angle Bracket NSN 5340-01-449-7352 · P/N 12447132 BRACKET,ANGLE Fits: All A2 models, plus M1123	1	We can source it
17	Screw NSN 5305-01-213-5024 · P/N 9414722 SCREW Fits: All A2 models, plus M1123	2	We can source it
18	Air Circulating Ventilator NSN 2540-01-455-9308 · P/N 12460434 VENTILATOR,AIR CIRC Fits: All A2 models, plus M1123	1	11 in stock
19	Air Conditioning-H Duct Assembly NSN 2540-01-444-6615 · P/N 12447130 DUCT ASSEMBLY,AIR C Fits: All A2 models, plus M1123	1	1 in stock $114.59 per eachgov't list price
20	Air Intake Vehicular Housing NSN 2540-01-444-5340 · P/N 12447050 HOUSING,AIR INTAKE, Fits: All A2 models, plus M1123	1	360 in stock $25–$60 eachtypical
21	Spring Tension Trim Fastener NSN 5325-01-197-3460 · P/N 354-280308-00-00 FASTENER,SPRING TEN 78 UOC:BVY,B15,B20,B24,B25,C17,NNN Fits: All models	2	We can source it
22	Air Conditioning-H Duct Assembly NSN 2540-01-444-6655 · P/N 12447048 DUCT ASSEMBLY,AIR C Fits: All A2 models, plus M1123	1	601 in stock $55–$90 eachtypical
23	Plug Button NSN 5340-01-332-7599 · P/N 12340258 BUTTON,PLUG Fits: All A2 models, plus M1123	1	We can source it
24	Loop Clamp NSN 5340-00-990-7610 · P/N MS21333-66 CLAMP,LOOP Fits: All A2 models, plus M1123	1	1 in stock
25	Sheet Spring Nut NSN 5310-01-215-5356 · P/N 12339694 NUT,SHEET SPRING Fits: All A2 models, plus M1123	4	94,824 in stock
26	Angle Bracket NSN 5340-01-189-7554 · P/N 12339261 BRACKET,ANGLE Fits: All A2 models, plus M1123	1	We can source it
27	Machine Screw NSN 5305-01-187-8757 · P/N 274707 SCREW,MACHINE 24 X 1/2 Fits: All A2 models, plus M1123	4	662 in stock
28	Access Cover NSN 5340-01-470-2069 · P/N 12447013 COVER,ACCESS Fits: All A2 models, plus M1123	1	157 in stock $397.84 per eachgov't list price
29	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10 32 X 1/2 Fits: All A2 models, plus M1123	1	1,205 in stock
30	Air Conditioning-H Duct Assembly NSN 2540-01-444-6642 · P/N 12447012 DUCT ASSEMBLY,AIR C Fits: All A2 models, plus M1123	1	51 in stock $75–$125 eachtypical
31	Tapping Screw NSN 5305-01-447-9227 · P/N 9414726 SCREW,TAPPING Fits: All A2 models, plus M1123	10	We can source it
32	Sheet Spring Nut NSN 5310-01-448-3219 · P/N 12339426 NUT,SHEET SPRING Fits: All A2 models, plus M1123	10	We can source it
33	Vehicular Components Bracket NSN 2590-01-439-8268 · P/N 12446763 BRACKET,VEHICULAR C Fits: All A2 models, plus M1123	2	258 in stock $18.13our price Buy online ↗
34	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT Fits: All A2 models, plus M1123	2	1,146 in stock $7.83our price Buy online ↗
35	Cap Hexagon Head Screw NSN 5305-00-543-4372 · P/N B1821BH038C075N SCREW,CAP,HEXAGON H 3/8-16 X 3/4 Fits: All A2 models, plus M1123	2	1,537 in stock
36	Air Conditioning-H Duct Assembly NSN 2540-01-474-8562 · P/N 12447047 HOUSING,HEATING DIR Fits: All A2 models, plus M1123	1	1 in stock $25–$60 eachtypical
37	Sleeve Spacer NSN 5365-01-469-6343 · P/N 12460385 SPACER,SLEEVE Fits: All A2 models, plus M1123	6	6 in stock
38	Tapping Screw NSN 5305-01-461-4396 · P/N 9425170 SCREW,TAPPING #10-24 X 1.00 Fits: All A2 models, plus M1123	3	6 in stock
39	Air Conditioning-H Duct Assembly NSN 2540-01-463-3097 · P/N 12460386 DUCT ASSEMBLY,AIR C Fits: All A2 models, plus M1123	1	We can source it
40	Rivet NSN 5320-01-254-2283 · P/N BALM-6BP-14 RIVET Fits: All A2 models, plus M1123	1	We can source it
41	Air Duct Hose NSN 4720-01-445-5705 · P/N 12447028 HOSE,AIR DUCT Fits: All A2 models, plus M1123	1	We can source it $105.29 per eachgov't list price
42	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A2 models, plus M1123	3	626 in stock
43	Tapping Screw NSN 5305-01-255-3588 · P/N 164830 SCREW,TAPPING 3/8-16 X 1/2 Fits: All A2 models, plus M1123	6	We can source it
44	Body Vehicular Panel NSN 2510-01-307-0152 · P/N 12339201-1 PANEL,BODY,VEHICULA Fits: All A2 models, plus M1123	1	1 in stock quote only $30–$60 eachtypical
45	Tapping Screw NSN 5305-01-298-2436 · P/N MS51861-22C SCREW,TAPPING 6-20 X 1/4 Fits: All A2 models, plus M1123	2	We can source it

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
