HMMWV Heater Assembly, Water Valve, and Controls TM 9-2320-280-24P · Fig. 333

Every part in figure 333 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 44 lines, 33 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

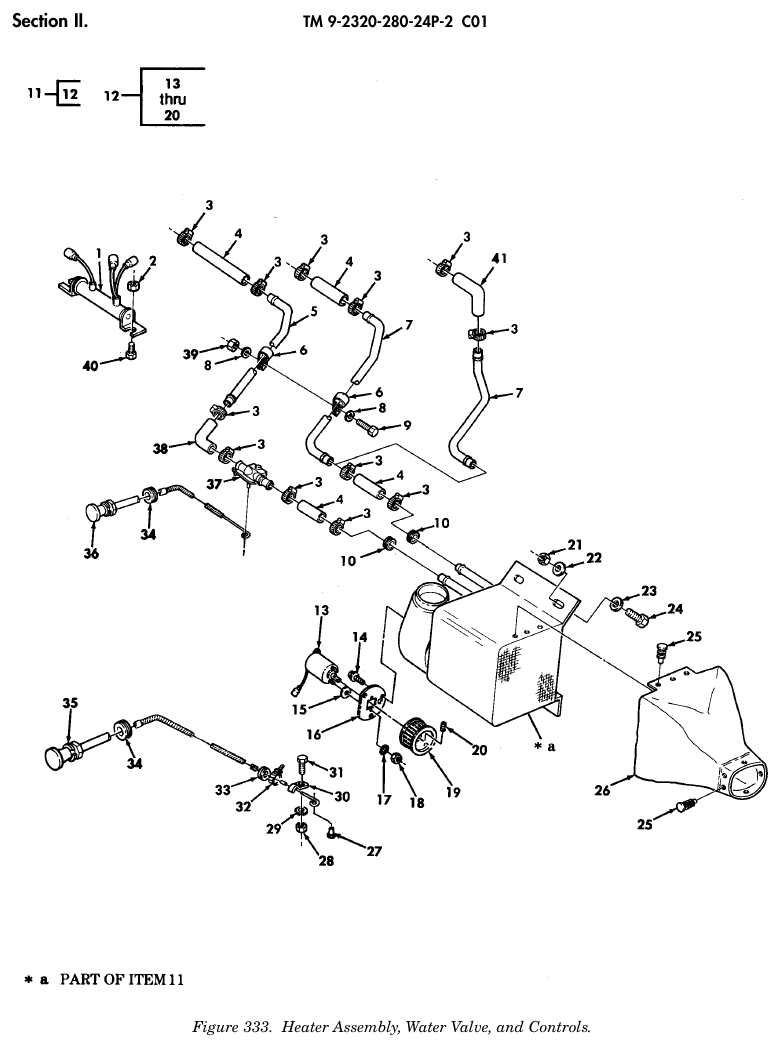

TM 9-2320-280-24P figure 333, Heater Assembly, Water Valve, and Controls: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fixed Wire Wound Induct Resistor NSN 5905-01-183-9636 · P/N 12338468 RESISTOR,FIXED,WIRE Fits: All models	1	We can source it $95–$160 per assemblytypical
2	Plain Hexagon Nut NSN 5310-01-251-0711 · P/N 5593038 NUT,PLAIN,HEXAGON 1/4-20 Fits: All models	2	We can source it
3	Hose Clamp NSN 4730-01-088-7798 · P/N 481655-305 CLAMP,HOSE Fits: All models	10	We can source it
4	Bent Nonmetall Make From Hose Tube P/N 12339293-1 TUBE,BENT,NONMETALL MAKE FROM HOSE, P/N MS521301A203R,2.5 INCHES LONG Fits: All models	4	Ask us
5	Bent Metallic Tube NSN 4710-01-210-3504 · P/N 12339263 TUBE,BENT,METALLIC Fits: All models	1	38 in stock $25–$55 eachtypical
6	Loop Clamp NSN 5340-01-214-3615 · P/N 137197 CLAMP,LOOP Fits: All models	2	1,903 in stock $25.00our price Buy online ↗
7	Bent Metallic Tube NSN 4710-01-473-2352 · P/N RCSK18121 TUBE,BENT,METALLIC Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
7	Bent Metallic Tube NSN 4710-01-488-6076 · P/N 12469479 TUBE,BENT,METALLIC (SERIAL NUMBER 196901 AND ABOVE) Fits: All A2 models, plus M1123	1	We can source it $50–$95 eachtypical
7	Bent Metallic Tube NSN 4710-01-210-3503 · P/N 5590284 TUBE,BENT,METALLIC Fits: All A0 and A1 models, plus M1121	1	95 in stock $25–$60 eachtypical
8	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	2	351 in stock
9	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	1	471 in stock
10	Nonmetallic Grommet NSN 5325-00-281-1557 · P/N AN931-10-14 GROMMET,NONMETALLIC Fits: All models	2	38 in stock
11	Vehicular Compartment Heater NSN 2540-01-190-7079 · P/N 30250 HEATER,VEHICULAR,CO Fits: All A0 and A1 models, plus M1121	1	5 in stock $1,136.43our price Buy online ↗
11	Vehicular Compartment Heater NSN 2540-01-474-3217 · P/N 12447007 HEATER,VEHICULAR,CO Fits: All A2 models, plus M1123	1	2 in stock $665.00our price Buy online ↗
12	Direct Current Motor NSN 6105-01-211-6635 · P/N 30266 MOTOR,DIRECT CURREN Fits: All models	1	1 in stock $298.89our price Buy online ↗
13	Direct Current Motor NSN 6105-01-463-5260 · P/N 30042 MOTOR,DIRECT CURREN Fits: All models	1	277 in stock $329.65 per eachgov't list price
14	Assembled Washer Screw NSN 5305-01-380-9163 · P/N 9414313 SCREW,ASSEMBLED WAS 1/4-20 X 11/ 32 Fits: All models	2	166 in stock
15	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: All models	2	909 in stock
16	Mounting Plate NSN 5340-01-381-2248 · P/N 12342809 PLATE,MOUNTING Fits: All models	1	12 in stock $25–$45 eachtypical
17	Lock Washer NSN 5310-00-576-5752 · P/N MS35333-39 WASHER,LOCK #10 Fits: All models	2	757 in stock
18	Plain Hexagon Nut NSN 5310-00-934-9751 · P/N MS35650-302 NUT,PLAIN,HEXAGON #10-32 Fits: All models	2	700 in stock
19	Fan Axial Impeller NSN 2930-01-385-9108 · P/N 12342808 IMPELLER,FAN,AXIAL Fits: All models	1	1,056 in stock $45–$90 eachtypical
20	Setscrew NSN 5305-00-724-5812 · P/N MS51964-65 SETSCREW 1/4-28 X .312 Fits: All models	1	We can source it
21	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All models	4	354 in stock
22	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: All models	4	471 in stock
23	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: All models	4	1,368 in stock
24	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 3/4 Fits: All models	4	276 in stock
25	Nonmetallic Grommet NSN 5325-01-209-7843 · P/N 12339402 GROMMET,NONMETALLIC 1/4 X 5/8 Fits: All models	16	4 in stock
26	Air Intake Duct NSN 4720-01-212-6403 · P/N 12340029 DUCT,AIR INTAKE Fits: All models	1	2 in stock $35–$70 eachtypical
27	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N 12339998-14 NUT,PLAIN,BLIND RIV Fits: All models	1	We can source it
28	Plain Hexagon Nut NSN 5310-00-934-9747 · P/N MS35649-262 NUT,PLAIN,HEXAGON #6-32 Fits: All models	1	1,010 in stock
29	Lock Washer NSN 5310-00-045-4007 · P/N MS35338-41 WASHER,LOCK #6 Fits: All models	1	29 in stock
30	Loop Clamp NSN 5340-01-215-5478 · P/N CWV-0407 CLAMP,LOOP Fits: All models	1	We can source it
31	Machine Screw NSN 5305-00-227-1543 · P/N MS51849-33 SCREW,MACHINE #6-32 X .62 Fits: All models	1	7,992 in stock
32	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT Fits: All models	1	198 in stock
33	Nonmetallic Grommet NSN 5325-00-249-6345 · P/N 2758 GROMMET,NONMETALLIC Fits: All models	1	12 in stock
34	Nonmetallic Grommet NSN 5325-00-291-9366 · P/N MS35489-11 GROMMET,NONMETALLIC Fits: All models	2	We can source it
35	Push-Pull Control Assembly NSN 2590-01-194-6990 · P/N 12340531-3 CONTROL ASSEMBLY,PU DEFROSTER Fits: All models	1	21 in stock $25–$50 eachtypical
36	Push-Pull Control Assembly NSN 2590-01-212-4956 · P/N 12340531-4 CONTROL ASSEMBLY,PU HEATER Fits: All models	1	35 in stock $25–$40 eachtypical
37	Stop-Check Valve NSN 4820-01-189-2107 · P/N RTCO-2619 VALVE,STOP-CHECK Fits: All models	1	1,297 in stock $40–$80 eachtypical
38	Preformed Hose NSN 4720-01-189-2218 · P/N 12339251 HOSE,PREFORMED Fits: All models	1	2,150 in stock
39	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	1	626 in stock
40	Assembled Washer Screw NSN 5305-01-268-5680 · P/N 5593030 SCREW,ASSEMBLED WAS 1/4-20 X 5/8 Fits: All models	2	502 in stock
41	Hose Elbow NSN 4730-01-488-6163 · P/N 12469491 ELBOW,HOSE (SERIAL NUMBER 196901 AND ABOVE) Fits: All models	1	We can source it $25–$55 eachtypical

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
