HMMWV Fuel Lines, Personnel Heater to Fuel Filter, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 335

Every part in figure 335 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 17 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

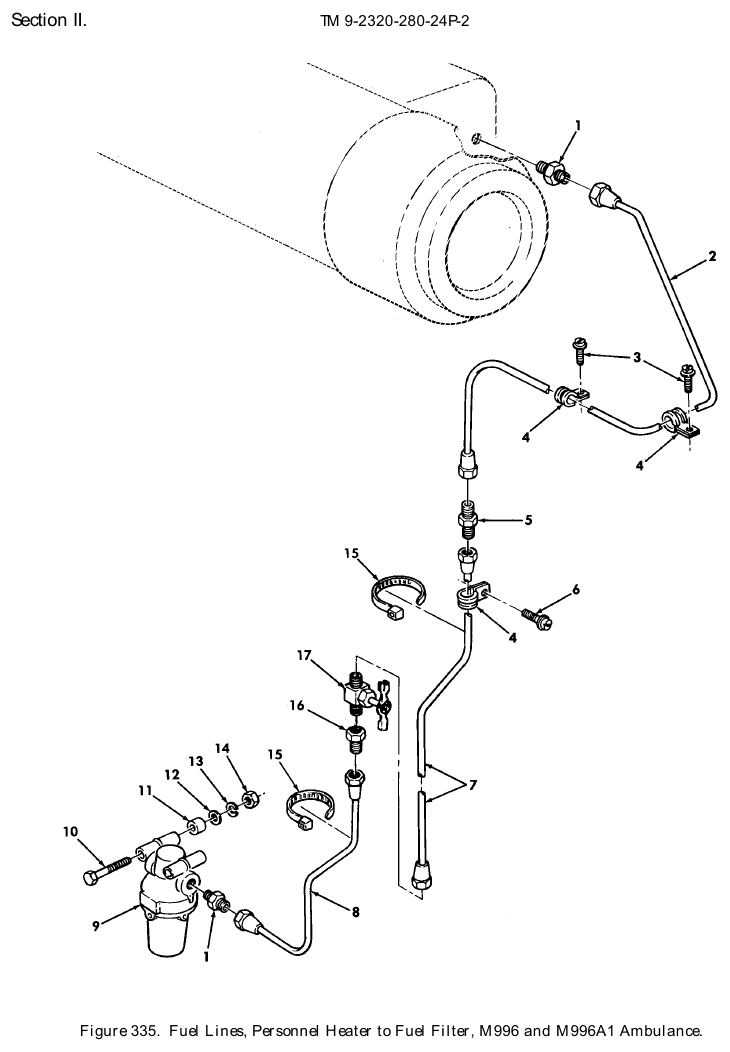

TM 9-2320-280-24P figure 335, Fuel Lines, Personnel Heater to Fuel Filter, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Straight Pipe to Tube Adapter NSN 4730-00-439-6021 · P/N 6-2 010102B ADAPTER,STRAIGHT,PI Fits: M996, M996A1	2	We can source it
2	Metal Tube Assembly NSN 4710-01-265-3228 · P/N 5598266 TUBE ASSEMBLY,METAL Fits: M996, M996A1	1	We can source it $25–$55 per assemblytypical
3	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X .50 Fits: M996, M996A1	2	1,205 in stock
4	Loop Clamp NSN 5340-00-764-7051 · P/N MS21333-69 CLAMP,LOOP Fits: M996, M996A1	3	We can source it
5	Tube Nipple NSN 4730-00-949-8694 · P/N A-327 NIPPLE,TUBE Fits: M996, M996A1	1	We can source it
6	Screw NSN 5305-01-204-6502 · P/N 112-1008800-003 SCREW #10-32 X .62 Fits: M996, M996A1	1	10 in stock
7	Metal Tube Assembly NSN 4710-01-265-3229 · P/N 12341420 TUBE ASSEMBLY,METAL Fits: M996, M996A1	1	We can source it $35–$75 per assemblytypical
8	Metal Tube Assembly NSN 4710-01-265-3228 · P/N 5598266 TUBE ASSEMBLY,METAL Fits: M996, M996A1	1	We can source it $25–$55 per assemblytypical
9	Fluid Filter NSN 2910-00-025-3493 · P/N MS51085-1 FILTER,FLUID Fits: M996, M996A1	1	8 in stock $100.91 per eachgov't list price
10	Cap Hexagon Head Screw NSN 5305-01-270-5435 · P/N 5593421 SCREW,CAP,HEXAGON H #10-24 X 2.00 Fits: M996, M996A1	2	We can source it
11	Sleeve Spacer NSN 5365-01-272-7504 · P/N 5596814 SPACER,SLEEVE Fits: M996, M996A1	2	4,393 in stock
12	Flat Washer NSN 5310-01-253-8953 · P/N 5593242 WASHER,FLAT #10 Fits: M996, M996A1	2	We can source it $35–$65 eachtypical
13	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 Fits: M996, M996A1	2	709 in stock
14	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON #10-24 Fits: M996, M996A1	2	952 in stock
15	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT Fits: M996, M996A1	2	269 in stock
16	Straight Pipe to Tube Adapter NSN 4730-00-270-4606 · P/N 6-4 010103B ADAPTER,STRAIGHT,PI Fits: M996, M996A1	1	1 in stock
17	Shutoff Screw Stem Cock NSN 4820-00-287-5627 · P/N 12341793 COCK,SHUTOFF,SCREW Fits: M996, M996A1	1	We can source it $65–$110 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
