HMMWV Heater Fuel Lines, Filter to Tank, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 334

Every part in figure 334 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 19 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

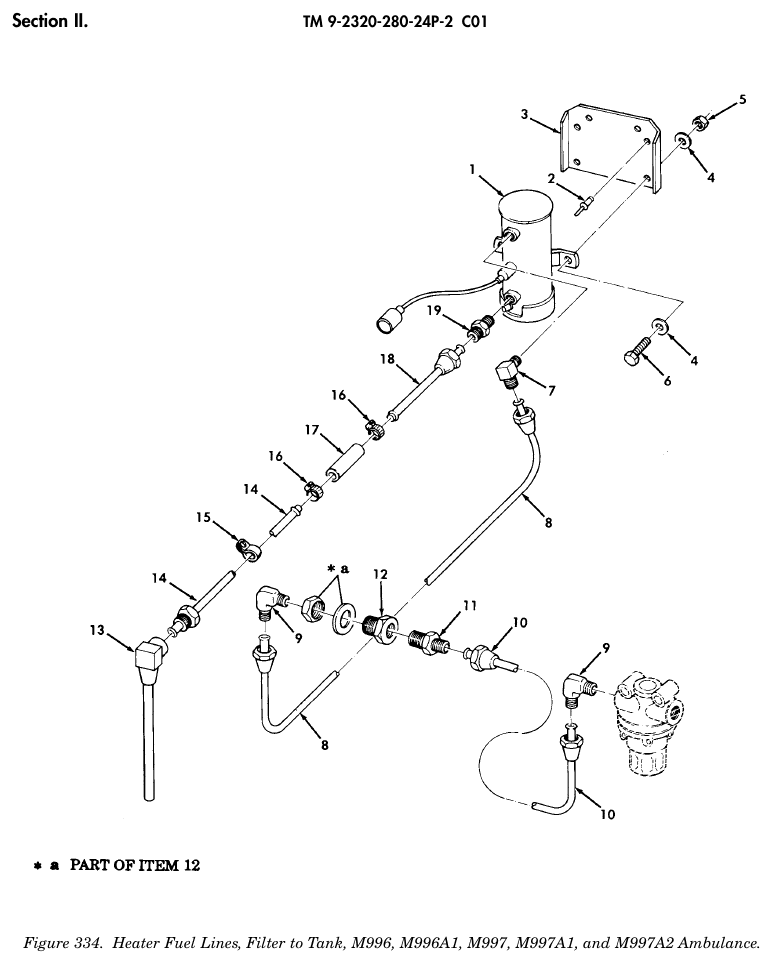

TM 9-2320-280-24P figure 334, Heater Fuel Lines, Filter to Tank, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fuel Electrical Pump NSN 2910-00-073-0165 · P/N 7748814 PUMP,FUEL,ELECTRICA Fits: M996, M996A1, M997, M997A1, M997A2	1	21 in stock $406.01 per eachgov't list price
2	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
3	Double Angle Bracket NSN 5340-01-204-3903 · P/N 12338559 BRACKET,DOUBLE ANGL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $30–$65 eachtypical
4	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
5	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4 X 20 Fits: M996, M996A1, M997, M997A1, M997A2	2	626 in stock
6	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M996, M996A1, M997, M997A1, M997A2	2	559 in stock
7	Pipe to Tube Elbow NSN 4730-00-254-6227 · P/N 49X6X2 ELBOW,PIPE TO TUBE Fits: M996, M996A1, M997, M997A1, M997A2	1	25 in stock
8	Metal Tube Assembly NSN 4710-01-265-3231 · P/N 5591614 TUBE ASSEMBLY,METAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$45 per assemblytypical
9	Pipe to Tube Elbow NSN 4730-00-254-6211 · P/N E14A ELBOW,PIPE TO TUBE 90 DEGREE Fits: M996, M996A1, M997, M997A1, M997A2	2	34 in stock
10	Metal Tube Assembly NSN 4710-01-265-3275 · P/N 12341440 TUBE ASSEMBLY,METAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $30–$65 per assemblytypical
11	Straight Pipe to Tube Adapter NSN 4730-00-803-6266 · P/N 8924145 ADAPTER,STRAIGHT,PI Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
12	Pipe Coupling NSN 4730-00-897-5497 · P/N W21204 COUPLING,PIPE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
13	Metal Tube Assembly NSN 4710-01-203-0615 · P/N 5578694 TUBE ASSEMBLY,METAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $30–$65 per assemblytypical
14	Metal Tube Assembly NSN 4710-01-203-0607 · P/N 5588694 TUBE ASSEMBLY,METAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $60–$100 per assemblytypical
15	Loop Clamp NSN 5340-00-993-6207 · P/N MS21333-99 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
16	Hose Clamp NSN 4730-01-118-8278 · P/N MMF4-SS CLAMP,HOSE Fits: M996, M996A1, M997, M997A1, M997A2	2	9 in stock
17	Hose Make From Hose P/N 5588698 HOSE MAKE FROM HOSE,P/N 9438315, 2.80 INCHES LONG Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
18	Metal Tube Assembly NSN 4710-01-203-0608 · P/N 5588696 TUBE ASSEMBLY,METAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
19	Straight Pipe to Tube Adapter NSN 4730-00-266-0535 · P/N 5-2 010102B ADAPTER,STRAIGHT,PI Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
