HMMWV Antenna and Intercom Cables and Mounting Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 339

Every part in figure 339 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 29 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

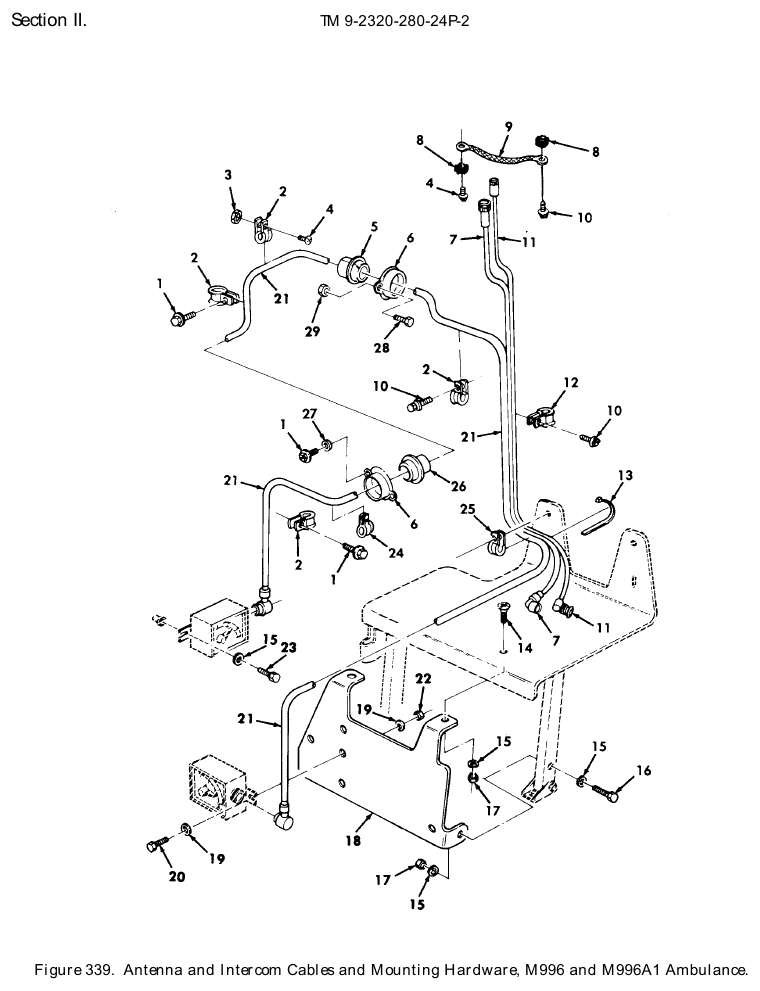

TM 9-2320-280-24P figure 339, Antenna and Intercom Cables and Mounting Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Screw NSN 5305-01-272-9042 · P/N 5593409 SCREW,CAP,HEXAGON H 1/4-20 X 1.25 Fits: M996, M996A1	6	We can source it
2	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: M996, M996A1	8	5 in stock
3	Nut Plain NSN 5310-01-270-8189 · P/N 271168 NUT PLAIN,ASSEMBLED #10-32 Fits: M996, M996A1	2	We can source it
4	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X .50 Fits: M996, M996A1	3	169 in stock
5	Nonmetallic Grommet NSN 5325-01-205-5378 · P/N 12338084 GROMMET Fits: M996, M996A1	1	3 in stock
6	Assembly Retainer NSN 2590-00-454-3620 · P/N 809223 RETAINER,ASSEMBLY Fits: M997, M997A2	2	168 in stock
7	Special Purpose E Cable Assembly NSN 6150-01-269-1848 · P/N 12338089-2 CABLE ASSEMBLY,SPEC Fits: M996, M996A1	1	We can source it quote only $231.14 per assemblygov't list price
8	Lock Washer NSN 5310-00-080-9786 · P/N MS45904-60 WASHER,LOCK #10 Fits: M996, M996A1	2	8 in stock
9	Electrical Grounding Strip NSN 5999-01-272-0018 · P/N 5598121 STRIP,ELECTRICAL GR Fits: M996, M996A1, M997	1	We can source it $25–$50 eachtypical
10	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X 3/4 Fits: M996, M996A1	6	1,205 in stock
11	Radio Frequency Cable Assembly NSN 5995-01-269-9525 · P/N 5589012-B CABLE ASSEMBLY,RADI Fits: M996, M996A1	1	We can source it quote only $202.69 per eachgov't list price
12	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP Fits: M996, M996A1	3	787 in stock
13	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT Fits: M996, M996A1	2	198 in stock
14	Machine Screw NSN 5305-00-719-5021 · P/N MS51959-81 SCREW,MACHINE 1/4-20 X .75 Fits: M996, M996A1	2	We can source it
15	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 Fits: M996, M996A1	8	We can source it
16	Cap Hexagon Head Screw NSN 5305-00-071-2237 · P/N MS90725-14 SCREW,CAP,HEXAGON H 1/4-20 X 2.00 Fits: M996, M996A1	2	500 in stock
17	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M996, M996A1	4	626 in stock
18	Mounting Bracket NSN 5340-01-270-8489 · P/N 12340879 BRACKET,MOUNTING Fits: M996, M996A1	1	69 in stock $50.00our price Buy online ↗
19	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M996, M996A1	4	471 in stock
20	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 Fits: M996, M996A1	2	276 in stock
21	Special Purpose E Cable Assembly NSN 6150-01-269-1839 · P/N 12338100-1 CABLE ASSEMBLY,SPEC Fits: M996, M996A1	1	We can source it quote only $676.63 per eachgov't list price
22	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M996, M996A1	2	354 in stock
23	Assembled Washer Screw NSN 5305-01-272-9034 · P/N G0045696 SCREW,ASSEMBLED WAS 1/4-20 X 1.25 Fits: M996, M996A1	2	We can source it
24	Loop Clamp NSN 2520-00-984-8540 · P/N MS21333-102 CLAMP,LOOP Fits: M996, M996A1	1	426 in stock
25	Loop Clamp NSN 5340-00-809-1494 · P/N MS21333-105 CLAMP,LOOP Fits: M996, M996A1	2	23 in stock
26	Nonmetallic Bushing NSN 5365-01-274-3573 · P/N 12341231-3 BUSHING,NONMETALLIC Fits: M996, M996A1	1	140 in stock $538.67 per eachgov't list price
27	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M996, M996A1	2	909 in stock
28	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 0.75 Fits: M996, M996A1	2	471 in stock
29	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: M996, M996A1	2	570 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
