Catalog › Parts manuals › TM 9-2320-280-24P › Accessory Items › Fig. 340

HMMWV Antenna Mount and Mounting Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 340

Every part in figure 340 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 10 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

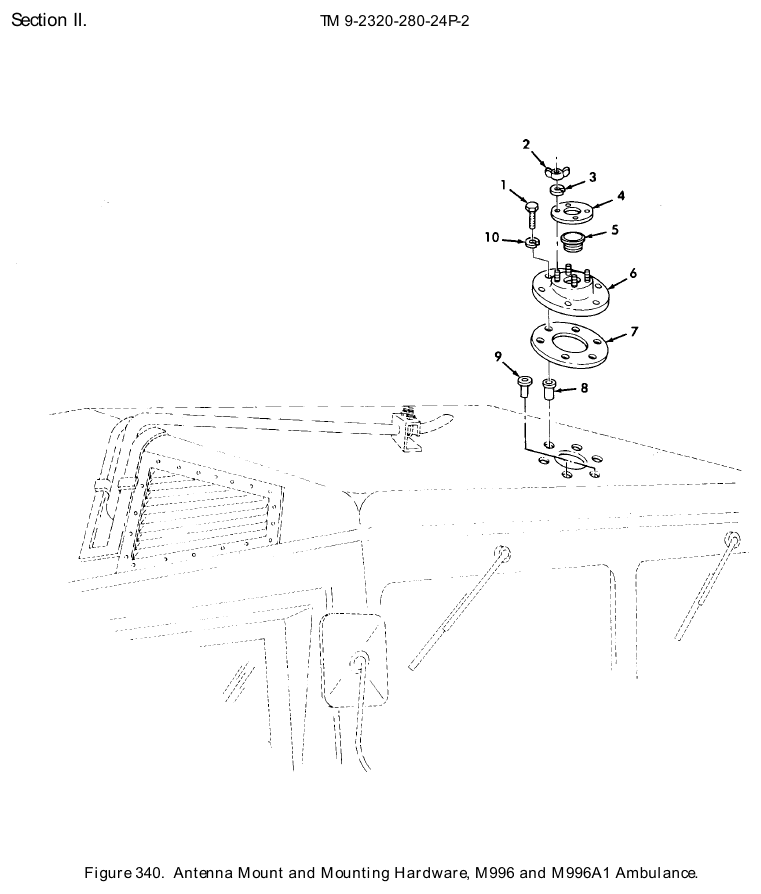

TM 9-2320-280-24P figure 340, Antenna Mount and Mounting Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.125 Fits: M996, M996A1	6	84,127 in stock
2	Plain Wing Nut NSN 5310-01-088-2490 · P/N MS35425-74 NUT,PLAIN,WING Fits: M996, M996A1	4	97 in stock
3	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK Fits: M996, M996A1	4	1,162 in stock
4	Gasket NSN 5330-01-270-8315 · P/N 12341876 GASKET Fits: M996, M996A1	1	We can source it
5	Protective Dust and Moistur Plug NSN 5340-01-194-0887 · P/N BPF-3-1/2 PLUG,PROTECTIVE,DUS Fits: M996, M996A1	1	19 in stock
6	Antenna Support Base NSN 5985-01-269-8272 · P/N 12341466 BASE,ANTENNA SUPPOR Fits: M996, M996A1	1	We can source it $240.98 per eachgov't list price
7	Gasket NSN 5330-01-298-8127 · P/N 5597985 GASKET Fits: M996, M996A1	1	We can source it $30–$65 eachtypical
8	Plain Blind Rivet Nut NSN 5310-01-101-6046 · P/N MS27130-A50 NUT,PLAIN,BLIND RIV Fits: M996, M996A1	4	We can source it
9	Plain Blind Rivet Nut NSN 5310-01-046-5382 · P/N MS27130-A43 NUT,PLAIN,BLIND RIV Fits: M996, M996A1	2	We can source it
10	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: M996, M996A1	6	2,036 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
