HMMWV Fan Drive and Pulley TM 9-2320-280-24P · Fig. 34

Every part in figure 34 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0505 Fan Assembly: 24 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

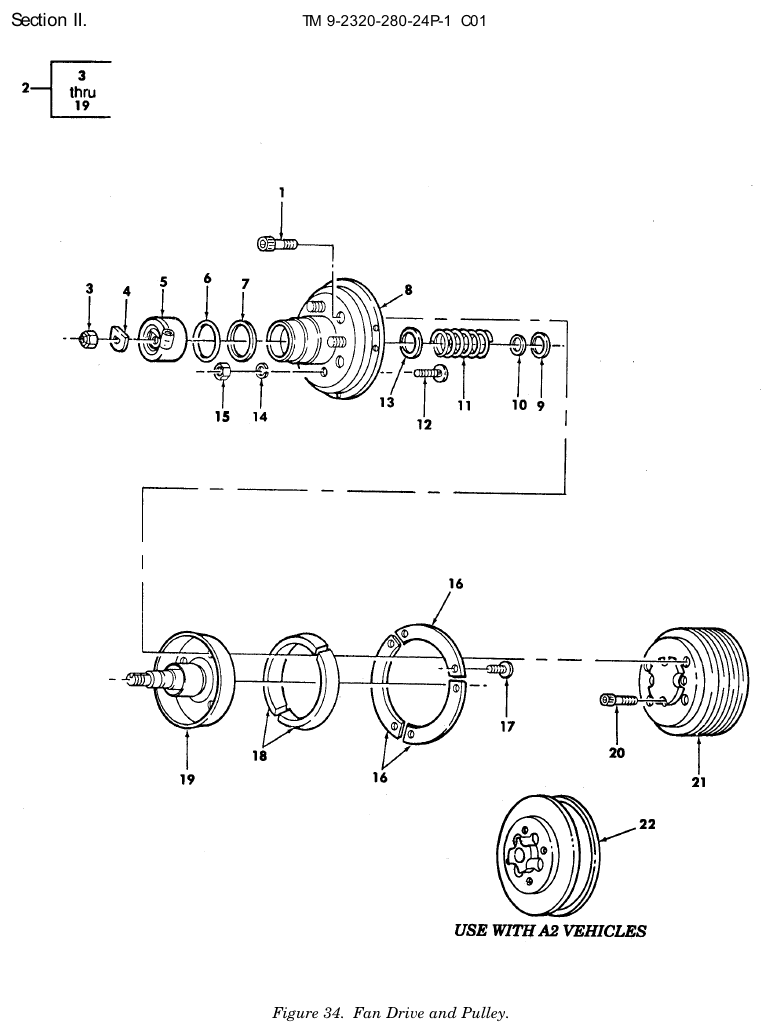

TM 9-2320-280-24P figure 34, Fan Drive and Pulley: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Screw NSN 5305-00-366-3337 · P/N 138242 SCREW 3/8-16 X 1.00 Fits: All models	4	We can source it
2	Fan Engine Clutch NSN 2930-01-168-7870 · P/N 1090-06404-01 IMPELLER,FAN,AXIAL Fits: All models	1	115 in stock $989.00our price Buy online ↗
3	Self-Locking Hexagon Nut NSN 5310-01-194-0481 · P/N 3029-01371-01 NUT,SELF-LOCKING,HE Fits: All models	1	We can source it
4	Flat Washer NSN 5310-01-189-8468 · P/N 3058-01264-02 WASHER,FLAT Fits: All models	1	We can source it
5	Fan Clutch Cylinder Assembly NSN 2930-01-189-1744 · P/N 4043-38443-01 CYLINDER ASSEMBLY,F Fits: All models	1	2 in stock $103.19 per assemblygov't list price
6	O-Ring NSN 5331-01-192-8892 · P/N 3018-01265-01 O-RING Fits: All models	1	898 in stock
7	Dust Seal NSN 5330-01-247-8438 · P/N 3018-01339-01 SEAL,DUST Fits: All models	1	4 in stock $25–$60 eachtypical
8	Housing Assembly P/N 4040-38442-01 HOUSING ASSEMBLY Fits: All models	1	Ask us
9	O-Ring NSN 5331-01-195-1500 · P/N 9002-00741-58 O-RING Fits: All models	1	101 in stock
10	O-Ring NSN 5330-01-194-8966 · P/N 9002-00181-48 O-RING Fits: All models	1	100 in stock
11	Helical Compression Spring NSN 5360-01-190-6214 · P/N 4088-35869-01 SPRING,HELICAL,COMP Fits: All models	1	We can source it $25–$40 eachtypical
12	Plain Stud NSN 5307-01-190-5854 · P/N 3051-01405-01 STUD,PLAIN 3/8-24 X 1.16 Fits: All models	4	We can source it
13	Plain Encased Seal NSN 5330-01-252-0461 · P/N 3018-01425-01 SEAL,PLAIN ENCASED Fits: All models	1	7 in stock
14	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK Fits: All models	4	1,162 in stock
15	Plain Hexagon Nut NSN 5310-01-190-4607 · P/N 3030-00364-01 NUT,PLAIN,HEXAGON 3/8-16 Fits: All models	4	We can source it
16	Fan Clutch Lining P/N 4073-38424-01 LINING,FAN CLUTCH Fits: All models	3	Ask us
17	Cap Socket Head Screw NSN 5305-00-052-6456 · P/N MS16996-10 SCREW,CAP,SOCKET HE Fits: All models	6	413 in stock
18	Friction Lining NSN 2930-01-189-8643 · P/N 4026-38368-01 LINING,FRICTION Fits: All models	2	254 in stock $45–$90 eachtypical
19	Shaft Assembly P/N 4079-38441-01 SHAFT ASSEMBLY Fits: All models	1	Ask us
20	Cap Socket Head Screw NSN 5305-01-189-3769 · P/N 12339240 SCREW,CAP,SOCKET HE 8-1.25 X 20MM Fits: All models	4	14 in stock
21	Cone Pulley NSN 3020-01-313-0682 · P/N 12338782 PULLEY,CONE Fits: M997, M997A1	1	We can source it $131.99 per eachgov't list price
21	Groove Pulley NSN 3020-01-188-3885 · P/N 12338781 PULLEY,GROOVE Fits: All A0 models except M997; all A1 models except M997A1, plus M1121	1	597 in stock $82.00our price Buy online ↗
22	Flat Pulley NSN 3020-01-442-7278 · P/N RCSK18221 PULLEY,FLAT Fits: All A2 models, plus M1123	1	We can source it $157.82 per eachgov't list price
22	Flat Pulley NSN 3020-01-488-5638 · P/N 12469472 PULLEY,GROOVED (SERIAL NUMBER 196901 AND ABOVE) Fits: All A2 models, plus M1123	1	1 in stock $148.49 per eachgov't list price

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
