HMMWV Generator, 60 AMP, 100 AMP, Belts, Pulley, and Mounting Hardware TM 9-2320-280-24P · Fig. 35

Every part in figure 35 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 06 Electrical System: 49 lines, 38 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

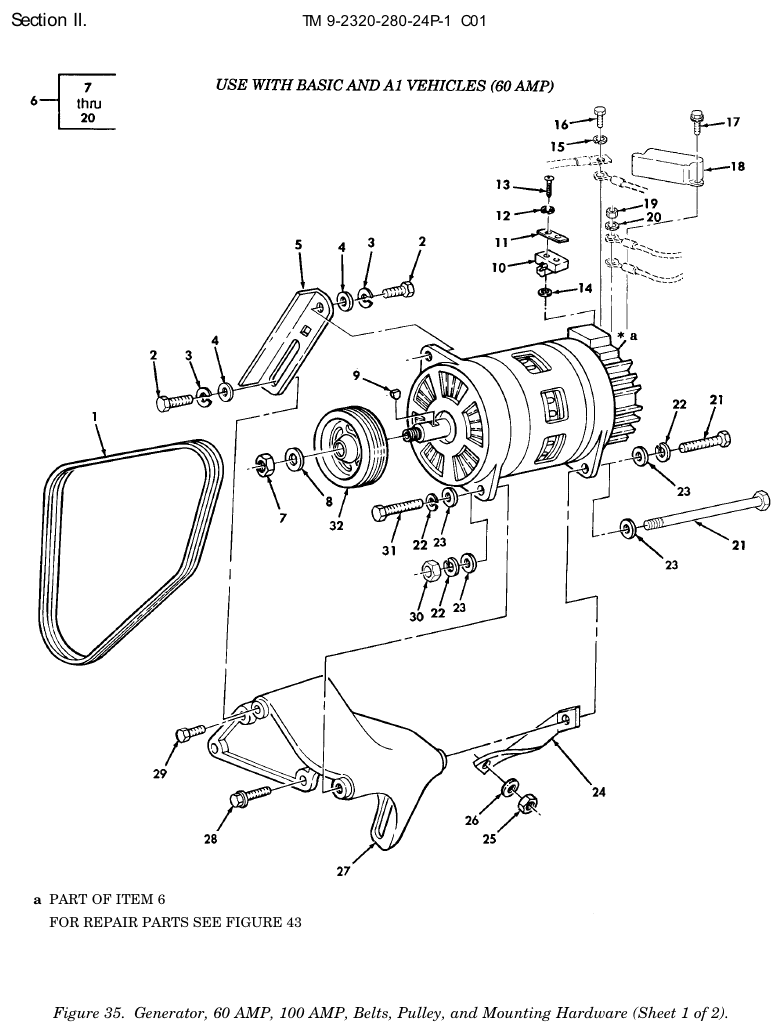

TM 9-2320-280-24P figure 35, Generator, 60 AMP, 100 AMP, Belts, Pulley, and Mounting Hardware, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	V Matched Set Belts NSN 3030-01-282-6968 · P/N 12339359-12 BELTS,V,MATCHED SET Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	103 in stock $50–$95 per settypical
2	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	26 in stock
3	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	1,162 in stock
4	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	6 in stock
5	Generator Bracket NSN 2920-01-168-7914 · P/N 12338792 GENERATOR BRACKET Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	80 in stock $25–$40 eachtypical
6	Engine Accessory Generator NSN 2920-00-909-2483 · P/N 10929868 GENERATOR,ENGINE AC Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	57 in stock $800.00our price Buy online ↗
7	Self-Locking Hexagon Nut NSN 5310-00-449-2381 · P/N MS21245-L10 NUT,SELF-LOCKING,HE 5/8-18 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	747 in stock
8	Flat Washer NSN 5310-00-614-3505 · P/N MS15795-820 WASHER,FLAT 5/8 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1 in stock
9	Woodruff Key NSN 5315-00-616-5526 · P/N MS35756-8 KEY,WOODRUFF Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	455 in stock
10	Plate Spacer NSN 5365-01-289-4434 · P/N 12357116 SPACER,PLATE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	6 in stock
11	Plate Spacer NSN 5365-01-289-7852 · P/N 12357126 SPACER,PLATE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M998A1, M1097A1, plus M1121	1	5 in stock
12	Lock Washer NSN 5310-00-721-7809 · P/N MS35340-43 WASHER,LOCK #10 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	230 in stock
13	Machine Screw NSN 5305-00-984-6212 · P/N MS35206-265 SCREW,MACHINE #10-32 X 3/4 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	177 in stock
14	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	We can source it
15	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	2,036 in stock
16	Machine Bolt NSN 5306-00-226-4822 · P/N B1821BH031C050N BOLT,MACHINE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
17	Assembled Washer Screw NSN 5305-00-638-0714 · P/N 6-321-4 SCREW,ASSEMBLED WAS Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	125 in stock
18	Generator Parts Kit NSN 2920-01-168-4127 · P/N 35-762 PARTS KIT,GENERATOR Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	167 in stock
19	Plain Hexagon Nut NSN 5310-00-768-0319 · P/N MS51968-2 NUT,PLAIN,HEXAGON Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	508 in stock
20	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1,162 in stock
21	Cap Hexagon Head Screw NSN 5305-01-429-9149 · P/N B1821BH044F975N SCREW,CAP,HEXAGON H USE WITH P/N 12342036 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	27 in stock
21	Machine Bolt NSN 5306-01-276-0848 · P/N MS35764-853 BOLT,SELF-LOCKING 7/16-14 X 2.0, USE WITH P/N 5597344 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
22	Lock Washer NSN 5310-00-209-0965 · P/N MS35338-47 WASHER,LOCK 7/16 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	2,764 in stock
23	Flat Washer NSN 5310-00-809-4085 · P/N 9420022 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	170 in stock
24	Mounting Bracket NSN 5340-01-293-0125 · P/N 5935091 BRACKET,MOUNTING Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	9 in stock $25–$40 eachtypical
25	Plain Hexagon Nut NSN 5310-01-366-3539 · P/N B18241B100F NUT,PLAIN,HEXAGON Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
26	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1 in stock
27	Engine Accessory Bracket NSN 5340-01-257-7706 · P/N 5597344 BRACKET,ENGINE ACCE USE WITH 2.0 INCH AND 1.5 INCH BOLTS Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	17 in stock $283.00our price Buy online ↗
27	Mounting Bracket NSN 5340-01-448-4245 · P/N 12342036 BRACKET,MOUNTING USE WITH 9.75 INCH BOLTS Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $316.03 per eachgov't list price
28	Machine Bolt NSN 5306-01-263-8889 · P/N 12340845-2 BOLT,MACHINE 10-1.5 X 30 MM Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	65 in stock
29	Machine Bolt NSN 5306-01-270-5448 · P/N 12340845-3 BOLT,MACHINE 10-1.5 X 45 MM Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	10 in stock
30	Plain Hexagon Nut NSN 5310-01-457-3171 · P/N 9417028 NUT,PLAIN,HEXAGON USE WITH P/N 12342036 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
31	Cap Hexagon Head Screw NSN 5305-00-071-2055 · P/N B1821BH044C150N SCREW,CAP,HEXAGON H 7/16-14 X 1.50 USE WITH P/N 5597344 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	15 in stock
32	Groove Pulley NSN 3020-01-198-0633 · P/N 12339395 PULLEY,GROOVE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	793 in stock $50–$90 eachtypical
33	Engine Alternator P/N 12340912 ALTERNATOR,ENGINE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
34	Engine Generator Regulator NSN 2920-01-199-2391 · P/N R027096300 REGULATOR,ENGINE GE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	35 in stock $385.66our price Buy online ↗
35	Capacitor Gen Cover NSN 2920-01-078-5769 · P/N 78403 COVER,CAPACITOR,GEN Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	7 in stock $45–$85 eachtypical
36	Machine Screw NSN 5305-00-989-6265 · P/N MS35207-262 SCREW,MACHINE #10-32 X 7/16 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	347 in stock
37	Lock Washer NSN 5310-01-162-9661 · P/N 36896 WASHER,LOCK #10 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	We can source it
38	Fan Impeller Guard NSN 4140-01-303-1338 · P/N 12341875 GUARD,FAN IMPELLER Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $115.43 per assemblygov't list price
39	Engine Generator Regul Parts Kit NSN 2920-01-199-2395 · P/N A040096268 PARTS KIT,ENGINE GE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	82 in stock $25–$50 per kittypical
40	Engine Generator Regul Parts Kit NSN 2920-01-199-2394 · P/N A040096267 PARTS KIT,ENGINE GE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	5 in stock $30–$60 per kittypical
41	Straight Headless Pin NSN 5315-01-333-5117 · P/N 96309 PIN,STRAIGHT,HEADLE Fits: All A1 models except M996A1, M997A1, M1097A1, plus M966, M998, M1025, M1026, M1035, M1037 and 1 more	4	We can source it $30–$70 eachtypical
42	Flat Washer NSN 6310-00-167-0826 · P/N AN960-1216 WASHER,FLAT 3/4 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	499 in stock
43	Self-Locking Hexagon Nut NSN 5310-00-939-0783 · P/N MS21083N12 NUT,SELF-LOCKING,HE 3/4-16 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	45 in stock
44	Woodruff Key NSN 5315-00-616-5529 · P/N MS35756-16 KEY,WOODRUFF Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	4 in stock
45	Groove Pulley NSN 3020-01-204-8132 · P/N 12339412 PULLEY,GROOVE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	599 in stock $35–$75 eachtypical
46	Tie Down Electrical Compon Strap NSN 5975-01-273-8133 · P/N MS3367-3 STRAP,TIEDOWN,ELECT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
47	Decal NSN 7690-01-197-5500 · P/N 12339064 DECAL Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1 in stock

Buy the 3 in-stock parts on our store ↗
