HMMWV Heater, Filter, and Attaching Hardware, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 343

Every part in figure 343 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 22 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

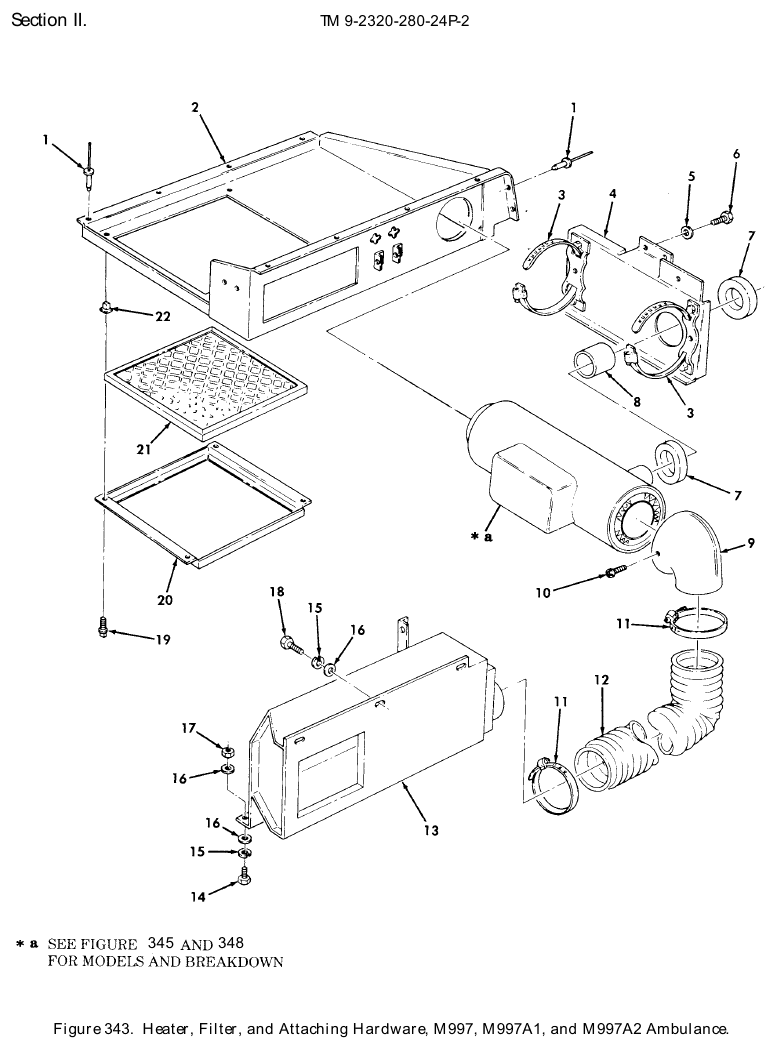

TM 9-2320-280-24P figure 343, Heater, Filter, and Attaching Hardware, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND Fits: M997, M997A1, M997A2	10	We can source it
2	Air Circulating Ventilator NSN 2540-01-291-1043 · P/N 410912 VENTILATOR,AIR CIRC Fits: M997, M997A1, M997A2	1	We can source it $2,430.64 per eachgov't list price
3	Hose Clamp NSN 4730-00-908-6294 · P/N 96HSS CLAMP,HOSE Fits: M997, M997A1, M997A2	2	633 in stock
4	Mounting Bracket P/N 5597900 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	1	Ask us
5	Lock Washer NSN 5310-00-274-8710 · P/N 202751 WASHER,LOCK #10 Fits: M997, M997A1, M997A2	2	We can source it
6	Cap Hexagon Head Screw NSN 5305-01-296-7762 · P/N 201686 SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: M997, M997A1, M997A2	2	We can source it
7	Gasket NSN 5330-01-270-8317 · P/N 5741471 GASKET Fits: M997, M997A1, M997A2	2	3 in stock $93.10our price Buy online ↗
8	Frame Collar NSN 2510-01-273-0572 · P/N 5741525 COLLAR,FRAME Fits: M997, M997A1, M997A2	1	8 in stock $485.10our price Buy online ↗
9	Air Conditioning-Heating Adapter NSN 4520-01-192-6073 · P/N 586230 ADAPTER,AIR CONDITI Fits: M997, M997A1, M997A2	1	We can source it $90–$155 eachtypical
10	Machine Screw NSN 5305-00-984-6195 · P/N MS35206-247 SCREW,MACHINE Fits: M997, M997A1, M997A2	3	We can source it
11	Hose Clamp NSN 4730-01-273-7660 · P/N 63060 CLAMP,HOSE Fits: M997, M997A1, M997A2	2	We can source it
12	Nonmetallic Hose NSN 4720-01-265-3238 · P/N 319032 HOSE,NONMETALLIC Fits: M997, M997A1, M997A2	1	We can source it $166.26 per eachgov't list price
13	Air Circulating Ventilator NSN 2540-01-296-9358 · P/N 410922 VENTILATOR,AIR CIRC Fits: M997, M997A1, M997A2	1	9 in stock $862.39our price Buy online ↗
14	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M997, M997A1, M997A2	4	471 in stock
15	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M997, M997A1, M997A2	7	4,285 in stock
16	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	11	2,325 in stock
17	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M997, M997A1, M997A2	4	626 in stock
18	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M997, M997A1, M997A2	3	559 in stock
19	Tapping Screw NSN 5305-01-264-5874 · P/N 12340792 SCREW,TAPPING #10 X 1/2 Fits: M997, M997A1, M997A2	4	We can source it
20	Fluid Filter Body NSN 2940-01-285-2942 · P/N 513447 FILTER BODY,FLUID Fits: M997, M997A1, M997A2	1	We can source it $75–$130 eachtypical
21	Fluid Filter Element NSN 2540-01-265-3266 · P/N 407234 FILTER ELEMENT,FLUI Fits: M997, M997A1, M997A2	1	685 in stock $68.59our price Buy online ↗
22	Expansion Nut NSN 5310-01-270-5394 · P/N 5741475 NUT,EXPANSION Fits: M997, M997A1, M997A2	4	We can source it

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
