HMMWV Heater Blower Assembly, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 342

Every part in figure 342 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 8 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

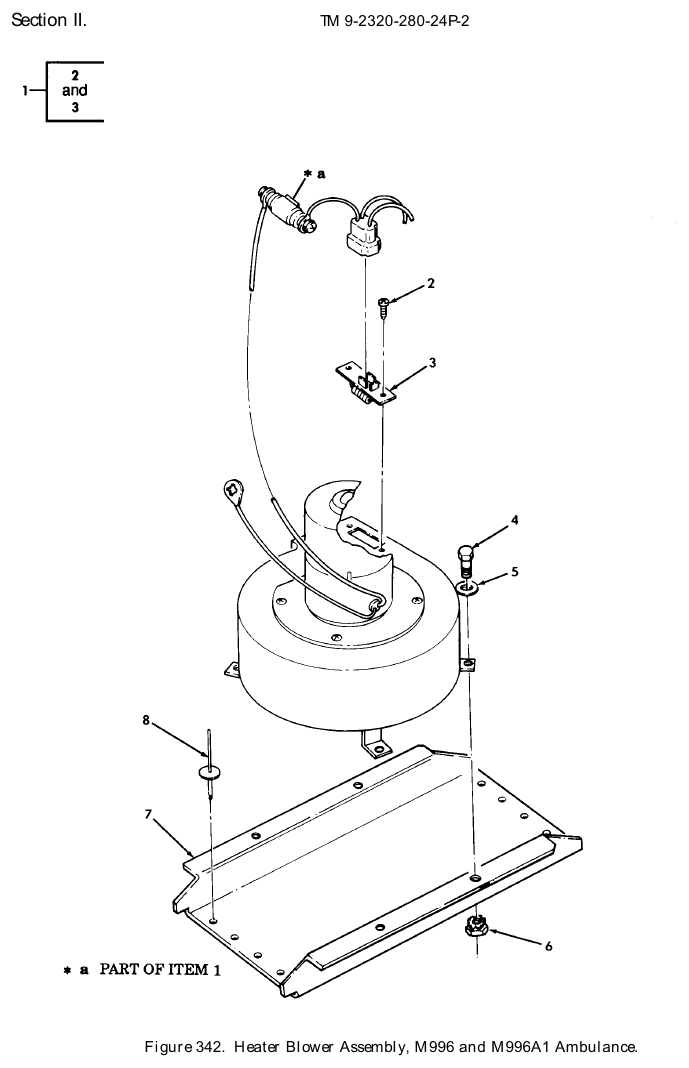

TM 9-2320-280-24P figure 342, Heater Blower Assembly, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Centrifugal Fan NSN 4140-01-265-3151 · P/N 12341610 FAN,CENTRIFUGAL Fits: M996, M996A1	1	3 in stock $3,604.26 per assemblygov't list price
2	Tapping Screw NSN 5305-01-270-5419 · P/N 200335 SCREW,TAPPING,THREA Fits: M996, M996A1	2	We can source it
3	Fixed Film Resistor NSN 5905-01-270-0966 · P/N HV033596 RESISTOR,FIXED,FILM Fits: M996, M996A1	1	We can source it $283.70 per eachgov't list price
4	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: M996, M996A1	3	471 in stock
5	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M996, M996A1	3	4,285 in stock
6	Plain Blind Rivet Nut NSN 5310-01-198-1722 · P/N 5982526 NUT,PLAIN,BLIND RIV Fits: M996, M996A1	3	We can source it
7	Mounting Bracket NSN 5340-01-289-3244 · P/N 12341661 BRACKET,MOUNTING Fits: M996, M996A1	1	We can source it $361.75 per eachgov't list price
8	Blind Rivet NSN 5320-01-264-5978 · P/N 12339355-2 RIVET,BLIND 3/16 Fits: M996, M996A1	8	We can source it
