HMMWV Heater Assembly, Multifuel, B=Model, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 345

Every part in figure 345 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 43 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

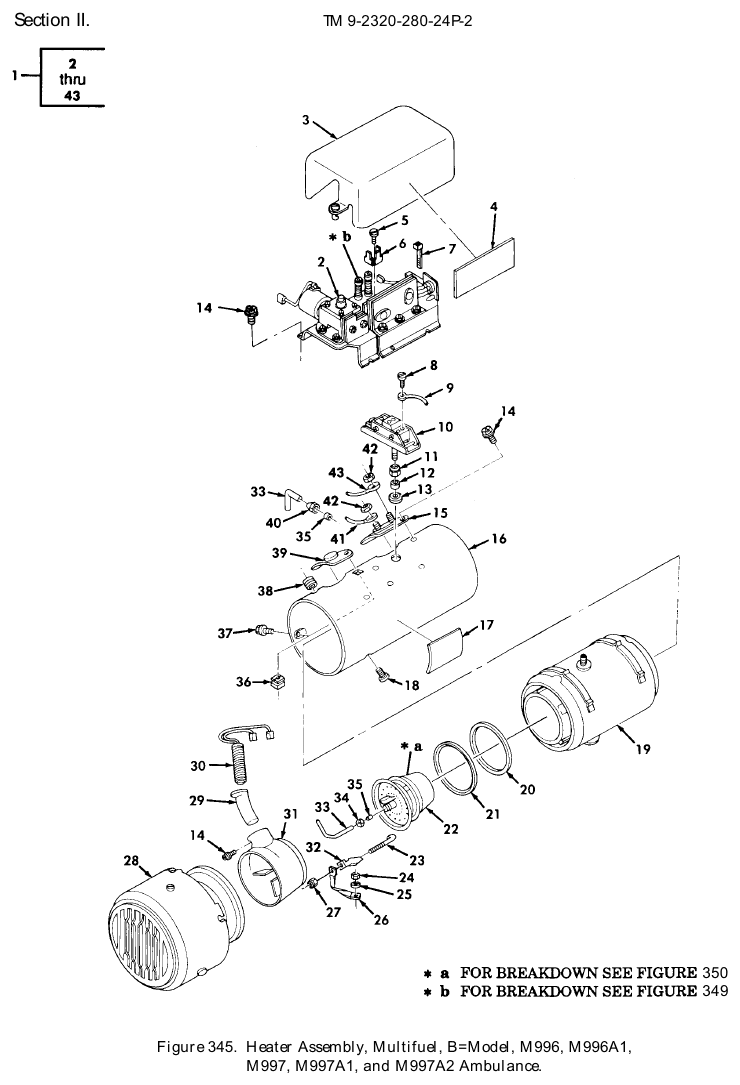

TM 9-2320-280-24P figure 345, Heater Assembly, Multifuel, B=Model, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Compartment Heater NSN 2540-01-194-3323 · P/N MIL-PRF-62550/3 HEATER,VEHICULAR,CO Fits: M996, M996A1, M997, M997A1, M997A2	1	88 in stock $11,926.48our price Buy online ↗
2	Bracket P/N G706064 BRACKET,COMPONENT H Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
3	Access Cover NSN 5340-01-290-6331 · P/N G706033 COVER,ACCESS Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $1,025.94 per eachgov't list price
4	Decal NSN 7690-01-283-7938 · P/N 706025 DECAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $45–$85 eachtypical
5	Cap Hexagon Head Screw NSN 5305-01-290-6290 · P/N 706074 SCREW,CAP,HEXAGON H #8-32 X 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $25–$40 eachtypical
6	Stationary Terminal NSN 5940-01-292-6907 · P/N 706070 TERMINAL,STATIONARY Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
7	Tiedown Strap NSN 5975-01-128-0390 · P/N PLT2S STRAP,TIEDOWN,ELECT Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
8	Assembled Washer Screw NSN 5305-00-456-2582 · P/N 170677 SCREW,ASSEMBLED WAS #6-32 X 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	5	We can source it
9	Special Purpose E Cable Assembly NSN 6150-01-287-9918 · P/N G706052-25 CABLE ASSEMBLY,SPEC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it quote only $148.97 per eachgov't list price
10	Thermostatic Switch NSN 5930-00-345-5455 · P/N 11663057 SWITCH,THERMOSTATIC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $2,726.47 per eachgov't list price
11	Coupling Electrical Conduit Nut NSN 5975-01-288-6594 · P/N 705267 NUT,COUPLING,ELECTR 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $446.72 per eachgov't list price
12	Compression Tube-Hose Fit Sleeve NSN 4730-01-193-7390 · P/N 222-652 SLEEVE,COMPRESSION, Fits: M996, M996A1, M997, M997A1, M997A2	1	23 in stock
13	Flat Washer NSN 5310-01-287-8726 · P/N 705930 WASHER,FLAT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $60–$100 eachtypical
14	Machine Screw NSN 5305-00-403-5130 · P/N 423531 SCREW,MACHINE #8-32 X 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	12	We can source it $25–$40 eachtypical
15	Thermostatic Switch NSN 5930-00-679-5925 · P/N 10948233 SWITCH,THERMOSTATIC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $543.55 per eachgov't list price
16	Housing Assembly P/N G706034 HOUSING ASSEMBLY Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
17	Identification Plate NSN 9905-01-283-7937 · P/N 706015 PLATE,IDENTIFICATIO Fits: M996, M996A1, M997, M997A1, M997A2	1	33 in stock $17.15our price Buy online ↗
18	Assembled Washer Screw NSN 5305-00-576-2335 · P/N 487357 SCREW,ASSEMBLED WAS #8-32 X 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
19	Heat Exchanger NSN 2540-01-165-0465 · P/N G704232 HEAT EXCHANGER Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $4,428.35 per eachgov't list price
20	Gasket NSN 5330-00-089-0978 · P/N 10948235 GASKET PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
21	O-Ring NSN 5331-00-089-0998 · P/N 718768-23 O-RING PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	9 in stock
22	Space Heater Burner Assembly NSN 4520-01-284-7099 · P/N G706055 BURNER ASSEMBLY,SPA Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $989.43 per eachgov't list price
23	Hook Bolt NSN 5306-01-351-7742 · P/N 703547 BOLT,HOOK PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $107.49 per eachgov't list price
24	Plain Hexagon Nut NSN 5310-00-333-7341 · P/N 487283 NUT,PLAIN,HEXAGON #8-32 PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	4	2 in stock
25	Lock Washer NSN 5310-00-061-0004 · P/N 475005 WASHER,LOCK #8 Fits: M996, M996A1, M997, M997A1, M997A2	1	4 in stock
26	Electrical Lead NSN 6150-01-165-4667 · P/N G704373 LEAD,ELECTRICAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it quote only $55–$105 eachtypical
27	Self-Locking Hexagon Nut NSN 5310-01-287-6543 · P/N 706131 NUT,SELF-LOCKING,HE #8-32 PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $30–$55 eachtypical
28	Heater Blower Assembly NSN 2540-01-289-8328 · P/N G706014 BLOWER ASSEMBLY,HEA Fits: M996, M996A1, M997, M997A1, M997A2	1	8 in stock $2,757.50 per assemblygov't list price
29	Igniter Tube and Bracket Assembl NSN 2540-01-165-8176 · P/N G704288-1 IGNITER TUBE AND BR Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $203.48 per eachgov't list price
30	Spark Fuel Igniter NSN 4520-00-217-5782 · P/N CS-4520-SV-0705 IGNITER,SPARK,FUEL Fits: M996, M996A1, M997, M997A1, M997A2	1	221 in stock $269.85our price Buy online ↗
31	Baffle Heater Housing NSN 2540-01-165-8175 · P/N G704177 HOUSING,BAFFLE,HEAT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $353.87 per eachgov't list price
32	Synchro Clamp NSN 5340-01-236-5101 · P/N 703546 CLAMP,RIM CLENCHING PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $30–$65 eachtypical
33	Metal Tube Assembly NSN 4710-01-163-2805 · P/N 704363 TUBE ASSEMBLY,METAL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $344.69 per assemblygov't list price
34	Tube Coupling Nut NSN 4730-00-043-3750 · P/N 120487 NUT,TUBE COUPLING Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock
35	Compression Tube-Hose Fit Sleeve NSN 4730-00-701-7737 · P/N 476624 SLEEVE,COMPRESSION, Fits: M996, M996A1, M997, M997A1, M997A2	2	1 in stock
36	Heater H Receptacle NSN 2540-01-290-0715 · P/N 706041 RECEPTACLE,HEATER H Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $35–$70 eachtypical
37	Machine Screw NSN 5305-00-018-8370 · P/N 489142 SCREW,MACHINE #8-32 X 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $25–$40 eachtypical
38	Nonmetallic Grommet NSN 5325-00-543-2902 · P/N 488993 GROMMET,NONMETALLIC Fits: M996, M996A1, M997, M997A1, M997A2	1	150 in stock
39	Heater Hatch Cover NSN 2540-01-289-8329 · P/N G706035 HATCH COVER,HEATER Fits: M996, M996A1, M997, M997A1, M997A2	1	198 in stock $128.14 per eachgov't list price
40	Tube Fitting Locknut NSN 4730-01-153-1871 · P/N 1611X3 LOCKNUT,TUBE FITTIN Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
41	Special Purpose E Cable Assembly NSN 6150-01-291-4809 · P/N G706052-9 CABLE ASSEMBLY,SPEC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it quote only
42	Plain Assembled Washer Nut NSN 5310-00-063-7360 · P/N 841-6-32 NUT,PLAIN,ASSEMBLED #6-32 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
43	Special Purpose E Cable Assembly NSN 6150-01-287-9917 · P/N G706052-21 CABLE ASSEMBLY,SPEC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it quote only $80–$135 eachtypical

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
