HMMWV Heater Grille, Exhaust Pipe, and Mounting Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 346

Every part in figure 346 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 8 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

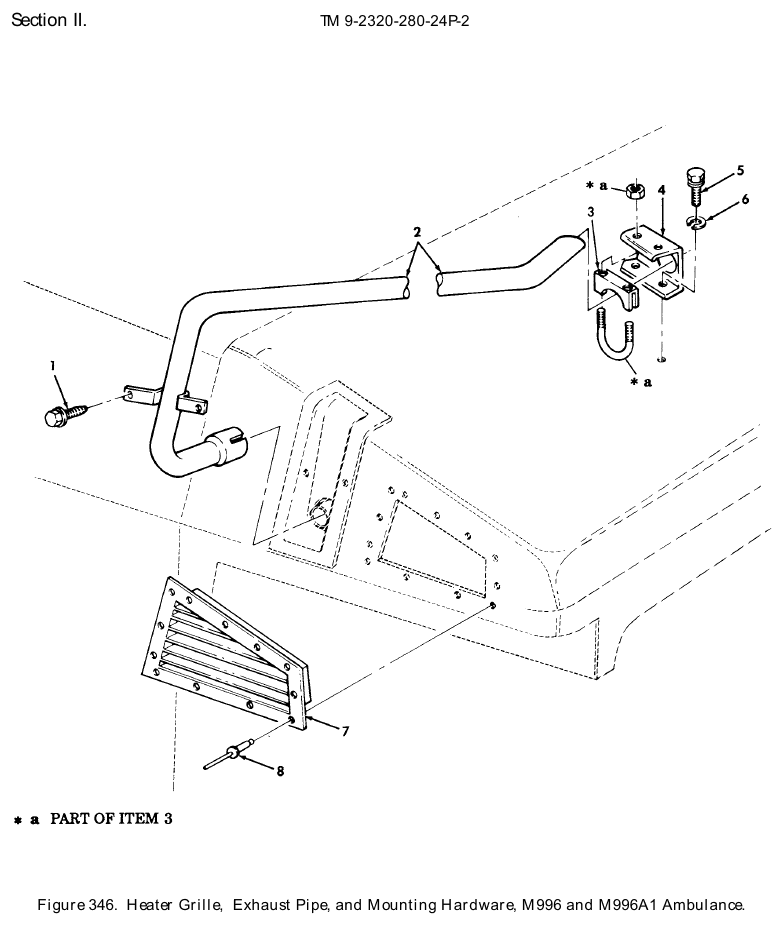

TM 9-2320-280-24P figure 346, Heater Grille, Exhaust Pipe, and Mounting Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.125 Fits: M996, M996A1	2	84,127 in stock
2	Exhaust Pipe NSN 2990-01-265-3297 · P/N 12341271 PIPE,EXHAUST Fits: M996, M996A1	1	We can source it $404.10 per eachgov't list price
3	Loop Clamp NSN 5340-01-333-0162 · P/N A-A-52406-4SA CLAMP,LOOP Fits: M996, M996A1	1	We can source it
4	Double Angle Bracket NSN 5340-01-266-3843 · P/N 12341229 BRACKET,DOUBLE ANGL Fits: M996, M996A1	1	We can source it $362.27 per eachgov't list price
5	Tapping Screw NSN 5305-01-361-5353 · P/N 9414241 SCREW,TAPPING #10-32 X .50 Fits: M996, M996A1	4	40 in stock
6	Lock Washer NSN 5310-00-080-9786 · P/N MS45904-60 WASHER,LOCK 5/16 Fits: M996, M996A1	2	8 in stock
7	Metal Grille NSN 5340-01-270-4415 · P/N 12341552 GRILLE,METAL Fits: M996, M996A1	1	We can source it $313.80 per eachgov't list price
8	Solid Rivet NSN 5320-01-271-1834 · P/N 5575940 RIVET,SOLID 3/16 Fits: M996, M996A1	12	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
