HMMWV Burner Assembly, A-Model, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 351

Every part in figure 351 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 11 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

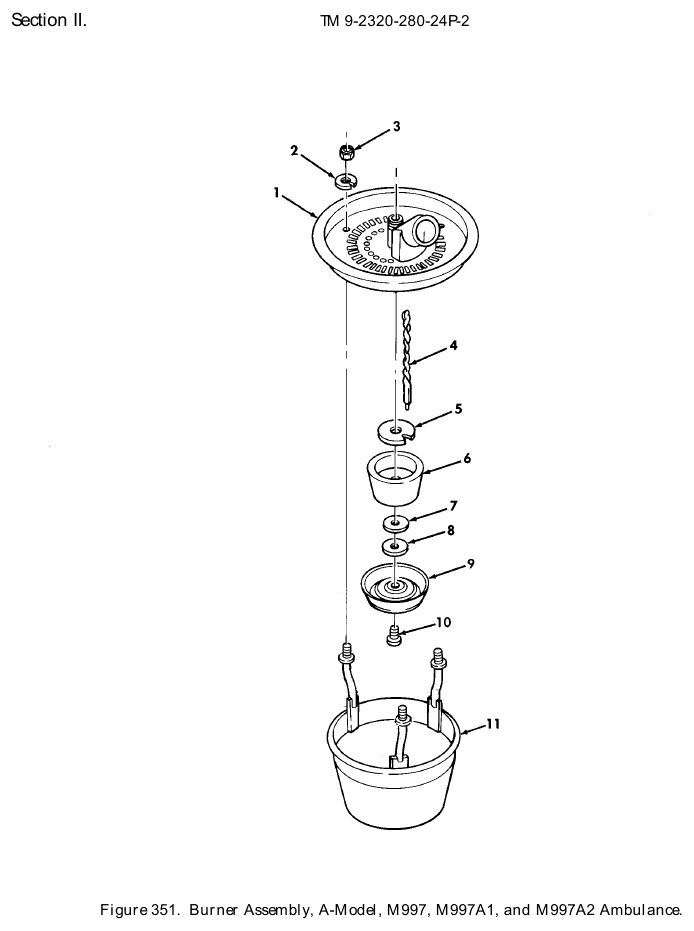

TM 9-2320-280-24P figure 351, Burner Assembly, A-Model, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Header Plate Assembly
NSN 2540-01-165-0814 · P/N G704284
HEADER PLATE ASSEMB PART OF KIT P/N 5704052
Fits: M997, M997A1, M997A2
 1 We can source it
$567.10 per eachgov't list price
2
Lock Washer
NSN 5310-01-063-8522 · P/N 705237
WASHER,LOCK #8
Fits: M997, M997A1, M997A2
 3 We can source it
3
Plain Hexagon Nut
NSN 5310-01-057-3098 · P/N 705068
NUT,PLAIN,HEXAGON #8-32
Fits: M997, M997A1, M997A2
 3 We can source it
$40–$75 eachtypical
4
Wick
P/N 705944
WICK PART OF KIT P/N 5704052
Fits: M997, M997A1, M997A2
 1 Ask us
5
Fiber Washer
P/N 704191
WASHER,FIBER PART OF KIT P/N 5704052
Fits: M997, M997A1, M997A2
 1 Ask us
6
Vaporizer
P/N 704192
VAPORIZER PART OF KIT P/N 5704052
Fits: M997, M997A1, M997A2
 1 Ask us
7
Flat Washer
P/N 704678
WASHER,FLAT PART OF KIT P/N 5704052
Fits: M997, M997A1, M997A2
 1 Ask us
8
Washer
P/N 704190
WASHER PART OF KIT P/N 5704052
Fits: M997, M997A1, M997A2
 1 Ask us
9
Fuel Vapor Shield
NSN 2540-01-168-9482 · P/N 704181
SHIELD,FUEL VAPOR PART OF KIT P/N 5704052
Fits: M997, M997A1, M997A2
 1 We can source it
$915.77 per eachgov't list price
10
Machine Screw
NSN 5305-01-097-8178 · P/N 704206
SCREW,MACHINE #8-32 X 1/4 PART OF KIT P/N 5704052
Fits: M997, M997A1, M997A2
 1 We can source it
$25–$40 eachtypical
11
Burner Cup and Stud
NSN 2540-01-168-9481 · P/N 6706133
BURNER CUP AND STUD
Fits: M997, M997A1, M997A2
 1 We can source it
$518.21 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
