HMMWV Burner Assembly, B-Model, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 350

Every part in figure 350 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 12 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

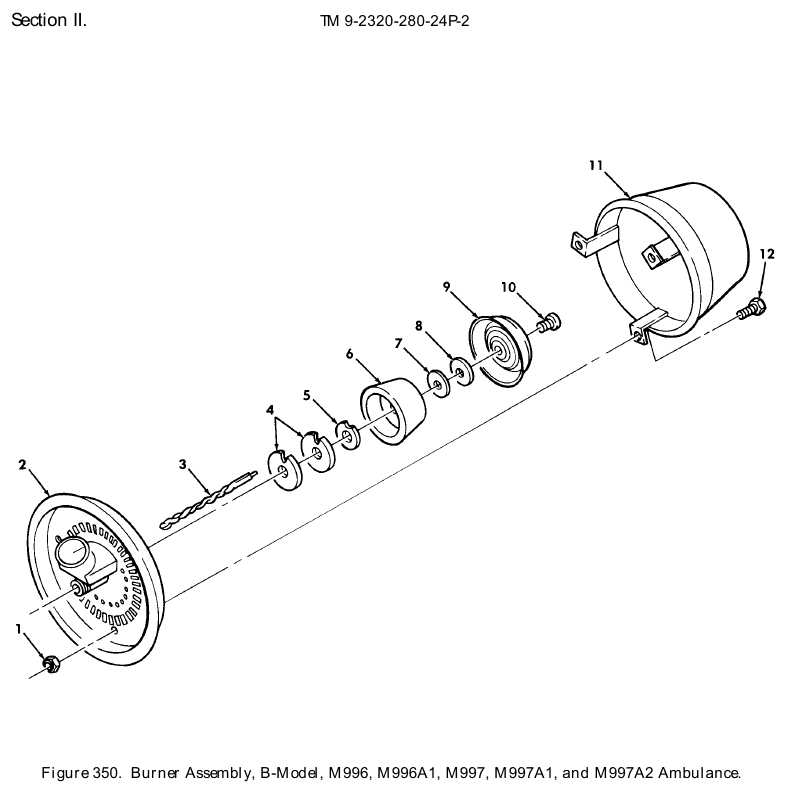

TM 9-2320-280-24P figure 350, Burner Assembly, B-Model, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hexagon Nut P/N 705587 NUT,HEXAGON #8-32 PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	3	Ask us
2	Header Plate Assembly NSN 2540-01-165-0814 · P/N G704284 HEADER PLATE ASSEMB PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $567.10 per eachgov't list price
3	Wick P/N 705944 WICK PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
4	Washer P/N 706062 WASHER PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	2	Ask us
5	Washer P/N 706049 WASHER PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
6	Vaporizer P/N 706063 VAPORIZER PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
7	Flat Washer P/N 704678 WASHER,FLAT PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
8	Washer P/N 704190 WASHER PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
9	Fuel Vapor Shield NSN 2540-01-168-9482 · P/N 704181 SHIELD,FUEL VAPOR PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $915.77 per eachgov't list price
10	Machine Screw NSN 5305-01-097-8178 · P/N 704206 SCREW,MACHINE #8-32 X 1/4 PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
11	Cup P/N G706039 CUP Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
12	Screw P/N 705032 SCREW #8-32 X 3/8 PART OF KIT P/N 5704052 Fits: M996, M996A1, M997, M997A1, M997A2	3	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
