HMMWV Ambulance Spreader Assembly TM 9-2320-280-24P · Fig. 353

Every part in figure 353 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 10 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

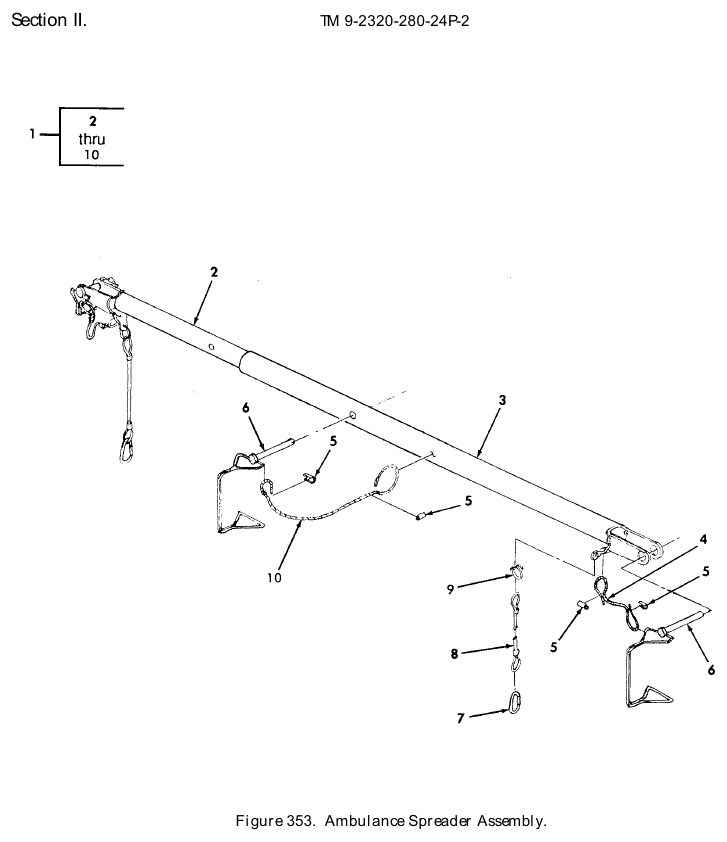

TM 9-2320-280-24P figure 353, Ambulance Spreader Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Sling Spreader NSN 3940-01-313-8839 · P/N 12342102 SPREADER,SLING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $295.37 per eachgov't list price
2	Extension Bar Assy P/N 12342097 EXTENSION BAR ASSY Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
3	Extension Bar Assy P/N 12342099 EXTENSION BAR ASSY Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
4	Cable Make From Rope P/N 12342102-3 CABLE MAKE FROM ROPE,WIRE P/N 8930T31, 10 INCHES LONG Fits: M996, M996A1, M997, M997A1, M997A2	2	Ask us
5	Wire Rope Swaging Sleeve NSN 4030-01-124-8201 · P/N MS51844-82 SWAGING SLEEVE,WIRE Fits: M996, M996A1, M997, M997A1, M997A2	6	10 in stock
6	Straight Headed Pin NSN 5315-01-406-5019 · P/N 12342121 PIN,STRAIGHT,HEADED Fits: M996, M996A1, M997, M997A1, M997A2	3	We can source it
7	Snap Hook NSN 5340-01-125-1682 · P/N 3933T22 SNAP HOOK Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
8	Single Leg Wire Rope Assembly NSN 4010-01-406-6963 · P/N 12342141 WIRE ROPE ASSEMBLY, Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $207.49 per eachgov't list price
9	Chain Lap Link NSN 4010-01-410-9099 · P/N 12342102-4 LINK,CHAIN,LAP Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $25–$40 eachtypical
10	Cable Make From Rope P/N 12342102-2 CABLE MAKE FROM ROPE,WIRE P/N 8930T31, 20 INCHES LONG Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
