HMMWV Data Plates, Dash Panel TM 9-2320-280-24P · Fig. 354

Every part in figure 354 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2210 Data Plates and Instruction Holders: 64 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

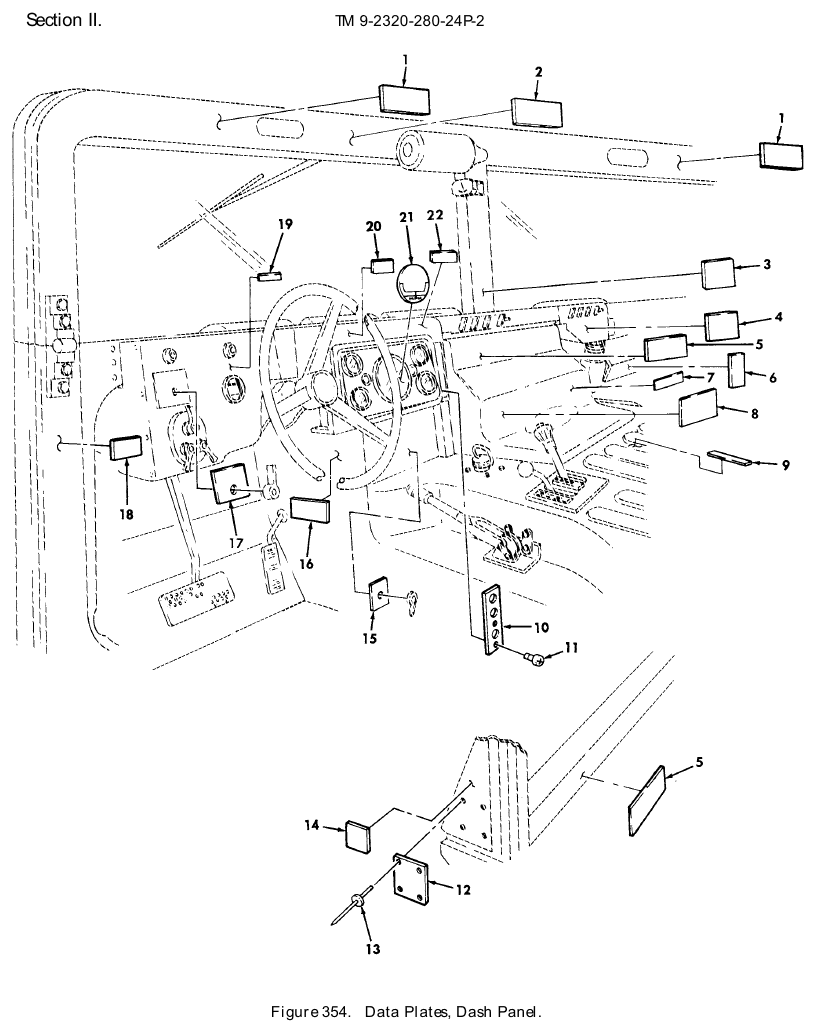

TM 9-2320-280-24P figure 354, Data Plates, Dash Panel: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Decal NSN 7690-01-204-0077 · P/N 12339053 DECAL Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	2	We can source it
2	Instruction Plate NSN 9905-00-198-2728 · P/N 11643398 PLATE,INSTRUCTION CAUTION,HIGH INTENSITY NOISE Fits: All models	1	3 in stock
3	Decal NSN 7690-01-315-8539 · P/N 12342165 MARKER,IDENTIFICATI VEHICLE BREAK- IN SERVICE Fits: All models	1	1 in stock
4	Identification Marker NSN 7690-01-476-6089 · P/N 12447011 DECAL HEATER AIR CONTROL Fits: All A2 models, plus M1123	1	We can source it
4	Instruction Plate NSN 9905-01-203-9994 · P/N 12339100 PLATE,INSTRUCTION HEATER AIR CONTROL Fits: All A0 and A1 models, plus M1121	1	3 in stock
5	Instruction Plate NSN 9905-01-193-4065 · P/N 12339106 PLATE,INSTRUCTION SEAT BELT RETRACTOR,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	4	We can source it
6	Decal NSN 7690-01-291-2974 · P/N 5597689 DECAL TIEDOWN DATA Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Instruction Plate NSN 9905-01-433-8554 · P/N 12460205 PLATE,INSTRUCTION TIEDOWN DATA Fits: All A2 models, plus M1123	1	We can source it
7	Instruction Plate NSN 9905-01-248-7657 · P/N 12339111 PLATE,INSTRUCTION SERVICE DATA Fits: All A0 and A1 models, plus M1121	1	1 in stock
7	Identification Marker NSN 7690-01-476-6101 · P/N 12460157 DECAL SERVICE DATA Fits: All A2 models, plus M1123	1	We can source it
8	Instruction Plate NSN 9905-01-224-5860 · P/N 12339080 PLATE,INSTRUCTION OPERATING INSTRUCTION Fits: All A0 models, plus M1121	1	1 in stock
8	Instruction Plate NSN 9905-01-393-3794 · P/N 12343058 PLATE,INSTRUCTION OPERATING INSTRUCTIONS Fits: All A1 models	1	We can source it
8	Identification Marker NSN 7690-01-476-6507 · P/N 12460156 DECAL OPERATING INSTRUCTION Fits: All A2 models, plus M1123	1	We can source it
9	Identification Plate NSN 9905-01-204-7776 · P/N 12340910 PLATE,IDENTIFICATIO FIRE EXTINGUISHER Fits: All models	1	We can source it
10	Identification Marker NSN 7690-01-476-6510 · P/N 12447003 DECAL Fits: All A2 models, plus M1123	1	1 in stock
10	Instruction Plate NSN 9905-01-203-9992 · P/N 12338470 PLATE,INSTRUCTION Fits: All A0 and A1 models, plus M1121	1	3 in stock
11	Machine Screw NSN 5305-00-984-6191 · P/N MS35206-243 SCREW,MACHINE #8-32 X 3/8 Fits: All models	2	180 in stock
12	Identification Plate NSN 9905-01-364-7342 · P/N 12342652 PLATE,IDENTIFICATIO NAME PLATE M1097 Fits: M1097	1	We can source it $25–$40 eachtypical
12	Identification Plate NSN 9905-01-185-3129 · P/N 12340868 PLATE,IDENTIFICATIO NAME PLATE M998 Fits: M998	1	2 in stock
12	Identification Plate NSN 9905-01-185-3131 · P/N 12339085 PLATE,IDENTIFICATIO NAME PLATE M996 Fits: M996	1	We can source it
12	Identification Plate NSN 9905-01-185-3132 · P/N 12339077 PLATE,IDENTIFICATIO NAME PLATE M997 Fits: M997	1	We can source it $95–$160 eachtypical
12	Identification Plate NSN 9905-01-185-3134 · P/N 12339082 PLATE,IDENTIFICATIO NAME PLATE M966 Fits: M966	1	We can source it
12	Identification Plate NSN 9905-01-186-3253 · P/N 12339110 PLATE,IDENTIFICATIO Fits: M1025	1	We can source it
12	Identification Plate NSN 9905-01-186-3255 · P/N 12339090 PLATE,IDENTIFICATIO NAME PLATE M1026 Fits: M1026	1	We can source it
12	Identification Plate NSN 9905-01-185-7972 · P/N 12339095 PLATE,IDENTIFICATIO NAME PLATE M1035 Fits: M1035	1	We can source it $70–$120 eachtypical
12	Identification Plate NSN 9905-01-186-3259 · P/N 12339104 PLATE,IDENTIFICATIO NAME PLATE M1037 Fits: M1037	1	We can source it $206.40 per eachgov't list price
12	Identification Plate NSN 9905-01-190-8425 · P/N 12340867 PLATE,IDENTIFICATIO NAME PLATE M1038 Fits: M1038	1	We can source it
12	Identification Plate NSN 9905-01-190-8427 · P/N 12341812 PLATE,IDENTIFICATIO NAME PLATE M1042 Fits: M1042	1	We can source it
12	Identification Plate NSN 9905-01-185-3138 · P/N 12339076 PLATE,IDENTIFICATIO NAME PLATE, M1045 Fits: M1045	1	We can source it
12	Identification Plate NSN 9905-01-185-3139 · P/N 12339099 PLATE,IDENTIFICATIO NAME PLATE M1043 Fits: M1043	1	We can source it
12	Identification Plate NSN 9905-01-185-7973 · P/N 12339091 PLATE,IDENTIFICATIO NAME PLATE M1044 Fits: M1044	1	We can source it
12	Identification Plate NSN 9905-01-185-7975 · P/N 12339096 PLATE,IDENTIFICATIO NAME PLATE M1046 Fits: M1046	1	We can source it
12	Identification Plate NSN 9905-01-385-2639 · P/N 12343020 PLATE,IDENTIFICATIO NAME PLATE M1097A1 Fits: M1097A1	1	97 in stock
12	Identification Plate NSN 9905-01-387-2761 · P/N 12342986 PLATE,IDENTIFICATIO NAME PLATE M966A1 Fits: M966A1	1	We can source it
12	Identification Plate NSN 9905-01-384-5311 · P/N 12342981 PLATE,IDENTIFICATIO NAME PLATE M998A1 Fits: M998A1	1	We can source it
12	Identification Plate NSN 9905-01-387-2762 · P/N 12343044 PLATE,IDENTIFICATIO NAME PLATE M1038A1 Fits: M1038A1	1	We can source it
12	Identification Plate NSN 9905-01-387-1145 · P/N 12343010 PLATE,IDENTIFICATIO NAME PLATE M997A1 Fits: M997A1	1	We can source it $25–$40 eachtypical
12	Identification Plate NSN 9905-01-393-5622 · P/N 12343002 PLATE,IDENTIFICATIO NAME PLATE M1035A1 Fits: M1035A1	1	We can source it
12	Identification Plate NSN 9905-01-387-2752 · P/N 12342995 PLATE,IDENTIFICATIO NAME PLATE M1045A1 Fits: All models	1	We can source it
12	Identification Plate NSN 9905-01-393-9357 · P/N 12342997 PLATE,IDENTIFICATIO NAME PLATE M1043A1 Fits: M1043A1	1	We can source it
12	Identification Plate NSN 9905-01-393-5623 · P/N 12343050 PLATE,IDENTIFICATIO NAME PLATE M1044A1 Fits: M1044A1	1	We can source it $102.56 per eachgov't list price
12	Identification Plate NSN 9905-01-387-1146 · P/N 12343046 PLATE,IDENTIFICATIO NAME PLATE M1046A1 Fits: M1046A1	1	We can source it
12	Identification Plate NSN 9905-01-387-2746 · P/N 12343023 PLATE,IDENTIFICATIO NAME PLATE M996A1 Fits: M996A1	1	We can source it
12	Identification Plate NSN 9905-01-397-6974 · P/N 12342992 PLATE,IDENTIFICATIO NAME PLATE M1025A1 Fits: M1025A1	1	We can source it
12	Identification Plate NSN 9905-01-385-2633 · P/N 12343041 PLATE,IDENTIFICATIO NAME PLATE M1026A1 Fits: M1026A1	1	We can source it
12	Decal NSN 7690-01-458-8254 · P/N 12446780 DECAL NAME PLATE M1097A2 Fits: M1097A2	1	We can source it
12	Decal NSN 7690-01-450-5481 · P/N 12446798 DECAL NAME PLATE M997A2 Fits: M997A2	1	We can source it $225.75 per eachgov't list price
12	Plate NSN 9905-01-446-5770 · P/N 12446792 PLATE,IDENTIFICATIO NAME PLATE M1035A2 Fits: M1035A2	1	We can source it
12	Plate NSN 9905-01-448-9786 · P/N 12446789 PLATE,IDENTIFICATIO NAME PLATE M1045A2 Fits: M1045A2	1	We can source it
12	Plate NSN 9905-01-447-7799 · P/N 12446786 PLATE,IDENTIFICATIO NAME PLATE M1043A2 Fits: M1043A2	1	We can source it
12	Identification Plate NSN 9905-01-446-5769 · P/N 12446783 PLATE,IDENTIFICATIO NAME PLATE M1025A2 Fits: M1025A2	1	We can source it
12	Decal NSN 7690-01-476-2855 · P/N EX5061 DECAL NAME PLATE M1123 Fits: M1123	1	We can source it $35–$75 eachtypical
12	Decal NSN 7690-01-481-4908 · P/N 12469101 DECAL Fits: M1121	1	We can source it
13	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND 1/8 DIA.,.126-.187 GRIP Fits: All models	4	641 in stock
14	Decal NSN 7690-01-382-8471 · P/N 12343054 DECAL DRIVER SEAT ADJUSTMENT Fits: All A1 and A2 models, plus M1123	1	We can source it
14	Instruction Plate NSN 9905-01-203-9995 · P/N 12339101 PLATE,INSTRUCTION DRIVER SEAT ADJUSTMENT Fits: All A0 models, plus M1121	1	60 in stock
15	Identification Plate NSN 9905-01-205-8635 · P/N 12339109 PLATE,IDENTIFICATIO DEEP WATER FORDING Fits: All models	1	38 in stock
16	Decal NSN 7690-01-476-2842 · P/N EX5079 DECAL BARCODE M1123 Fits: M1123	1	We can source it quote only
17	Instruction Plate NSN 9905-01-203-9996 · P/N 12338475 PLATE,INSTRUCTION IGNITION Fits: All A0 and A2 models, plus M966A1, M998A1, M1035A1, M1045A1, M1097A1, M1121 and 1 more	1	68 in stock
18	Decal NSN 7690-01-204-0076 · P/N 12339063 DECAL RIFLE,M16 Fits: M966, M966A1, M1043, M1043A1, M1044, M1044A1 and 5 more	2	1 in stock
19	Instruction Plate NSN 9905-01-249-1612 · P/N 12340027 PLATE,INSTRUCTION NEUTRAL START Fits: All A0 and A1 models, plus M1121	1	We can source it
20	Instruction Plate NSN 9905-01-185-7977 · P/N 12339105 PLATE,INSTRUCTION STEERING WHEEL LOCKING DEVICE Fits: All models	1	235 in stock
21	Decal NSN 7690-01-256-4908 · P/N 12340652 DECAL SPEEDOMETER Fits: All models	1	1 in stock
22	Decal NSN 7690-01-256-4909 · P/N 12340917 DECAL HAND THROTTLE CONTROL Fits: All models	1	84 in stock
