HMMWV Data Plates, Winch TM 9-2320-280-24P · Fig. 358

Every part in figure 358 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2210 Data Plates and Instruction Holders: 5 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

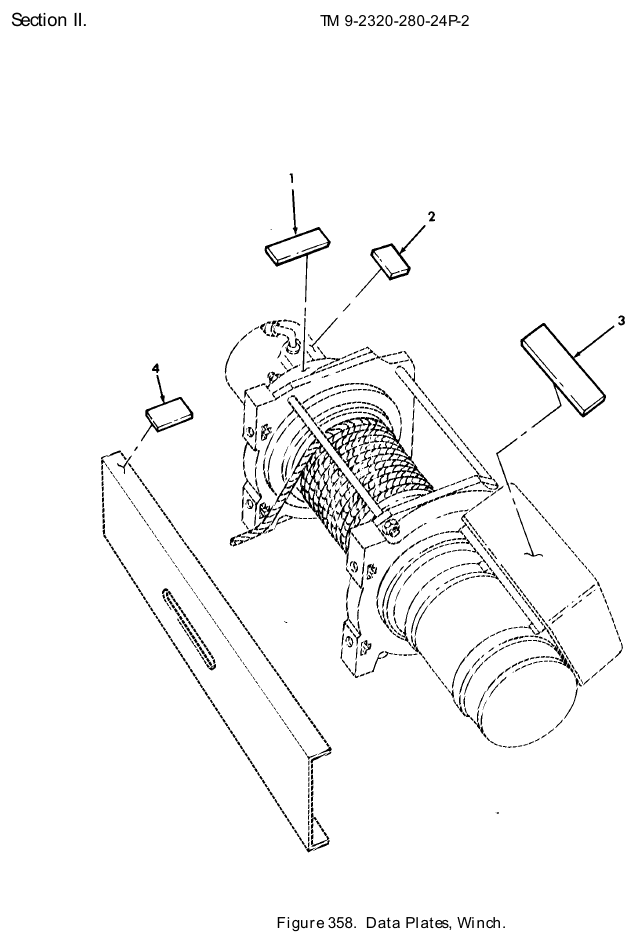

TM 9-2320-280-24P figure 358, Data Plates, Winch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Identification Marker NSN 7690-01-185-3208 · P/N 15657 MARKER,IDENTIFICATI Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
2	Instruction Plate NSN 9905-01-185-3127 · P/N 15873 PLATE,INSTRUCTION Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
3	Instruction Plate NSN 9905-01-185-3207 · P/N 13698 PLATE,INSTRUCTION Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	We can source it
4	Decal Winch Operation NSN 7690-01-264-6536 · P/N 12340923 DECAL WINCH OPERATION, USBL EFF 1 THRU 99,999 Fits: M1026, M1038, M1042, M1044, M1046	1	We can source it
4	Identification Marker NSN 7690-01-350-2094 · P/N 12342439 MARKER,IDENTIFICATI WARNING,WINCH OPERATION USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	28 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
