HMMWV Data Plates, Generator, Transfer Case, and Engine Container TM 9-2320-280-24P · Fig. 357

Every part in figure 357 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2210 Data Plates and Instruction Holders: 8 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

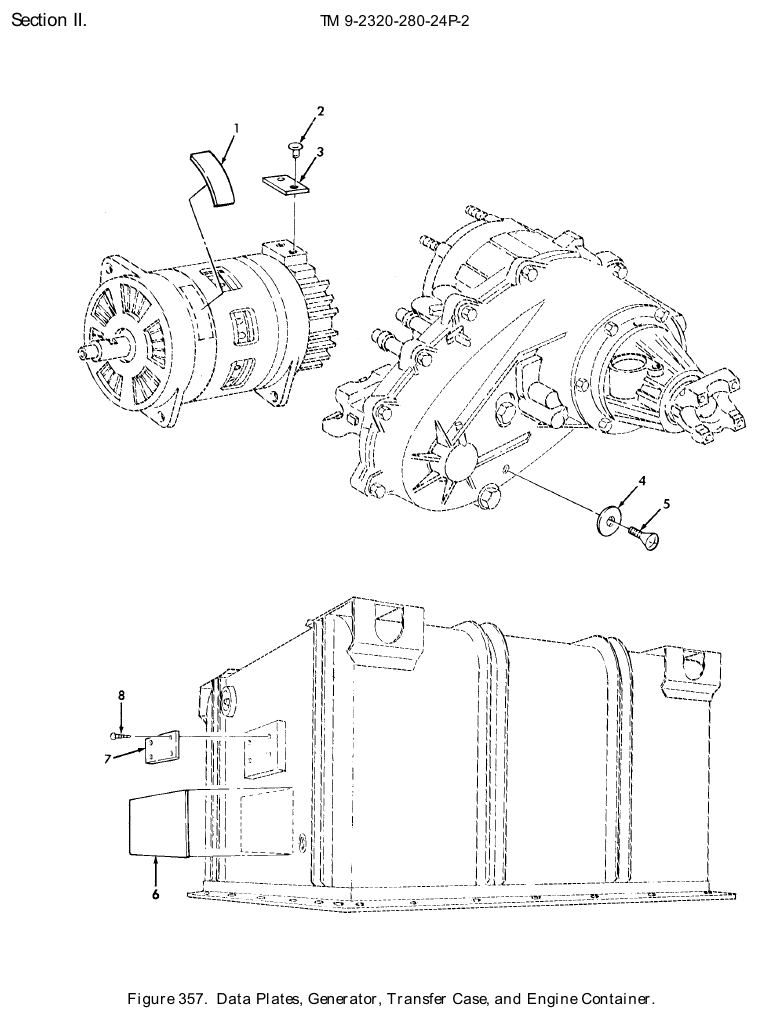

TM 9-2320-280-24P figure 357, Data Plates, Generator, Transfer Case, and Engine Container: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Decal NSN 7690-01-197-5500 · P/N 12339064 DECAL FAN SHROUD Fits: All models	1	1 in stock
2	Blind Rivet NSN 5320-00-957-2500 · P/N MS20604B4W1 RIVET,BLIND 1/8 DIA.,.015-.062 GRIP Fits: All models	2	We can source it
3	Instruction Plate NSN 9905-01-181-9456 · P/N 11630585 PLATE,INSTRUCTION Fits: All models	1	We can source it
4	Identification Plate NSN 9905-01-158-7981 · P/N 5741083 PLATE,IDENTIFICATIO TRANSFER CASE Fits: All models	1	We can source it
5	Cap Hexagon Head Screw NSN 5305-01-211-7415 · P/N 5741084 SCREW,CAP,HEXAGON H #10-32 X 1/4 Fits: All models	1	We can source it
6	Decal NSN 7690-01-281-8341 · P/N 12338072 DECAL ENGINE CONTAINER Fits: All models	1	We can source it
7	Identification Plate NSN 9905-00-901-2942 · P/N 7973326 PLATE,IDENTIFICATIO ENGINE CONTAINER Fits: All models	1	We can source it
8	Drive Screw NSN 5305-00-253-5627 · P/N MS21318-48 SCREW,DRIVE #10-8 X 5/8 Fits: All models	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
