HMMWV Data Plates and Identification Tags, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 362

Every part in figure 362 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2210 Data Plates and Instruction Holders: 5 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

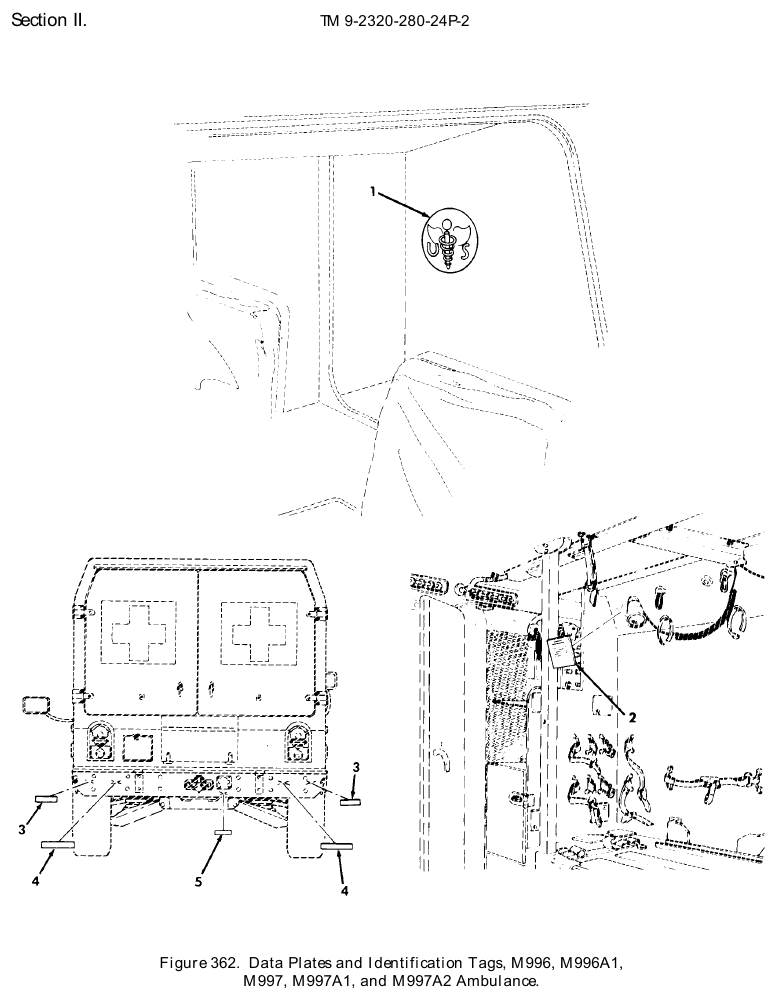

TM 9-2320-280-24P figure 362, Data Plates and Identification Tags, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Decal NSN 7690-00-138-5788 · P/N 11644801 DECAL ARMY MEDICAL SERVICE INSIGNIA Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $101.91 per eachgov't list price
2	Instruction Plate NSN 9905-01-266-3913 · P/N 12341757 PLATE,INSTRUCTION HEATER AND VENT OPERATING INSTRUCTIONS Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
3	Decal NSN 7690-01-265-1133 · P/N 12339057 DECAL SLING Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
4	Decal NSN 7690-01-265-1134 · P/N 12339059 DECAL TIEDOWN Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
5	Decal NSN 7690-01-265-1135 · P/N 12339060 DECAL 24 VOLTS Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
