HMMWV Engine Shipping Container Assembly TM 9-2320-280-24P · Fig. 363

Every part in figure 363 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 33 Special Purpose Kits: 28 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

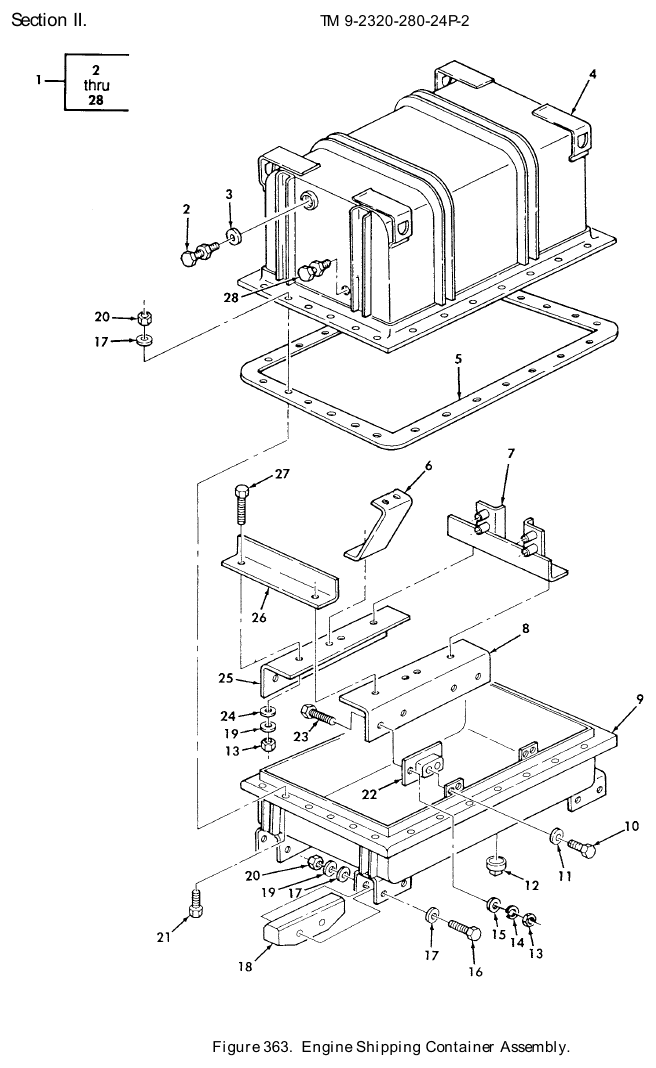

TM 9-2320-280-24P figure 363, Engine Shipping Container Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	E Shipping and Storage Container NSN 8145-01-231-3747 · P/N 12338064 SHIPPING AND STORAG CONTAINER, ENGINE Fits: All models	1	We can source it $1,755.00 per eachgov't list price
2	Breather NSN 2520-01-268-1051 · P/N 12338078 BREATHER Fits: All models	1	We can source it $65–$110 eachtypical
3	Valve NSN 4820-01-005-2994 · P/N 330-10-10R VALVE,PRESSURE EQUA Fits: All models	1	We can source it
4	Upper Container P/N 12338066 CONTAINER,UPPER Fits: All models	1	Ask us
5	Rubber Round Section NSN 5330-01-264-6537 · P/N 12338073 RUBBER ROUND SECTIO CONTAINER ASSEMBLY Fits: All models	1	We can source it $35–$70 eachtypical
6	Double Angle Bracket NSN 5340-01-264-6544 · P/N 12338068 BRACKET,DOUBLE ANGL ENGINE SUPPORT Fits: All models	2	143 in stock $40–$75 eachtypical
7	Mounting Bracket NSN 5340-01-271-3059 · P/N 12338067 BRACKET,MOUNTING ENGINE SUPPORT Fits: All models	1	We can source it $80–$135 eachtypical
8	Angle Bracket NSN 5340-01-264-6540 · P/N 12338074 BRACKET,ANGLE LEFT Fits: All models	1	46 in stock $35–$70 eachtypical
9	Lower Container P/N 12338065 CONTAINER,LOWER Fits: All models	1	Ask us
10	Cap Hexagon Head Screw NSN 5305-00-269-3233 · P/N B1821BH038F063N SCREW,CAP,HEXAGON H 3/8-24 X 5/8 Fits: All models	8	We can source it
11	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All models	8	1,162 in stock
12	Pipe Plug NSN 4730-00-221-2140 · P/N MS20913-6S PLUG,PIPE 3/4-14 Fits: All models	1	200 in stock $48.99our price Buy online ↗
13	Plain Hexagon Nut NSN 5310-00-880-7744 · P/N MS51967-5 NUT,PLAIN,HEXAGON 5/16-18 Fits: All models	8	1,817 in stock
14	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: All models	8	2,036 in stock
15	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 11/32 Fits: All models	8	1,368 in stock
16	Cap Hexagon Head Screw NSN 5305-00-071-2083 · P/N B1821BH050C500N SCREW,CAP,HEXAGON H 1/2-13 X 5.00 Fits: All models	8	We can source it
17	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 17/32 Fits: All models	42	428 in stock $27.99our price Buy online ↗
18	Runner NSN 5340-01-265-3676 · P/N 12338071 RUNNER,METAL Fits: All models	4	We can source it $25–$55 eachtypical
19	Lock Washer NSN 5310-00-584-5272 · P/N MS35338-48 WASHER,LOCK 1/2 Fits: All models	16	833 in stock
20	Plain Hexagon Nut NSN 5310-00-768-0318 · P/N 01857-007 NUT,PLAIN,HEXAGON 1/2-13 Fits: All models	42	194 in stock
21	Cap Hexagon Head Screw NSN 5305-00-732-0511 · P/N B1821BH050C113N SCREW,CAP,HEXAGON H 1/2-13 X 1-1/8 Fits: All models	26	252 in stock
22	Resilient Weapon System Mount NSN 5342-01-264-6543 · P/N 12338070 MOUNT,RESILIENT Fits: All models	4	2,356 in stock $43.85our price Buy online ↗
23	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1-1/8 Fits: All models	8	84,127 in stock
24	Flat Washer NSN 5310-00-809-3079 · P/N MS27183-19 WASHER,FLAT 9/16 Fits: All models	8	4,387 in stock
25	Angle Bracket NSN 5340-01-264-6541 · P/N 12338075 BRACKET,ANGLE Fits: All models	1	We can source it $199.22 per eachgov't list price
26	Angle Bracket NSN 5340-01-265-3674 · P/N 12338076 BRACKET,ANGLE Fits: All models	1	12 in stock $30–$60 eachtypical
27	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H 1/2-13 X 1-1/2 Fits: All models	8	2,205 in stock
28	Humidity Plug Indicator NSN 6685-00-618-1822 · P/N SK2155 INDICATOR,HUMIDITY Fits: All models	1	34 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
