HMMWV Arctic Kit, Control Box Assembly TM 9-2320-280-24P · Fig. 367

Every part in figure 367 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 16 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

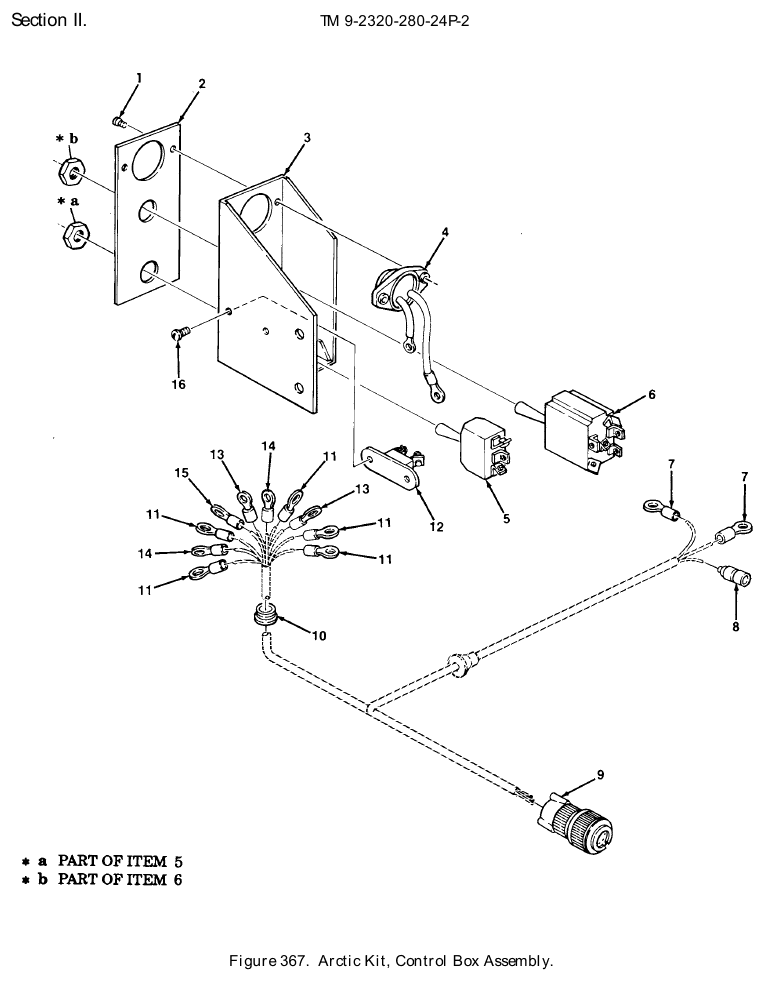

TM 9-2320-280-24P figure 367, Arctic Kit, Control Box Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tapping Screw NSN 5305-01-138-9540 · P/N MS51863-33 SCREW,TAPPING #8-32 X 3/8 Fits: All A0 and A1 models, plus M1121	2	We can source it
2	Identification Plate NSN 9905-01-199-2371 · P/N 12340442 PLATE,IDENTIFICATIO Fits: All A0 and A1 models, plus M1121	1	We can source it
3	Control Box P/N 5590544 CONTROL BOX Fits: All A0 and A1 models, plus M1121	1	Ask us
4	Indicator Light NSN 6210-01-203-2101 · P/N 12340466 LIGHT,INDICATOR Fits: All A0 and A1 models, plus M1121	1	We can source it $104.73 per eachgov't list price
5	Toggle Switch NSN 5930-00-655-1514 · P/N MS35058-22 SWITCH,TOGGLE Fits: All A0 and A1 models, plus M1121	1	14 in stock quote only $30–$70 eachtypical
6	Toggle Switch NSN 5930-00-615-7897 · P/N MS35059-31 SWITCH,TOGGLE Fits: All A0 and A1 models, plus M1121	1	We can source it $55–$105 eachtypical
7	Lug Terminal NSN 5940-00-113-9821 · P/N MS20659-166 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	2	We can source it
8	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	35 in stock
9	Plug Electrical Connector NSN 5935-01-035-5139 · P/N MS3456W18-11S CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	We can source it $50–$100 eachtypical
10	Nonmetallic Grommet NSN 5325-00-281-1557 · P/N G1895 GROMMET,NONMETALLIC Fits: All A0 and A1 models, plus M1121	1	38 in stock
11	Lug Terminal NSN 5940-00-283-5280 · P/N MS25036-106 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	5	20 in stock $9.69our price Buy online ↗
12	Circuit Breaker NSN 5925-01-373-1034 · P/N PSA-25 CIRCUIT BREAKER Fits: All A0 and A1 models, plus M1121	1	We can source it $156.64 per eachgov't list price
13	Lug Terminal NSN 5940-00-204-8990 · P/N MS25036-111 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	2	100 in stock
14	Lug Terminal NSN 5940-00-143-4775 · P/N MS25036-156 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	2	100 in stock
15	Lug Terminal NSN 5940-00-143-4774 · P/N MS25036-153 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	200 in stock
16	Machine Screw NSN 5305-00-984-4988 · P/N MS35206-228 SCREW,MACHINE #6-32 X 3/8 Fits: All A0 and A1 models, plus M1121	2	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
