HMMWV Arctic Kit, Control Box, Gas Cap, Fuel Pump, and Fuel Lines TM 9-2320-280-24P · Fig. 366

Every part in figure 366 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 39 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

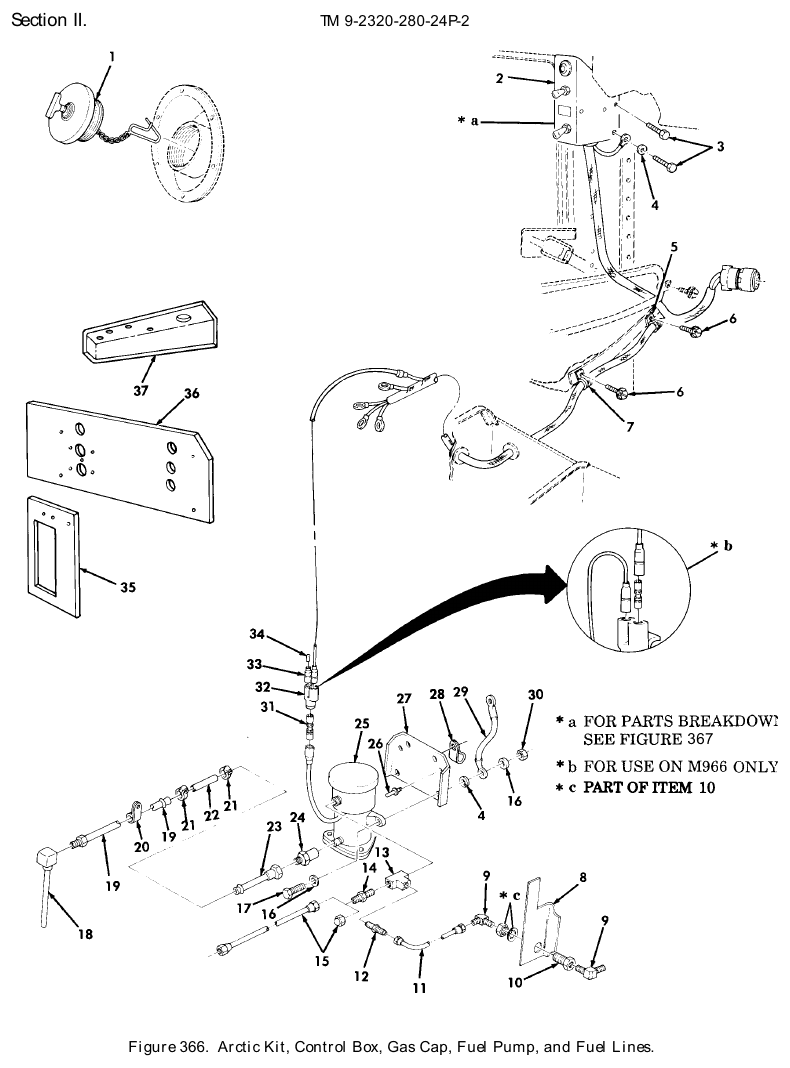

TM 9-2320-280-24P figure 366, Arctic Kit, Control Box, Gas Cap, Fuel Pump, and Fuel Lines: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Filler Opening Cap NSN 5340-01-254-1498 · P/N 12338558-2 CAP,FILLER OPENING PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	1 in stock $520.46 per eachgov't list price
2	Electrical Vehicular Control Box NSN 2540-01-199-2396 · P/N 12340436 CONTROL BOX PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $2,904.56 per eachgov't list price
3	Tapping Screw NSN 5305-01-084-6067 · P/N MS51871-1 SCREW,TAPPING 1/4-20 X 1/2 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	We can source it
4	Lock Washer NSN 5310-00-550-1130 · P/N MS35333-40 WASHER,LOCK 1/4 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	2,548 in stock $6.85our price Buy online ↗
5	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	19 in stock
6	Machine Screw NSN 5305-01-433-9248 · P/N 9414295 SCREW,MACHINE #10-32 X 1/2 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	We can source it
7	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	5 in stock
8	Template P/N 12340702 TEMPLATE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	Ask us
9	Pipe to Tube Elbow NSN 4730-01-456-5446 · P/N 15670396 ELBOW,PIPE TO TUBE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	We can source it
10	Pipe Coupling NSN 4730-00-897-5497 · P/N W21204 COUPLING,PIPE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
11	Metal Tube Assembly NSN 4710-01-395-3982 · P/N 12342605 TUBE ASSEMBLY,METAL ARCTIC FUEL LINE, PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$65 eachtypical
12	Straight Pipe to Tube Adapter NSN 4730-00-266-0536 · P/N 110200 ADAPTER,STRAIGHT,PI ARCTIC FUEL PUMP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	6 in stock
13	Pipe Tee NSN 4730-00-471-3102 · P/N 4-4-4 130438B TEE,PIPE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	1 in stock
14	Straight Pipe to Tube Adapter NSN 4730-00-266-0538 · P/N 1295 ADAPTER,STRAIGHT,PI PART OF KIT P/N 5705698 Fits: M996, M996A1, M997, M997A1	1	We can source it $25–$40 eachtypical
14	Straight Pipe to Tube Adapter NSN 4730-00-266-0536 · P/N 110200 ADAPTER,STRAIGHT,PI PART OF KIT P/N 5705698 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	6 in stock
15	Metal Tube Assembly NSN 4710-01-394-6169 · P/N 12342606 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705698 Fits: M996, M996A1, M997, M997A1	1	We can source it $506.19 per eachgov't list price
15	Tube Cap NSN 4730-00-260-8285 · P/N 5 010112B(N5) CAP,TUBE PART OF KIT P/N 5705698 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
16	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All A0 and A1 models, plus M1121	4	2,325 in stock
17	Cap Hexagon Head Screw NSN 5305-00-225-3842 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	440 in stock
18	Metal Tube Assembly NSN 4710-01-359-2956 · P/N 12338548-2 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	94 in stock $25–$55 eachtypical
19	Metal Tube Assembly NSN 4710-01-203-0607 · P/N 5588694 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $60–$100 per assemblytypical
20	Loop Clamp NSN 5340-00-993-6207 · P/N MS21333-99 CLAMP,LOOP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
21	Hose Clamp NSN 4730-00-024-3971 · P/N 6706 CLAMP,HOSE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	2	6 in stock
22	Nonmetallic Make From Hose Hose P/N 12338553-1 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 9438315,2.80 INCHES LONG PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	Ask us
23	Metal Tube Assembly NSN 4710-01-203-0608 · P/N 12338564 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
24	Straight Pipe to Tube Adapter NSN 4730-00-277-6347 · P/N 246X5X4 ADAPTER,STRAIGHT,PI PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it
25	Fuel Electrical Pump NSN 2910-00-930-9367 · P/N 2590174 PUMP,FUEL,ELECTRICA PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	98 in stock $329.81 per eachgov't list price
26	Blind Rivet NSN 5320-01-135-7319 · P/N NAS9301BNS-6-03 RIVET,BLIND PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	4	72 in stock
27	Double Angle Bracket NSN 5340-01-204-3903 · P/N 12338559 BRACKET,DOUBLE ANGL PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$65 eachtypical
28	Loop Clamp NSN 5340-00-282-7537 · P/N MS21333-41 CLAMP,LOOP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	4 in stock
29	Electrical Lead NSN 6150-01-260-8000 · P/N 12340489 LEAD,ELECTRICAL PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$65 eachtypical
30	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A0 and A1 models, plus M1121	2	626 in stock
31	Connector Adapter NSN 5935-00-807-4109 · P/N 8741492 ADAPTER,CONNECTOR PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	20 in stock
32	Connector Adapter NSN 5935-00-900-6281 · P/N MS27147-1 ADAPTER,CONNECTOR PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	65 in stock
33	Electrical Connector Shell NSN 5935-00-833-8561 · P/N 8338561 SHELL,ELECTRICAL CO PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	218 in stock
34	Plug Dummy Connector NSN 5935-00-214-0904 · P/N 7982907 DUMMY CONNECTOR,PLU PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	123 in stock
35	Template P/N 12340703 TEMPLATE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	Ask us
36	Template P/N 12340704 TEMPLATE PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	Ask us
37	Fuel Pump Template P/N 12340696 TEMPLATE,FUEL PUMP PART OF KIT P/N 5705698 Fits: All A0 and A1 models, plus M1121	1	Ask us
